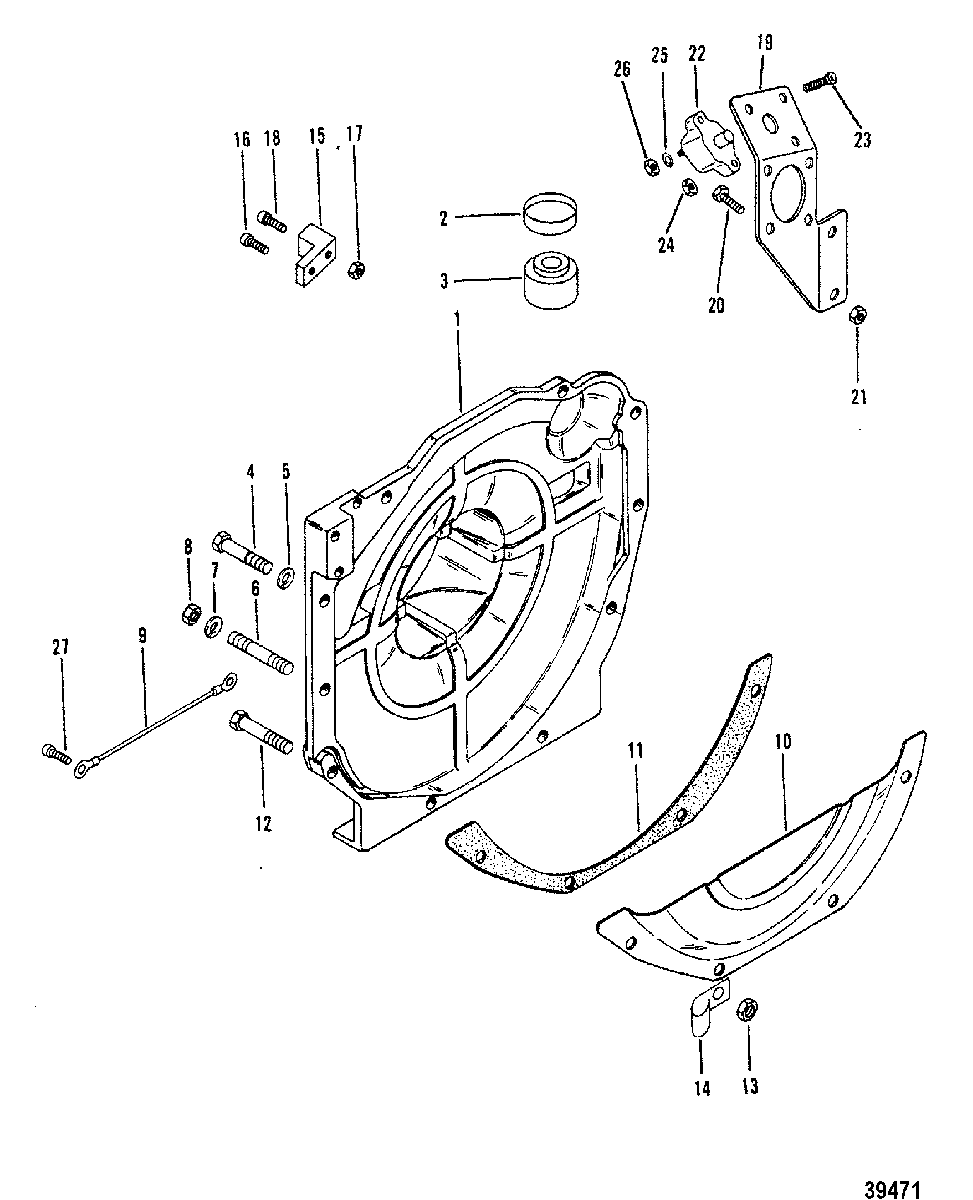

FLYWHEEL HOUSING для Mercruiser - 3.7LX (4 BBL.) MERCURY 224 I/L4 1988-1989 0B775249 & Up

  • №
    Артикул
    Название
  • 1
    94985A2 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    23-99322 SPACER, RUBBER MOUNT
    SPACER, RUBBER MOUNT
  • 3
    12619 MOUNT, RUBBER
    MOUNT, RUBBER
  • 4
    10-37612 SCREW, (.375-16 x 1.250), FLYWHEEL HOUSING
    SCREW, (.375-16 x 1.250), FLYWHEEL HOUSING
  • 5
    13-35048 LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW
    LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW
  • 6
    16-861316 STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING
    STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING
  • 7
    13-35048 LOCKWASHER, (.375), FLYWHEEL HOUSING STUD
    LOCKWASHER, (.375), FLYWHEEL HOUSING STUD
  • 8
    11-32219 NUT, (.375-16), FLYWHEEL HOUSING STUD
    NUT, (.375-16), FLYWHEEL HOUSING STUD
  • 9
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black, FLYWHEEL HOUSING STUD
    CABLE ASSEMBLY, Ground (13.00 Inches) Black, FLYWHEEL HOUSING STUD
  • 10
    95026A2 COVER, FLYWHEEL HOUSING
    COVER, FLYWHEEL HOUSING
  • 11
    27-94976 GASKET, FLYWHEEL HOUSING COVER
    GASKET, FLYWHEEL HOUSING COVER
  • 12
    10-26065 SCREW, (.312-24 x 1.00)
    SCREW, (.312-24 x 1.00)
  • 13
    11-29250 NUT, (.312-24), COVER TO FLYWHEEL HOUSING AND CLAMP SCREW
    NUT, (.312-24), COVER TO FLYWHEEL HOUSING AND CLAMP SCREW
  • 14
    54-61001 J CLIP, SHIFT CABLE ATTACHING
    J CLIP, SHIFT CABLE ATTACHING
  • 15
    86-45915 TERMINAL BLOCK
    Use where Applicable
    TERMINAL BLOCK
    Use where Applicable
  • 16
    10-20189 SCREW, (.190-32 x .75), TERMINAL BLOCK
    Use where Applicable
    SCREW, (.190-32 x .75), TERMINAL BLOCK
    Use where Applicable
  • 17
    11-27164 NUT AND LOCKWASHER, (#10-32), TERMINAL BLOCK SCREW
    Use where Applicable
    NUT AND LOCKWASHER, (#10-32), TERMINAL BLOCK SCREW
    Use where Applicable
  • 18
    10-62568 SCREW, (#10-16 x .375), LEAD ATTACHING
    Use where Applicable
    SCREW, (#10-16 x .375), LEAD ATTACHING
    Use where Applicable
  • 19
    43182 BRACKET, CIRCUIT BREAKER
    BRACKET, CIRCUIT BREAKER
  • 20
    10-78038 SCREW, (.250-20 x 1.75), CIRCUIT BREAKER BRACKET TO FLYWHEEL HOUSING
    SCREW, (.250-20 x 1.75), CIRCUIT BREAKER BRACKET TO FLYWHEEL HOUSING
  • 21
    11-8267088 NUT, (.250-20), CIRCUIT BREAKER BRACKET SCREW
    NUT, (.250-20), CIRCUIT BREAKER BRACKET SCREW
  • 22
    88-11178A01 BREAKER, Circuit - 50 Ampere (50 AMP)
    BREAKER, Circuit - 50 Ampere (50 AMP)
  • 23
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 24
    11-46438 NUT, (#10-32), CIRCUIT BREAKER SCREW
    NUT, (#10-32), CIRCUIT BREAKER SCREW
  • 25
    13-26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
  • 26
    11-68219 NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
    NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
  • 27
    10-85486 SCREW, (.250-20 x .380) Stainless Steel, GROUND WIRE TO TRANSOM PLATE
    SCREW, (.250-20 x .380) Stainless Steel, GROUND WIRE TO TRANSOM PLATE
  • -
    27-43186A1 GASKET SET
    GASKET SET
