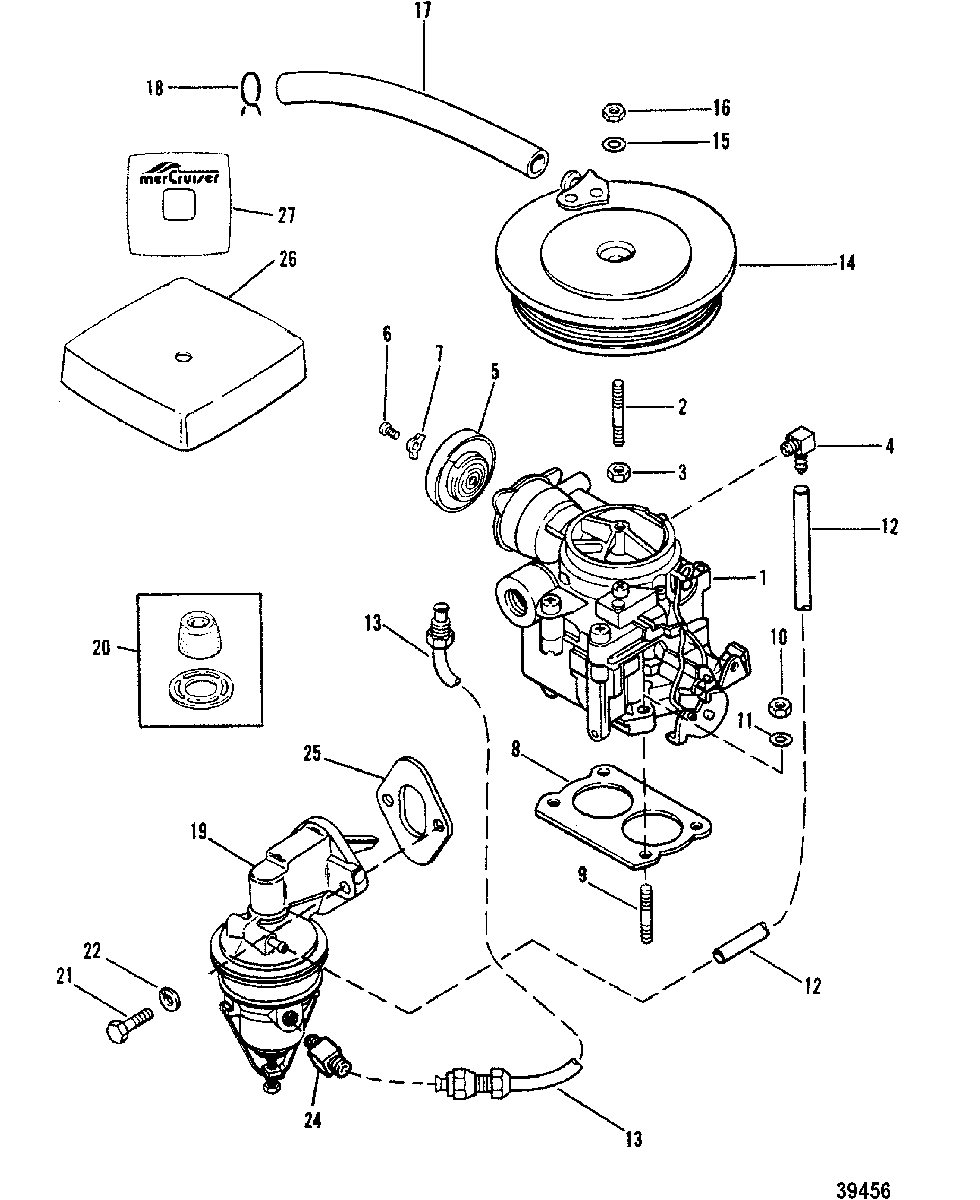

CARBURETOR AND FUEL PUMP(165-170-3.7L) для Mercruiser - 3.7LX (4 BBL.) MERCURY 224 I/L4 1988-1989 0B775249 & Up

  • №
    Артикул
    Название
  • 1
    3310-860071A2 CARBURETOR ASSEMBLY (MERCARB)
    CARBURETOR ASSEMBLY (MERCARB)
  • 2
    16-70878 STUD, (1/4 x 2.125), FLAME ARRESTOR (.250 x 2.125)
    OLD DESIGN
    STUD, (1/4 x 2.125), FLAME ARRESTOR (.250 x 2.125)
    OLD DESIGN
  • 2
    16-18020 STUD, FLAME ARRESTOR (.250-20 x 2.50)
    NEW DESIGN
    STUD, FLAME ARRESTOR (.250-20 x 2.50)
    NEW DESIGN
  • 3
    11-8267139 NUT, FLAME ARRESTOR STUD
    NUT, FLAME ARRESTOR STUD
  • 4
    22-54090 ELBOW, HOSE - CARBURETOR VENT
    ELBOW, HOSE - CARBURETOR VENT
  • 5
    70125A02 COVER, Choke-CARBURETOR
    COVER, Choke-CARBURETOR
  • 6
    10-33047 SCREW, COVER CLIP
    SCREW, COVER CLIP
  • 7
    54-33036 RETAINER, CARBURETOR COVER
    RETAINER, CARBURETOR COVER
  • 8
    27-8079821 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 9
    16-8M0113177 STUD, (.312 x 1.500), CARBURETOR
    STUD, (.312 x 1.500), CARBURETOR
  • 10
    11-862902 NUT, (.9375-24), CARBURETOR STUD
    NUT, (.9375-24), CARBURETOR STUD
  • 11
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 12
    32-7381567 HOSE, (34.00 Inches Bulk), VENT
    HOSE, (34.00 Inches Bulk), VENT
  • 13
    32-43187A3 LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 14
    805016A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 15
    12-86400 WASHER, FLAME ARRESTOR
    WASHER, FLAME ARRESTOR
  • 16
    11-826709109 NUT, (.250-28), FLAME ARRESTOR STUD
    NUT, (.250-28), FLAME ARRESTOR STUD
  • 17
    32-8M0062669 HOSE, FLAME ARRESTOR TO ROCKER COVER
    HOSE, FLAME ARRESTOR TO ROCKER COVER
  • 18
    54-53101 CLAMP, HOSE TO FLAME ARRESTOR
    CLAMP, HOSE TO FLAME ARRESTOR
  • 19
    8M0073435 PUMP ASSEMBLY, Fuel, Fuel
    PUMP ASSEMBLY, Fuel, Fuel
  • 20
    35-8M0046752 FILTER
    FILTER
  • 21
    10-31984 SCREW, (.312-18 x 1.375), FUEL PUMP
    SCREW, (.312-18 x 1.375), FUEL PUMP
  • 22
    13-39107 LOCKWASHER, (.312-24), FUEL PUMP SCREW
    LOCKWASHER, (.312-24), FUEL PUMP SCREW
  • 24
    22-42897 FITTING, STRAIGHT - FUEL PUMP
    FITTING, STRAIGHT - FUEL PUMP
  • 25
    27-8M0108647 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 26
    17878A5 COVER, Carburetor - FLAME ARRESTOR
    NEW DESIGN
    COVER, Carburetor - FLAME ARRESTOR
    NEW DESIGN
  • 27
    37-1372358 DECAL, COVER (3.7L)
    NEW DESIGN
    DECAL, COVER (3.7L)
    NEW DESIGN
  • -
    27-43186A1 GASKET SET
    GASKET SET
