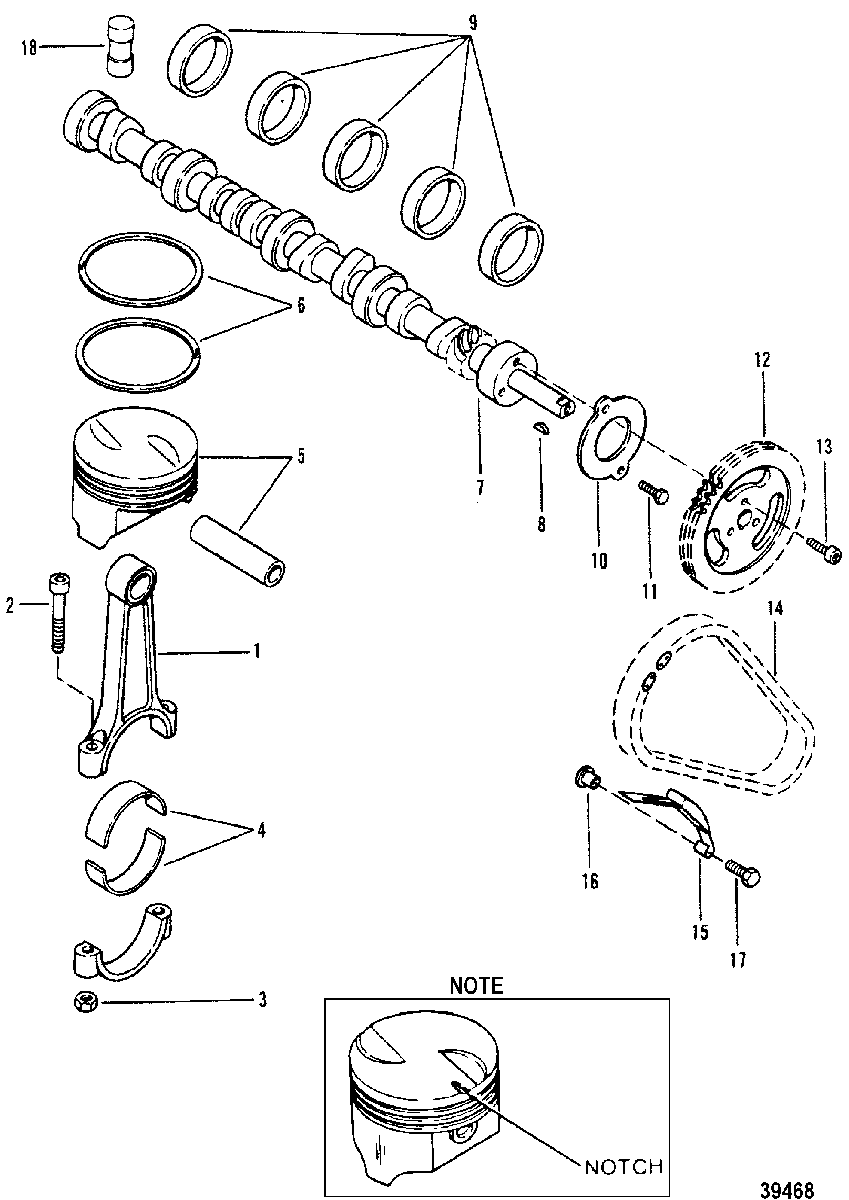

CAMSHAFT AND PISTON для Mercruiser - 3.7LX (4 BBL.) MERCURY 224 I/L4 1988-1989 0B775249 & Up

  • №
    Артикул
    Название
  • 1
    628-6100T2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 2
    10-75444 BOLT, CONNECTING ROD
    BOLT, CONNECTING ROD
  • 3
    11-64769 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 4
    23-853853002 BEARING ASSEMBLY, CONNECTING ROD
    STANDARD
    BEARING ASSEMBLY, CONNECTING ROD
    STANDARD
  • 4
    68704A2 BEARING ASSEMBLY, CONNECTING ROD
    (.002 UNDERSIZE)
    BEARING ASSEMBLY, CONNECTING ROD
    (.002 UNDERSIZE)
  • 4
    23-853855001 BEARING ASSEMBLY, CONNECTING ROD
    (.010 UNDERSIZE)
    BEARING ASSEMBLY, CONNECTING ROD
    (.010 UNDERSIZE)
  • 4
    23-853856001 BEARING ASSEMBLY, CONNECTING ROD
    (.020 UNDERSIZE)
    BEARING ASSEMBLY, CONNECTING ROD
    (.020 UNDERSIZE)
  • 5
    759-806661A7 PISTON
    STANDARD
    PISTON
    STANDARD
  • 5
    759-806661A4 PISTON, USE STANDARD RINGS
    (.005 OVERSIZE)
    PISTON, USE STANDARD RINGS
    (.005 OVERSIZE)
  • 5
    759-806661A8 PISTON
    (.030 OVERSIZE)
    PISTON
    (.030 OVERSIZE)
  • 5
    759-806661A7 PISTON ASSEMBLY
    STANDARD
    PISTON ASSEMBLY
    STANDARD
  • 5
    759-806661A4 PISTON ASSEMBLY, USE STANDARD RINGS
    (.005 OVERSIZE)
    PISTON ASSEMBLY, USE STANDARD RINGS
    (.005 OVERSIZE)
  • 5
    759-806661A8 PISTON ASSEMBLY
    (.030 OVERSIZE)
    PISTON ASSEMBLY
    (.030 OVERSIZE)
  • 6
    39-74381A1 RING, PISTON
    STANDARD
    RING, PISTON
    STANDARD
  • 6
    39-75423 RING, PISTON
    (.030 OVERSIZE)
    RING, PISTON
    (.030 OVERSIZE)
  • 7
    400-8M0122295 CAMSHAFT
    CAMSHAFT
  • 8
    28-86466 KEY, CAMSHAFT
    KEY, CAMSHAFT
  • 9
    23-67484T BEARING, SAMSHAFT
    BEARING, SAMSHAFT
  • 10
    67492 THRUST PLATE, CAMSHAFT
    THRUST PLATE, CAMSHAFT
  • 11
    10-49668 SCREW, (.250-20 x .750), THRUST PLATE
    SCREW, (.250-20 x .750), THRUST PLATE
  • 12
    864611 SPROCKET, CAMSHAFT
    SPROCKET, CAMSHAFT
  • 13
    10-70084 SCREW, (.250-20 x 1.00), SPROCKET TO CAMSHAFT
    SCREW, (.250-20 x 1.00), SPROCKET TO CAMSHAFT
  • 14
    68717A1 CHAIN, TIMING
    CHAIN, TIMING
  • 15
    75202 TENSIONER, CHAIN
    TENSIONER, CHAIN
  • 16
    23-75087 BUSHING, CHAIN TENSIONER
    BUSHING, CHAIN TENSIONER
  • 17
    10-881892 SCREW, (.312-18 x 1.750), TENSIONER
    SCREW, (.312-18 x 1.750), TENSIONER
  • 18
    56153 TAPPET
    TAPPET
