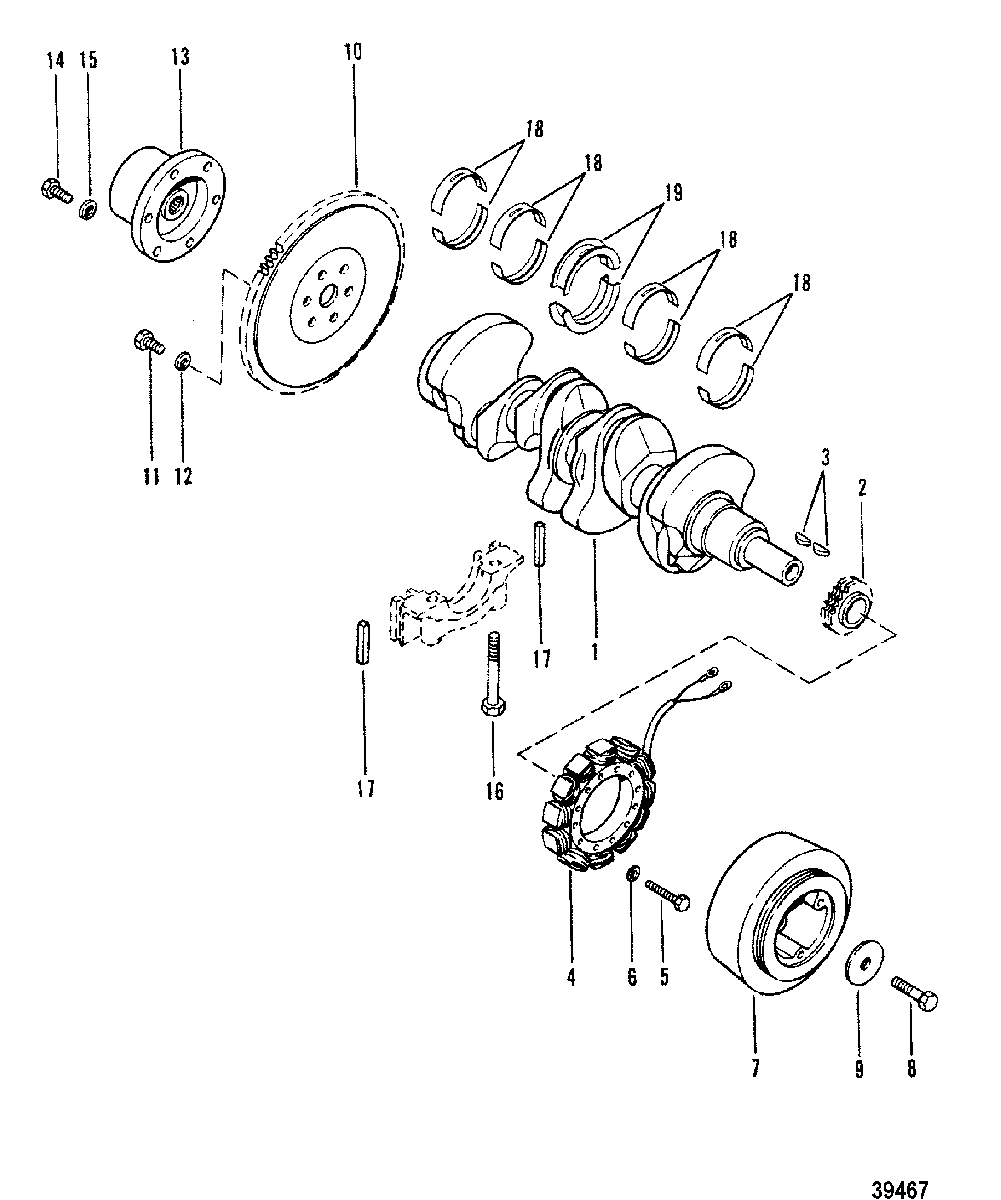

CRANKSHAFT, FLYWHEEL AND ALTERNATOR для Mercruiser - 3.7LX (4 BBL.) MERCURY 224 I/L4 1988-1989 0B775249 & Up

  • №
    Артикул
    Название
  • 1
    456-6092A1 CRANKSHAFT
    CRANKSHAFT
  • 2
    68700 SPROCKET, CRANKSHAFT
    SPROCKET, CRANKSHAFT
  • 3
    28-67382 KEY, SPROCKET AND ALTERNATOR
    KEY, SPROCKET AND ALTERNATOR
  • 4
    398-6231A10 STATOR ASSEMBLY, ALTERNATOR
    STATOR ASSEMBLY, ALTERNATOR
  • 5
    10-77363 SCREW, (#10-24 x 1.50), STATOR TO FRONT COVER
    SCREW, (#10-24 x 1.50), STATOR TO FRONT COVER
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel, STATOR SCREW
    LOCKWASHER, (#10) Stainless Steel, STATOR SCREW
  • 7
    93009A06 ALTERNATOR ASSEMBLY, FLYWHEEL
    ALTERNATOR ASSEMBLY, FLYWHEEL
  • 8
    10-59644 SCREW, (.500-20 x 1.380), ALTERNATOR
    SCREW, (.500-20 x 1.380), ALTERNATOR
  • 9
    12-36103 WASHER, (Steel, 1.75 Inch Outside Diameter), ALTERNATOR SCREW
    WASHER, (Steel, 1.75 Inch Outside Diameter), ALTERNATOR SCREW
  • 10
    251-9741A2 FLYWHEEL
    FLYWHEEL
  • -
    43-97433A1 RING GEAR ASSEMBLY
    RING GEAR ASSEMBLY
  • 11
    10-845757 SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
    SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
  • 12
    13-39131 LOCKWASHER, (.437), FLYWHEEL SCREW
    LOCKWASHER, (.437), FLYWHEEL SCREW
  • 13
    97432A2 COUPLING ASSEMBLY, ENGINE
    COUPLING ASSEMBLY, ENGINE
  • 14
    10-37612 SCREW, (.375-16 x 1.250), COUPLING TO FLYWHEEL
    SCREW, (.375-16 x 1.250), COUPLING TO FLYWHEEL
  • 15
    13-35048 LOCKWASHER, (.375), COUPLING SCREW
    LOCKWASHER, (.375), COUPLING SCREW
  • 16
    10-74335 SCREW, (.500-13 x 4.00), MAIN BEARING SCREW
    SCREW, (.500-13 x 4.00), MAIN BEARING SCREW
  • 17
    26-98421A1 SEAL, REAR BEARING CAP
    SEAL, REAR BEARING CAP
  • 18
    23-853849 BEARING ASSEMBLY, Main
    STANDARD
    BEARING ASSEMBLY, Main
    STANDARD
  • 18
    74313A2 BEARING ASSEMBLY, Main
    (.002 UNDERSIZE)
    BEARING ASSEMBLY, Main
    (.002 UNDERSIZE)
  • 18
    23-853851 BEARING ASSEMBLY, Main
    (.010 UNDERSIZE)
    BEARING ASSEMBLY, Main
    (.010 UNDERSIZE)
  • 18
    74313A3 BEARING ASSEMBLY, Main
    (.020 UNDERSIZE)
    BEARING ASSEMBLY, Main
    (.020 UNDERSIZE)
  • 19
    23-853849 BEARING ASSEMBLY, Center Main
    STANDARD
    BEARING ASSEMBLY, Center Main
    STANDARD
  • 19
    15103A2 BEARING ASSEMBLY, Center Main
    (.002 UNDERSIZE)
    BEARING ASSEMBLY, Center Main
    (.002 UNDERSIZE)
  • 19
    23-853851 BEARING ASSEMBLY, Center Main
    (.010 UNDERSIZE)
    BEARING ASSEMBLY, Center Main
    (.010 UNDERSIZE)
  • 19
    23-853852 BEARING ASSEMBLY, Center Main
    (.020 UNDERSIZE)
    BEARING ASSEMBLY, Center Main
    (.020 UNDERSIZE)
  • -
    883278R5 SHORT BLOCK
    SHORT BLOCK
  • -
    27-43186A1 GASKET SET
    GASKET SET
