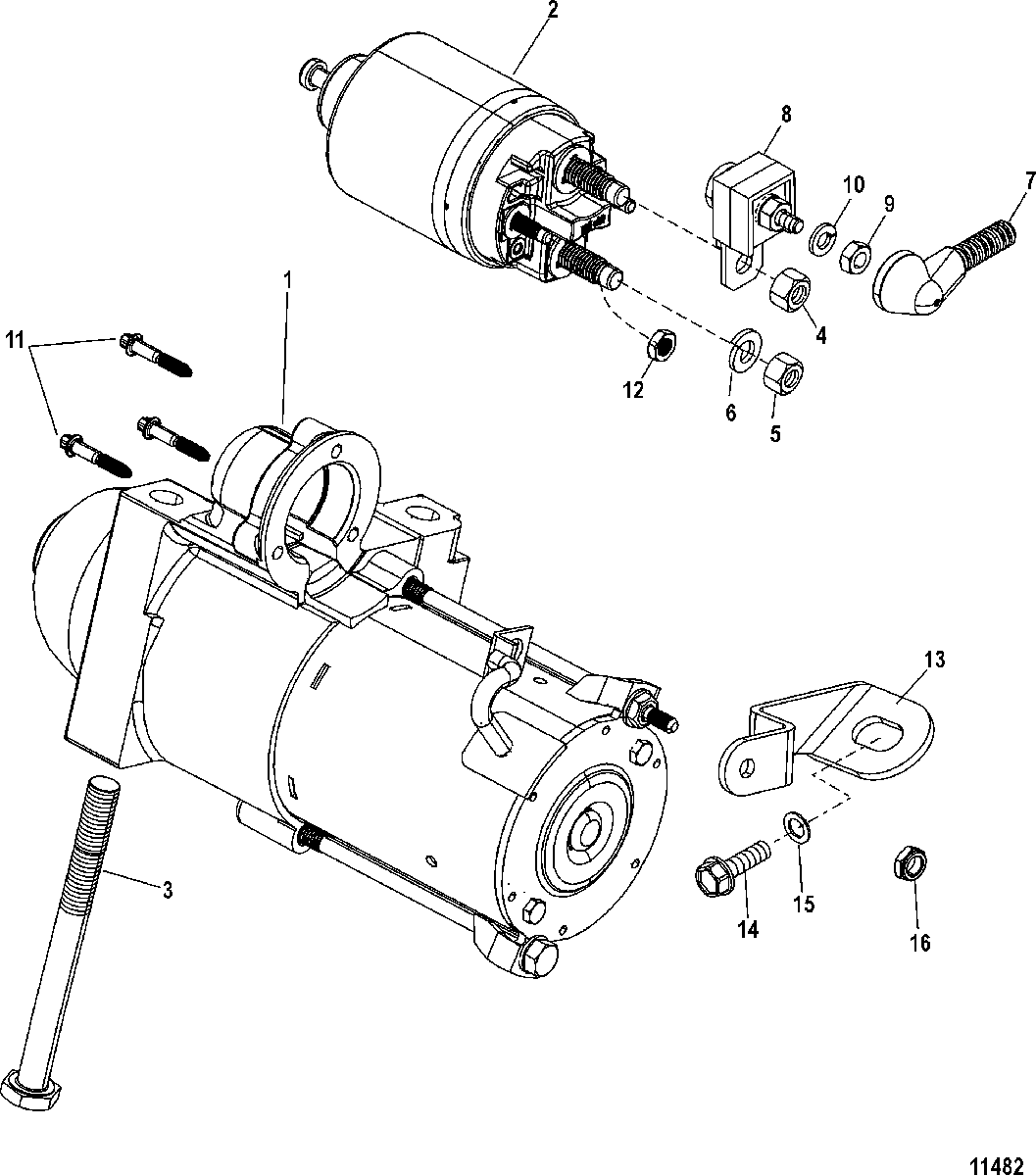

Starter Motor для Mercruiser - 3.0L GM 181 I/L4 0W302000 THRU 1A0019999

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    809463A1 SOLENOID KIT, Starter
    SOLENOID KIT, Starter
  • 3
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 4
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 5
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 7
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 8
    88-79023A91 FUSE ASSEMBLY, 90 Ampere (90 Amp)
    FUSE ASSEMBLY, 90 Ampere (90 Amp)
  • 9
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 10
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 12
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 13
    863212 BRACKET
    BRACKET
  • 14
    10-824941 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 15
    12-46132 WASHER
    WASHER
  • 16
    11-21806 NUT, (#10-24)
    NUT, (#10-24)
