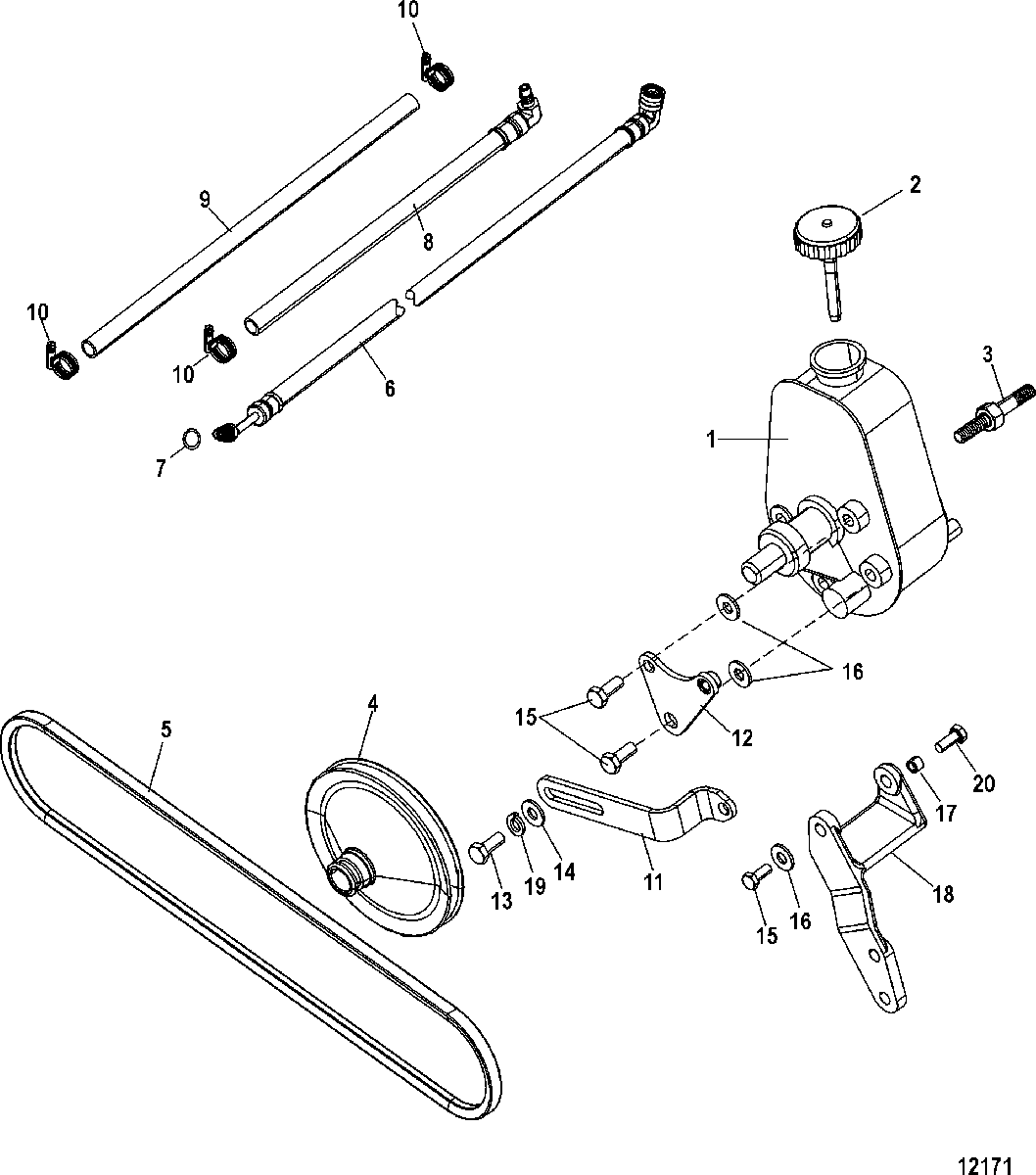

Power Steering Pump Assembly для Mercruiser - 3.0L GM 181 I/L4 0W302000 THRU 1A0019999

  • №
    Артикул
    Название
  • 1
    89-8M0063185 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    36-95805 CAP
    CAP
  • 3
    16-41877 STUD, (M10)
    STUD, (M10)
  • 4
    73873A1 PULLEY
    PULLEY
  • 5
    57-65607Q V BELT
    V BELT
  • 6
    32-8M0104318 HOSE, Female Quick Connect
    HOSE, Female Quick Connect
  • 7
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 8
    32-865390015 HOSE, Male Quick Connect
    HOSE, Male Quick Connect
  • 9
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    (Cut to 37.00 Inch Length)
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    (Cut to 37.00 Inch Length)
  • 10
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • NS
    19-8M0074363 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 11
    8M0072245 BRACE, Power Steering Adjusting
    BRACE, Power Steering Adjusting
  • 12
    96872A2 BRACKET
    BRACKET
  • 13
    10-90059 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 14
    12-34714 WASHER
    WASHER
  • 15
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 16
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 17
    23-96818 BUSHING
    BUSHING
  • 18
    65606T BRACKET
    BRACKET
  • 19
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 20
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
