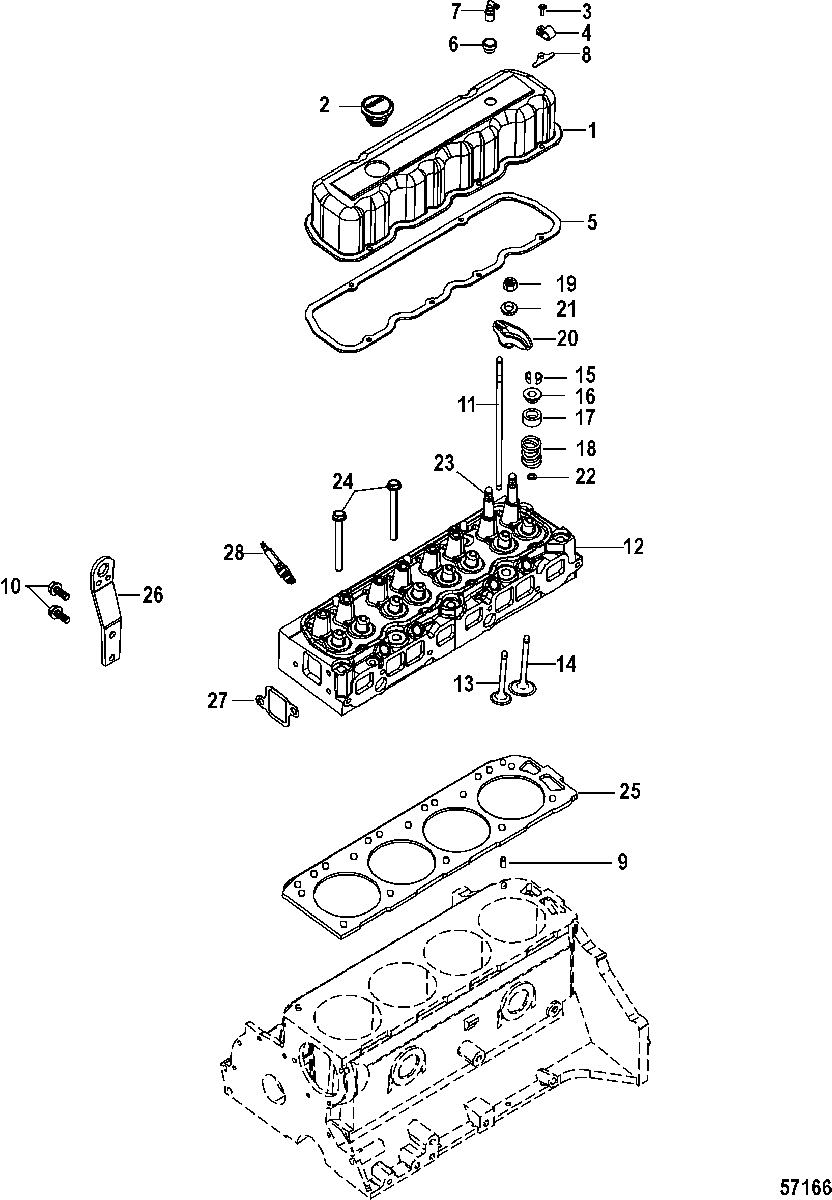

Cylinder Head and Rocker Cover для Mercruiser - 3.0L GM 181 I/L4 0W302000 THRU 1A0019999

  • №
    Артикул
    Название
  • 1
    8M0122491 COVER, Rocker
    COVER, Rocker
  • 2
    36-807152 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0040582 SCREW
    SCREW
  • 4
    54-97224 J CLIP
    J CLIP
  • 5
    27-851040 GASKET
    GASKET
  • 6
    23-8M0071559 GROMMET
    GROMMET
  • 7
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 8
    49174 REINFORCEMENT, Valve Cover
    REINFORCEMENT, Valve Cover
  • 9
    17-35465 PIN, Dowel (.312)
    PIN, Dowel (.312)
  • 10
    10-54528 SCREW
    SCREW
  • 11
    34532 PUSH ROD
    PUSH ROD
  • 12
    938-8M0115135 CYLINDER HEAD ASSEMBLY
    (Basic)
    CYLINDER HEAD ASSEMBLY
    (Basic)
  • 13
    52367 VALVE, Exhaust
    (Standard)
    VALVE, Exhaust
    (Standard)
  • 13
    52368 VALVE, Exhaust
    (.015 Oversize)
    VALVE, Exhaust
    (.015 Oversize)
  • 14
    97661 VALVE, Intake
    (Standard)
    VALVE, Intake
    (Standard)
  • 14
    97662 VALVE, Intake
    (.015 Oversize)
    VALVE, Intake
    (.015 Oversize)
  • 15
    28-547971 KEY
    KEY
  • 16
    FI1100604 CAP, Intake Valve
    CAP, Intake Valve
  • 16
    11965 ROTATOR, Exhaust Valve
    ROTATOR, Exhaust Valve
  • 17
    34518001 SHIELD
    SHIELD
  • 18
    24-35214 SPRING, Valve
    SPRING, Valve
  • 19
    11-34516 NUT
    NUT
  • 20
    34519 ARM KIT, Rocker
    ARM KIT, Rocker
  • 21
    59340 BALL, Rocker Arm
    BALL, Rocker Arm
  • 22
    26-34217 SEAL
    SEAL
  • 23
    16-34522 STUD
    (.003 Oversize)
    STUD
    (.003 Oversize)
  • 23
    16-34521 STUD
    (.013 Oversize)
    STUD
    (.013 Oversize)
  • 24
    10-34510 BOLT
    BOLT
  • 25
    27-52364 GASKET
    GASKET
  • 26
    67850 LIFTING EYE
    LIFTING EYE
  • 27
    27-8146801 GASKET
    GASKET
  • 28
    33-816336Q SPARK PLUG
    SPARK PLUG
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    8M0128770 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
