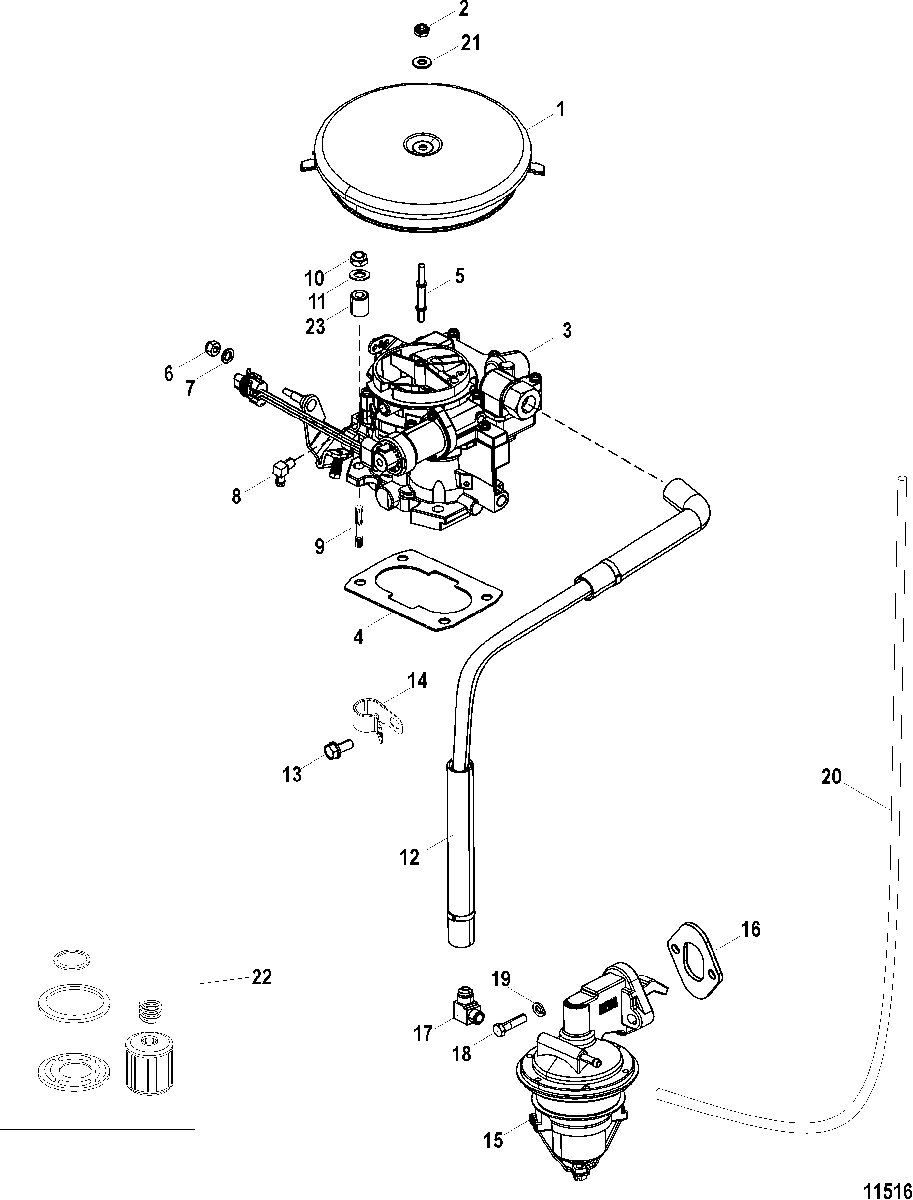

Fuel Supply System для Mercruiser - 3.0L GM 181 I/L4 0W302000 THRU 1A0019999

№

Артикул

Название
1

863200 FLAME ARRESTOR, With Molded Hose Retainer

FLAME ARRESTOR, With Molded Hose Retainer
2

11-8267139 NUT, (.250-28)

NUT, (.250-28)
3

3310-8M0084193 CARBURETOR

CARBURETOR
4

27-866027 GASKET

GASKET
5

16-8M0113181 STUD, (.250-20/.250-28 x Special)

STUD, (.250-20/.250-28 x Special)
6

11-8267086 NUT, (#10-32)

NUT, (#10-32)
7

12-56681 WASHER, (.203 x .500 x .032)

WASHER, (.203 x .500 x .032)
8

22-54090 ELBOW (90 Degree)

ELBOW (90 Degree)
9

16-8M0113177 STUD, (.312 x 1.500)

STUD, (.312 x 1.500)
9

16-65868 STUD, (.312-18/.312-24 x 2.120)

STUD, (.312-18/.312-24 x 2.120)
10

11-862902 NUT, (.312-24)

NUT, (.312-24)
11

12-20084 WASHER, (.328 x .562 x .062)

WASHER, (.328 x .562 x .062)
12

32-8M0045357 FUEL LINE ASSEMBLY, Fuel

FUEL LINE ASSEMBLY, Fuel
13

10-41508 SCREW

SCREW
14

54-866029 CLAMP

CLAMP
15

8M0073435 PUMP, Fuel

PUMP, Fuel
16

27-8M0108647 GASKET

GASKET
17

22-43276 ELBOW, (90 Degree) (90 Degree)

ELBOW, (90 Degree) (90 Degree)
18

10-808010 SCREW, (.312-18 x 1.375)

SCREW, (.312-18 x 1.375)
19

13-39107 LOCKWASHER, (.312-24)

LOCKWASHER, (.312-24)
20

32-7381567 TUBING, (42.00 Inches Bulk), Vent
(Cut to 30 Inch Length)

TUBING, (42.00 Inches Bulk), Vent
(Cut to 30 Inch Length)
21

12-86400 WASHER

WASHER
22

35-8M0046751 FILTER KIT, Mercury Branded Package

FILTER KIT, Mercury Branded Package
22

35-8M0046752 FILTER KIT, Quicksilver Branded Package

FILTER KIT, Quicksilver Branded Package
23

16-65868 STUD, (.312-18/.312-24 x 2.120)

STUD, (.312-18/.312-24 x 2.120)
-

27-810846A05 GASKET SET, Overhaul

GASKET SET, Overhaul
-

8M0128770 MARINE LONG BLOCK ENGINE

MARINE LONG BLOCK ENGINE
