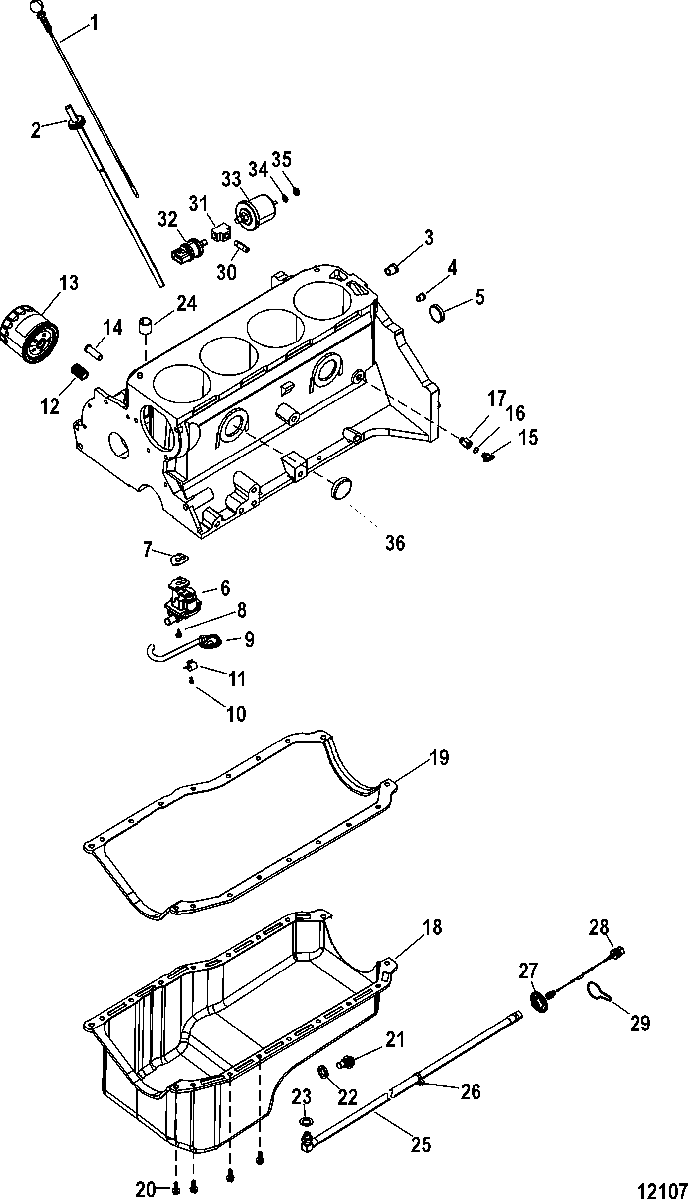

Oil Pan and Oil Pump для Mercruiser - 3.0L GM 181 I/L4 0W302000 THRU 1A0019999

  • №
    Артикул
    Название
  • 1
    861942T1 GAUGE, Dipstick
    (Knob Handle)
    GAUGE, Dipstick
    (Knob Handle)
  • 2
    87717A2 TUBE, Dipstick
    TUBE, Dipstick
  • 3
    22-36373 PLUG, (.375-18 x .42)
    PLUG, (.375-18 x .42)
  • 4
    19-37531 PLUG
    PLUG
  • 5
    22-72640 PLUG
    PLUG
  • 6
    36405 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 7
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 8
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 9
    52146 SCREEN, Oil Pump Pickup
    SCREEN, Oil Pump Pickup
  • 10
    10-8M0040582 SCREW
    SCREW
  • 11
    60717 SUPPORT, Oil Pump
    SUPPORT, Oil Pump
  • 12
    22-805632 CONNECTOR
    (Without Remote Oil)
    CONNECTOR
    (Without Remote Oil)
  • 13
    35-866340Q03 FILTER, Oil
    (Quicksilver Branded)
    FILTER, Oil
    (Quicksilver Branded)
  • 13
    35-866340K01 FILTER, Oil
    (Mercury Branded)
    FILTER, Oil
    (Mercury Branded)
  • 14
    34543 VALVE
    VALVE
  • 15
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 16
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 17
    22-860088 BUSHING
    BUSHING
  • 18
    8M0122492 PAN, Oil
    PAN, Oil
  • 19
    27-810846T GASKET SET
    GASKET SET
  • 20
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 20
    10-72607 SCREW, (.250-20 x .375)
    SCREW, (.250-20 x .375)
  • 21
    10-49956 SCREW, Drain
    SCREW, Drain
  • 22
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 23
    27-8M0077608 GASKET
    GASKET
  • 24
    23-35168 BEARING
    BEARING
  • 25
    32-865277 HOSE, Oil Drain
    HOSE, Oil Drain
  • 26
    54-863481 CLAMP
    CLAMP
  • 27
    862777 FLANGE, Drain
    FLANGE, Drain
  • 28
    862827 TETHER ASSEMBLY, Drain Plug
    TETHER ASSEMBLY, Drain Plug
  • 29
    54-805524 CLIP
    CLIP
  • 30
    22-38992 FITTING
    FITTING
  • 31
    22-52930 FITTING
    FITTING
  • 32
    87-865934 Pressure Switch, (SPDT)
    Pressure Switch, (SPDT)
  • 33
    8M0068784 SENDER ASSEMBLY
    SENDER ASSEMBLY
  • 34
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 35
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 36
    19-34271 EXPANSION PLUG, (2.00)
    EXPANSION PLUG, (2.00)
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    8M0128770 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
