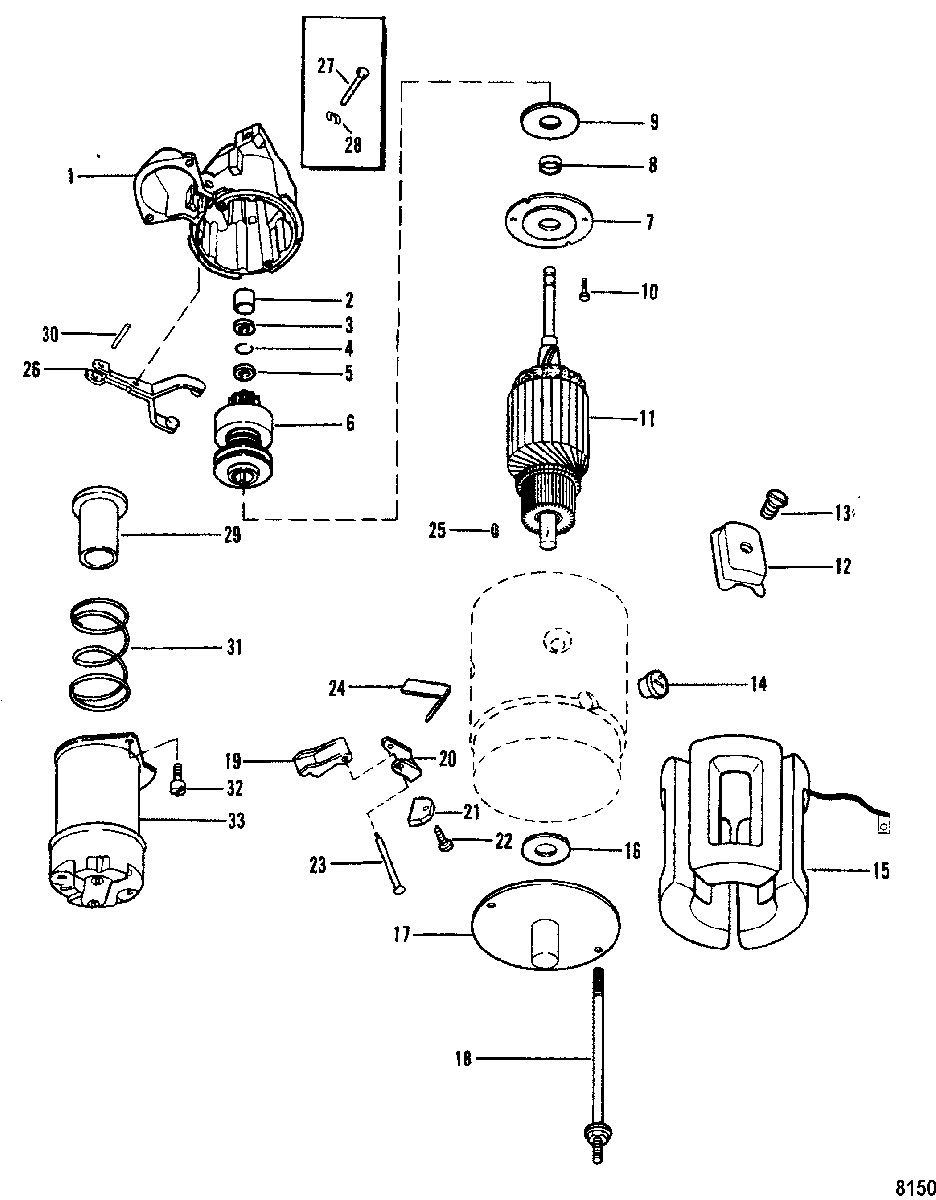

Starter Motor(Delco Remy #1998317) для Mercruiser - 3.0L GM 181 I/L4 1990-1994 0C856559 THRU 0F353099

  • №
    Артикул
    Название
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    71696 HOUSING
    HOUSING
  • 2
    23-33369 BUSHING
    BUSHING
  • 3
    23-809457 COLLAR
    COLLAR
  • 4
    53-33290 RING, Retaining
    RING, Retaining
  • 5
    33291 COLLAR
    COLLAR
  • 6
    79205T DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 7
    NSS NOT SOLD SEPARATE, Bearing Plate (Delco Remy #1956939)
    NOT SOLD SEPARATE, Bearing Plate (Delco Remy #1956939)
  • 8
    23-71694 BUSHING
    BUSHING
  • 9
    12-68614 WASHER
    WASHER
  • 10
    10-79209 SCREW
    SCREW
  • 11
    75665 ARMATURE
    ARMATURE
  • 12
    NSS NOT SOLD SEPARATE, Pole Shoe (Delco Remy #810601)
    NOT SOLD SEPARATE, Pole Shoe (Delco Remy #810601)
  • 13
    NSS NOT SOLD SEPARATE, Screw (Delco Remy #1968396)
    NOT SOLD SEPARATE, Screw (Delco Remy #1968396)
  • 14
    25-79208 GROMMET
    GROMMET
  • 15
    75664 COIL ASSEMBLY
    COIL ASSEMBLY
  • 16
    12-33258 WASHER, Leather
    WASHER, Leather
  • 17
    79211 FRAME
    FRAME
  • 18
    NSS NOT SOLD SEPARATE, Thru Bolt (Delco Remy #1939970)
    NOT SOLD SEPARATE, Thru Bolt (Delco Remy #1939970)
  • 18
    NSS NOT SOLD SEPARATE, Thru Bolt (With Extension Delco Remy #1941111)
    NOT SOLD SEPARATE, Thru Bolt (With Extension Delco Remy #1941111)
  • 19
    33284 HOLDER
    HOLDER
  • 20
    33283 HOLDER
    HOLDER
  • 21
    33270 BRUSH
    BRUSH
  • 22
    NSS NOT SOLD SEPARATE, Screw (Delco Remy #443527)
    NOT SOLD SEPARATE, Screw (Delco Remy #443527)
  • 23
    33294 SUPPORT
    SUPPORT
  • 24
    24-33285 SPRING
    SPRING
  • 25
    NSS NOT SOLD SEPARATE, Dowel Pin (Delco Remy #809593)
    NOT SOLD SEPARATE, Dowel Pin (Delco Remy #809593)
  • 26
    71698 LEVER, Shift
    LEVER, Shift
  • 27
    NSS NOT SOLD SEPARATE, Pin (Delco Remy #1945804)
    NOT SOLD SEPARATE, Pin (Delco Remy #1945804)
  • 28
    53-33354 RING, Retaining
    RING, Retaining
  • 29
    NSS NOT SOLD SEPARATE, Plunger (Delco Remy #1978297)
    NOT SOLD SEPARATE, Plunger (Delco Remy #1978297)
  • 30
    17-79207 PIN
    PIN
  • 31
    NSS NOT SOLD SEPARATE, Spring (Delco Remy #1978281)
    NOT SOLD SEPARATE, Spring (Delco Remy #1978281)
  • 32
    NSS NOT SOLD SEPARATE, Screw (Delco Remy #9413260)
    NOT SOLD SEPARATE, Screw (Delco Remy #9413260)
  • 33
    89-18080 SOLENOID SWITCH, (3.625)
    SOLENOID SWITCH, (3.625)
