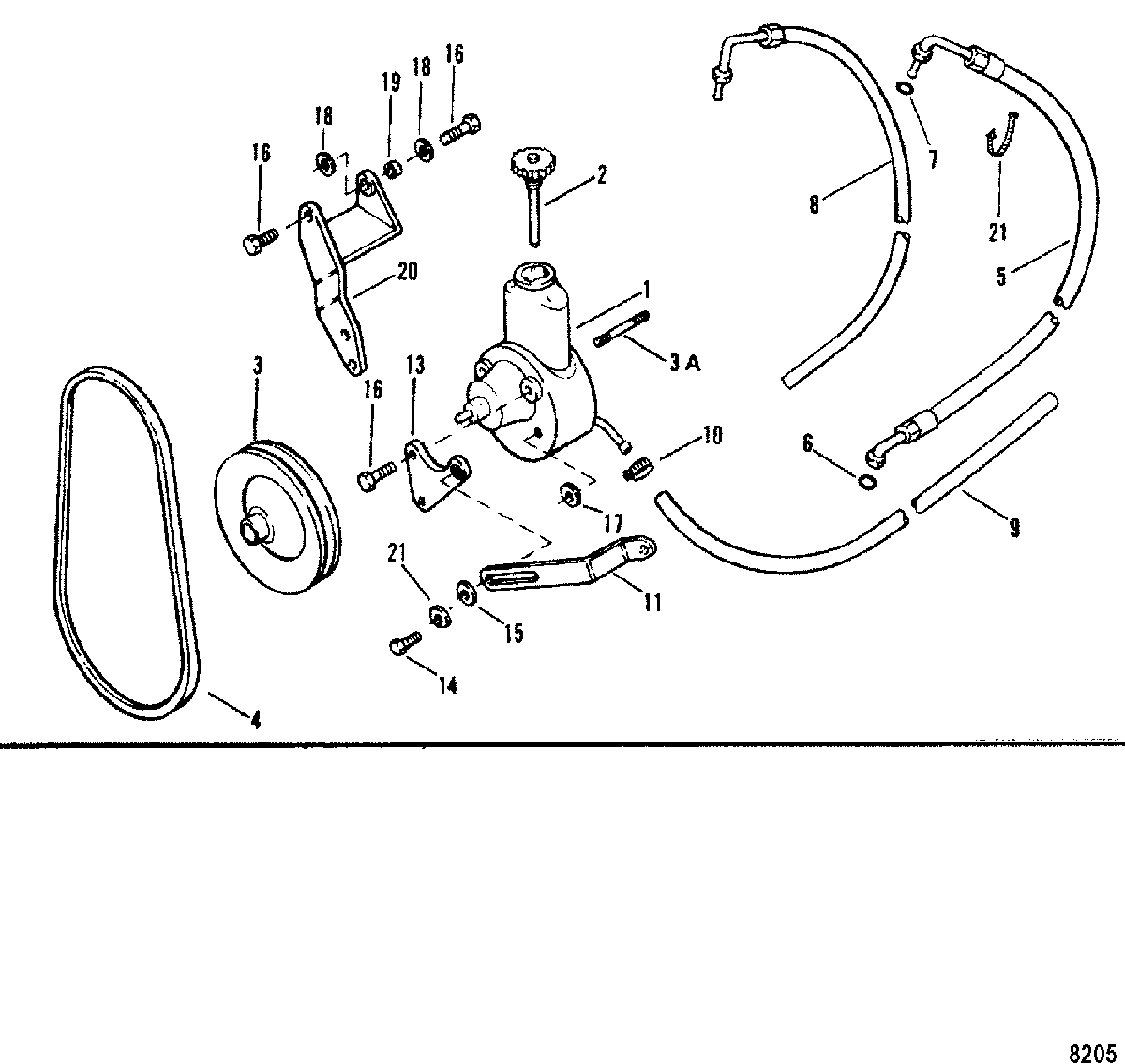

Power Steering Pump Assembly для Mercruiser - 3.0L GM 181 I/L4 1990-1994 0C856559 THRU 0F353099

  • №
    Артикул
    Название
  • 1
    90507A12 PUMP ASSEMBLY, Power-Assisted Steering, Power Steering
    PUMP ASSEMBLY, Power-Assisted Steering, Power Steering
  • 2
    36-95805 CAP
    CAP
  • 3
    73873A1 PULLEY
    PULLEY
  • 3A
    16-41877 STUD, (M10)
    STUD, (M10)
  • 4
    57-65607Q V BELT
    V BELT
  • 5
    32-90494 HOSE, Pressure (Fittings On Both Ends)
    SN# 0A000000 THRU 0F114599
    HOSE, Pressure (Fittings On Both Ends)
    SN# 0A000000 THRU 0F114599
  • 6
    25-89879 O-RING, (.301 x .064)
    SN# 0A000000 THRU 0F114599
    O-RING, (.301 x .064)
    SN# 0A000000 THRU 0F114599
  • 8
    32-9884339 HOSE ASSEMBLY, (72.00 Inches Bulk), Return (Fitting On One End)
    SN# 0A000000 THRU 0F114599
    HOSE ASSEMBLY, (72.00 Inches Bulk), Return (Fitting On One End)
    SN# 0A000000 THRU 0F114599
  • 5
    32-806684 HOSE, Pressure (Fittings On Both Ends)
    SN# 0F114600 THRU 0Z999999
    HOSE, Pressure (Fittings On Both Ends)
    SN# 0F114600 THRU 0Z999999
  • 6
    25-89879 O-RING, (.301 x .064)
    SN# 0F114600 THRU 0Z999999
    O-RING, (.301 x .064)
    SN# 0F114600 THRU 0Z999999
  • 7
    25-806232 O-RING, (.239 x .064)
    SN# 0F114600 THRU 0Z999999
    O-RING, (.239 x .064)
    SN# 0F114600 THRU 0Z999999
  • 8
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return (Fitting On One End)
    SN# 0F114600 THRU 0Z999999
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return (Fitting On One End)
    SN# 0F114600 THRU 0Z999999
  • 9
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump To Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump To Oil Cooler
  • 10
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    8M0072245 BRACE
    BRACE
  • 13
    96872A2 BRACKET
    BRACKET
  • 14
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 15
    12-34714 WASHER
    WASHER
  • 16
    10-40001192 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
  • 16
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 17
    23-905201 SPACER, (.750 x .250)
    SPACER, (.750 x .250)
  • 18
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 19
    23-96818 BUSHING
    BUSHING
  • 20
    65606T BRACKET
    BRACKET
  • 21
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
