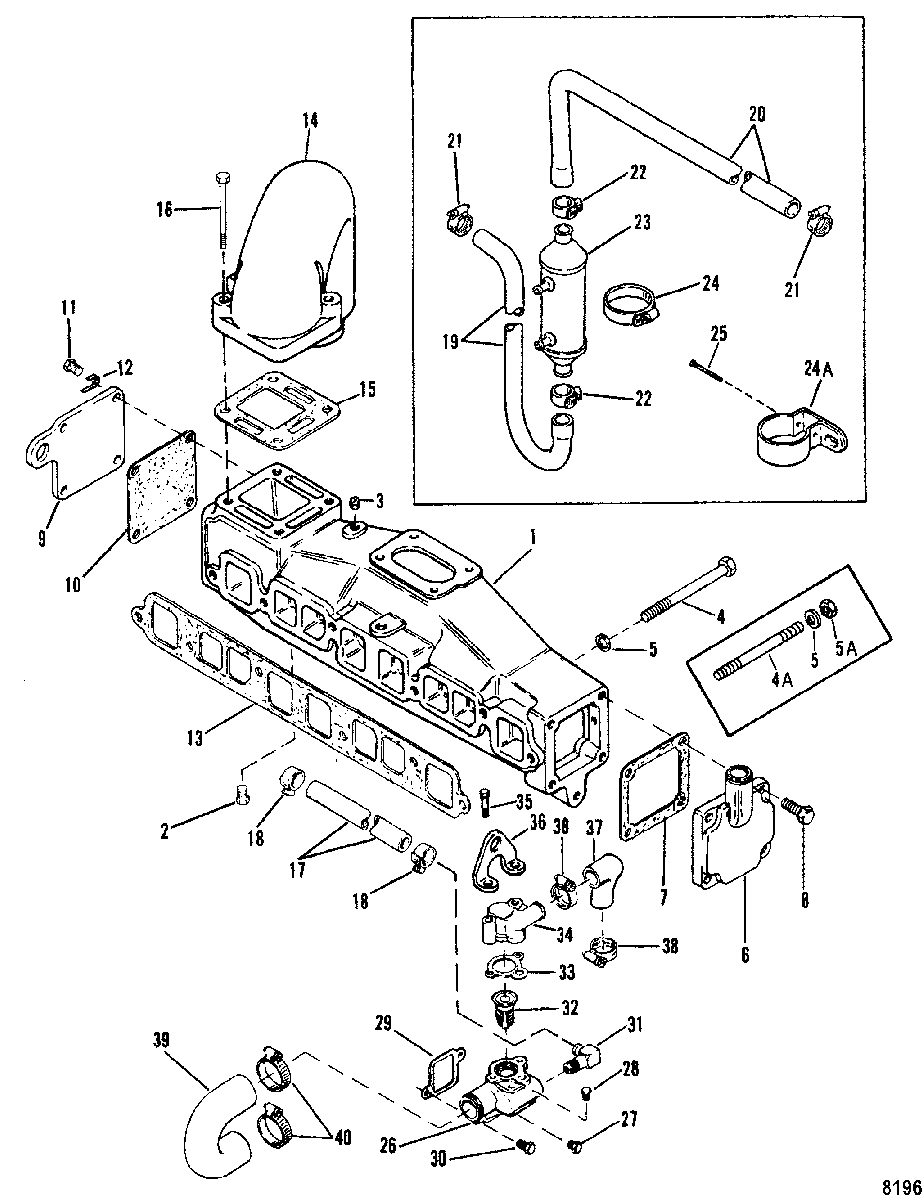

Exhaust Manifold and Water System(With End Caps) 3.0L Only для Mercruiser - 3.0L GM 181 I/L4 1990-1994 0C856559 THRU 0F353099

№

Артикул

Название
1

860235A03 MANIFOLD ASSEMBLY, Exhaust

MANIFOLD ASSEMBLY, Exhaust

56 440 ₽
2

22-328022 PLUG, Pipe (.125-27)

PLUG, Pipe (.125-27)

600 ₽
3

22-36382 FITTING, (.250-18 x .62) Brass

FITTING, (.250-18 x .62) Brass

440 ₽
4

10-52143 SCREW, (.375-16 x 4.750)
(Old Design)

SCREW, (.375-16 x 4.750)
(Old Design)

0 ₽
5

12-20553 WASHER, (.406 x .734 x .063)
(Old Design)

WASHER, (.406 x .734 x .063)
(Old Design)

120 ₽
4

10-53728 SCREW, (.375-16 x 4.75)
(New Design)

SCREW, (.375-16 x 4.75)
(New Design)

340 ₽
4A

16-8M2010364 STUD
(New Design)

STUD
(New Design)

430 ₽
5

12-20553 WASHER, (.406 x .734 x .063)
(New Design)

WASHER, (.406 x .734 x .063)
(New Design)

120 ₽
5A

11-46335 NUT, (.375-24)
(New Design)

NUT, (.375-24)
(New Design)

430 ₽
6

60252A2 END CAP, Connector/Front

END CAP, Connector/Front

13 770 ₽
7

27-480431 GASKET

GASKET

480 ₽
8

10-35386 SCREW, (.312-18 x 1.00)

SCREW, (.312-18 x 1.00)

90 ₽
9

805629A1 END CAP/LIFTING EYE, Rear

END CAP/LIFTING EYE, Rear

4 230 ₽
10

27-807218 GASKET

GASKET

300 ₽
11

10-824941 SCREW, (.312-18 x .750)

SCREW, (.312-18 x .750)

1 270 ₽
12

54-47483 J CLIP

J CLIP

490 ₽
13

27-96429 GASKET

GASKET

1 640 ₽
14

12076A2 ELBOW ASSEMBLY, Exhaust

ELBOW ASSEMBLY, Exhaust

35 320 ₽
15

27-997772 GASKET

GASKET

280 ₽
16

10-668631 SCREW, (.375-16 x 2.500)

SCREW, (.375-16 x 2.500)

140 ₽
17

32-8M0062634 HOSE (.75 Inch I.D.)
(With Out Power Steering)

HOSE (.75 Inch I.D.)
(With Out Power Steering)

4 040 ₽
18

54-815504412 CLAMP, Worm Gear
(With Out Power Steering)

CLAMP, Worm Gear
(With Out Power Steering)

590 ₽
19

32-815413 HOSE, Cooler to Drive Unit

HOSE, Cooler to Drive Unit

3 010 ₽
20

32-815412 HOSE, Cooler to Housing

HOSE, Cooler to Housing

7 510 ₽
21

54-815504220 CLAMP, Worm Gear
(With Power Steering)

CLAMP, Worm Gear
(With Power Steering)

600 ₽
22

54-815504412 CLAMP, Worm Gear
(With Power Steering)

CLAMP, Worm Gear
(With Power Steering)

590 ₽
23

99356A1 COOLER ASSEMBLY, Oil
(With Power Steering)

COOLER ASSEMBLY, Oil
(With Power Steering)

38 870 ₽
24

54-815504336 CLAMP, Worm Gear, Old Design
(With Power Steering)

CLAMP, Worm Gear, Old Design
(With Power Steering)

600 ₽
24A

65970T1 BRACKET, New Design
(With Power Steering)

BRACKET, New Design
(With Power Steering)

960 ₽
25

10-41408 SCREW, (#10-32 x 1.50), New Design
(With Power Steering)

SCREW, (#10-32 x 1.50), New Design
(With Power Steering)

210 ₽
26

861493A07 HOUSING ASSEMBLY

HOUSING ASSEMBLY

15 290 ₽
27

22-32803 PLUG, Pipe (.375-18) Brass

PLUG, Pipe (.375-18) Brass

500 ₽
28

22-328022 PLUG, Pipe (.125-27)

PLUG, Pipe (.125-27)

600 ₽
29

27-8146801 GASKET

GASKET

210 ₽
30

10-90059 SCREW, (.375-16 x .875)

SCREW, (.375-16 x .875)

180 ₽
30

10-90187 SCREW, (.375-16 x 1.250)

SCREW, (.375-16 x 1.250)

560 ₽
31

22-807705 ELBOW

ELBOW

1 820 ₽
32

59078 THERMOSTAT

THERMOSTAT

2 600 ₽
33

27-475901 GASKET

GASKET

210 ₽
34

861493A07 COVER ASSEMBLY

COVER ASSEMBLY

15 290 ₽
35

10-79654 SCREW, (.312-18 x 2.380)

SCREW, (.312-18 x 2.380)

220 ₽
36

54-805628T LIFTING EYE

LIFTING EYE

530 ₽
37

32-52481 HOSE, Housing to End Cap/Connector

HOSE, Housing to End Cap/Connector

3 520 ₽
38

54-815504220 CLAMP, Worm Gear

CLAMP, Worm Gear

600 ₽
39

32-8M0071007 HOSE, Housing to Water Pump

HOSE, Housing to Water Pump

4 650 ₽
40

54-815504232 CLAMP, Worm Gear (2.50 Diameter)

CLAMP, Worm Gear (2.50 Diameter)

660 ₽
