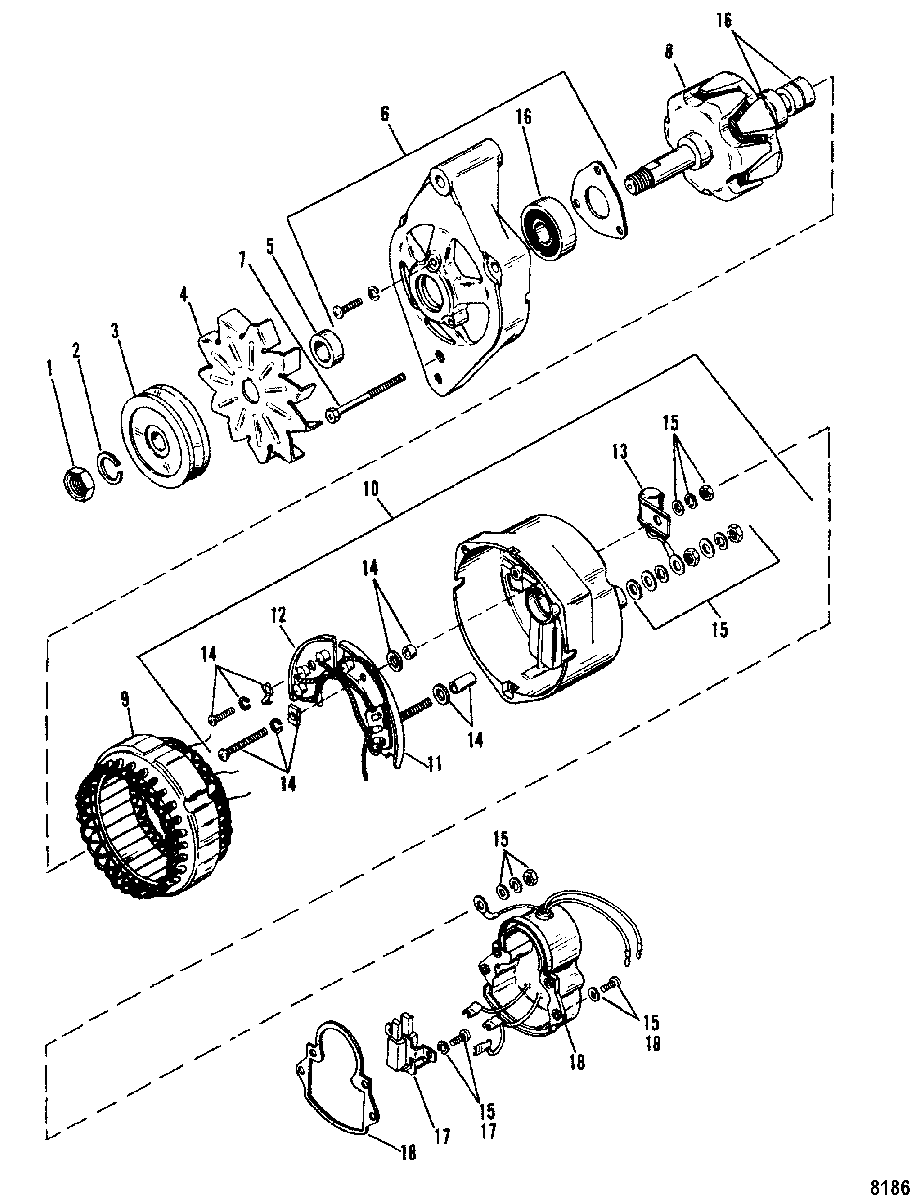

Alternator(Mando) #AR - 150 для Mercruiser - 3.0L GM 181 I/L4 1990-1994 0C856559 THRU 0F353099

  • №
    Артикул
    Название
  • -
    817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)
    ALTERNATOR ASSEMBLY, (55 Ampere)
  • 1
    11-809136 NUT
    NUT
  • 2
    13-42769 LOCKWASHER
    LOCKWASHER
  • 3
    809134 PULLEY
    PULLEY
  • 4
    42771 FAN
    FAN
  • 5
    23-42772 SPACER
    SPACER
  • 6
    42774 BRACKET, Front
    BRACKET, Front
  • 7
    10-42773 THRU BOLT
    THRU BOLT
  • 8
    42775 ROTOR, Includes Bearings
    ROTOR, Includes Bearings
  • 9
    42776 STATOR
    STATOR
  • 10
    42777 BRACKET, Rear
    BRACKET, Rear
  • 11
    42778 HEAT SINK
    HEAT SINK
  • 12
    42779 HEAT SINK
    HEAT SINK
  • 13
    42780 CONDENSER ASSEMBLY
    CONDENSER ASSEMBLY
  • 14
    42783 HARDWARE KIT, Internal
    HARDWARE KIT, Internal
  • 15
    42782 HARDWARE KIT, External
    HARDWARE KIT, External
  • 16
    42781 BEARING KIT
    BEARING KIT
  • 17
    42784 HOLDER KIT, Includes Springs And Brushes
    HOLDER KIT, Includes Springs And Brushes
  • 18
    42785 REGULATOR KIT, Mando #AR-150
    REGULATOR KIT, Mando #AR-150
