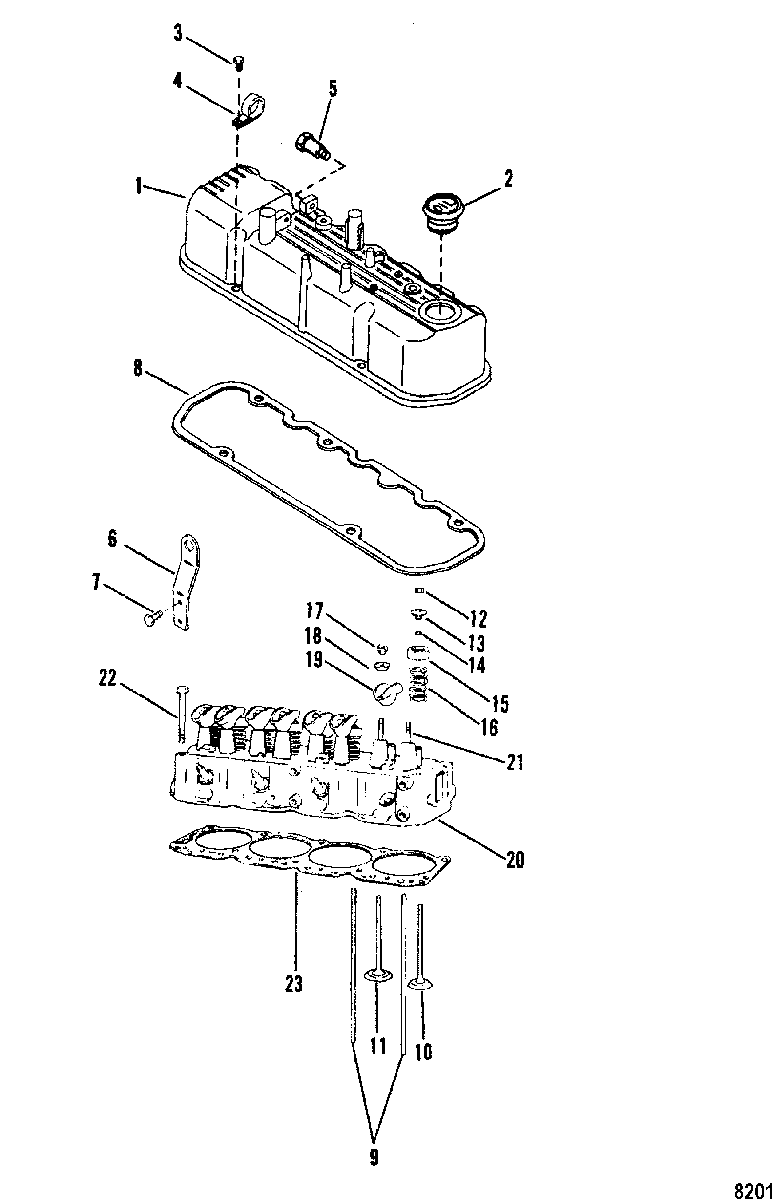

Cylinder Head and Rocker Cover для Mercruiser - 3.0L GM 181 I/L4 1990-1994 0C856559 THRU 0F353099

№

Артикул

Название
1

65635A16 COVER, Rocker

COVER, Rocker
2

36-807152 CAP, Filler, Oil

CAP, Filler, Oil
3

10-65746 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)
4

54-97224 J CLIP

J CLIP
5

10-96430 SHOULDER SCREW

SHOULDER SCREW
6

67850 LIFTING EYE

LIFTING EYE
7

10-54528 SCREW

SCREW
8

27-851040 GASKET

GASKET
9

34532 PUSH ROD

PUSH ROD
10

85803 VALVE, Exhaust - Standard Stem
(3.0L)

VALVE, Exhaust - Standard Stem
(3.0L)
10

49076 VALVE, Exhaust - Over Size Stem (.015)
(3.0L)

VALVE, Exhaust - Over Size Stem (.015)
(3.0L)
11

62421 VALVE, Inlet - Standard Stem
(3.0L)

VALVE, Inlet - Standard Stem
(3.0L)
11

62422 VALVE, Inlet - Over Size Stem (.015)
(3.0L)

VALVE, Inlet - Over Size Stem (.015)
(3.0L)
10

52367 VALVE, Exhaust - Standard Stem
(3.0LX)

VALVE, Exhaust - Standard Stem
(3.0LX)
10

52368 VALVE, Exhaust - Over Size Stem (.015)
(3.0LX)

VALVE, Exhaust - Over Size Stem (.015)
(3.0LX)
11

97661 VALVE, Inlet - Standard Stem
(3.0LX)

VALVE, Inlet - Standard Stem
(3.0LX)
11

97662 VALVE, Inlet - Over Size Stem (.015)
(3.0LX)

VALVE, Inlet - Over Size Stem (.015)
(3.0LX)
12

28-547971 KEY, 2 Per Valve

KEY, 2 Per Valve
13

FI1100604 CAP

CAP
14

26-34217 SEAL

SEAL
15

34518001 SHIELD

SHIELD
16

24-35214 SPRING, Valve

SPRING, Valve
17

11-34516 NUT

NUT
18

59340 BALL, Rocker Arm

BALL, Rocker Arm
19

34519 ARM KIT, Rocker

ARM KIT, Rocker
20

938-8M0115135 CYLINDER HEAD ASSEMBLY
(3.0L)

CYLINDER HEAD ASSEMBLY
(3.0L)
20

938-8M0115135 CYLINDER HEAD ASSEMBLY
(3.0LX)

CYLINDER HEAD ASSEMBLY
(3.0LX)
21

16-34521 STUD
(.013 Over Size)

STUD
(.013 Over Size)
21

16-34522 STUD
(.003 Over Size)

STUD
(.003 Over Size)
22

10-34510 BOLT

BOLT
23

27-52364 GASKET

GASKET
