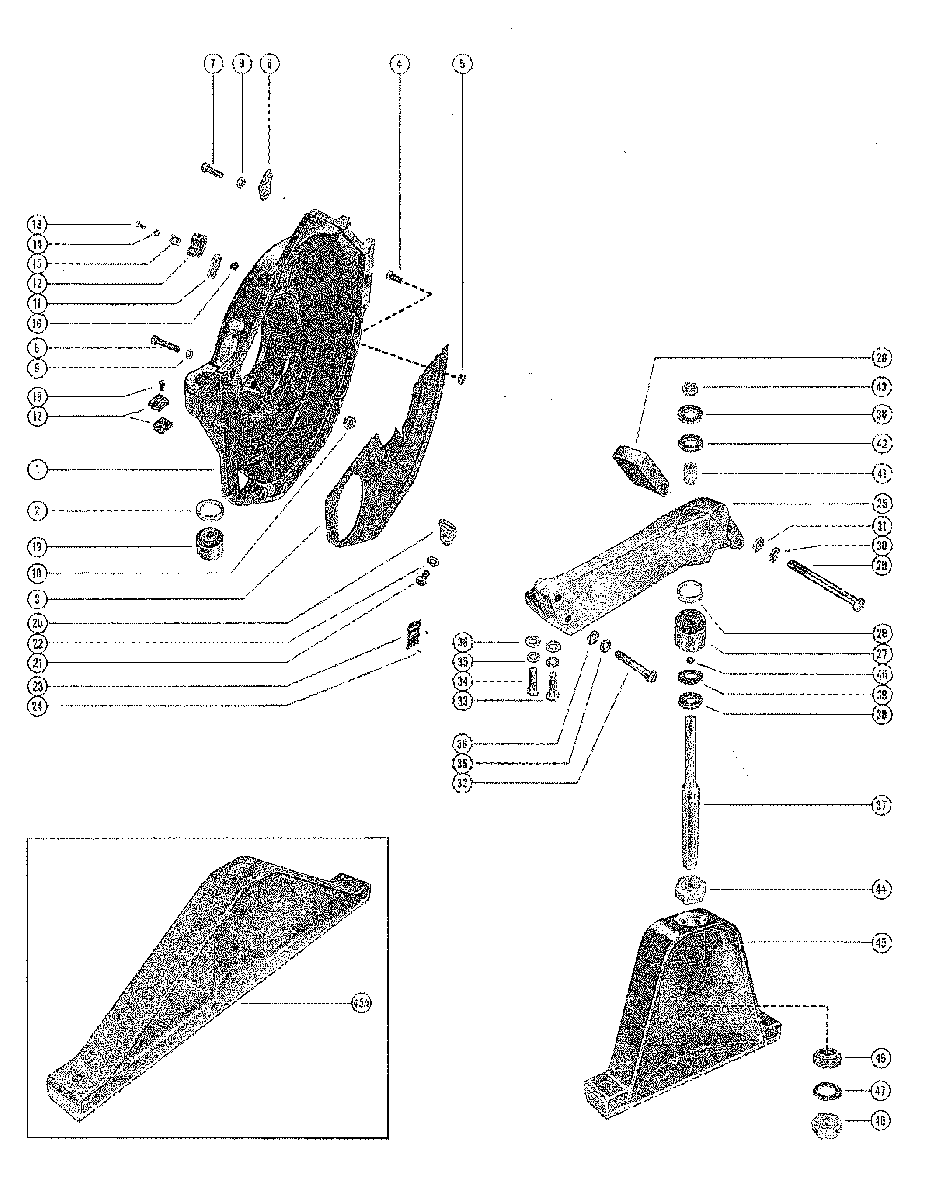

FLYWHEEL HOUSING AND ENGINE SUPPORT для Mercruiser - 120 GM 153 I/L4 1964-1972 1666601 THRU 3377340

  • №
    Артикул
    Название
  • 1
    65059A1 FLYWHEEL HOUSING ASSEMBLY,REAR MOUNTING
    SERIAL 00000000-02046624
    FLYWHEEL HOUSING ASSEMBLY,REAR MOUNTING
    SERIAL 00000000-02046624
  • 1
    65059A1 FLYWHEEL HOUSING ASSEMBLY,REAR MOUNTING
    SERIAL 02046625-02726998
    FLYWHEEL HOUSING ASSEMBLY,REAR MOUNTING
    SERIAL 02046625-02726998
  • 1
    65059A1 FLYWHEEL HOUSING ASSEMBLY,REAR MOUNTING
    SERIAL 02786857-09999999
    FLYWHEEL HOUSING ASSEMBLY,REAR MOUNTING
    SERIAL 02786857-09999999
  • 2
    23-99322 SPACER,FLYWHEEL HOUSING MOUNT
    SPACER,FLYWHEEL HOUSING MOUNT
  • 3
    35864A1 COVER PLATE,FLYWHEEL HOUSING
    COVER PLATE,FLYWHEEL HOUSING
  • 4
    10-47277 SCREW,COVER PLATE TO FLYWHEEL HOUSING (3/4")
    SCREW,COVER PLATE TO FLYWHEEL HOUSING (3/4")
  • 5
    11-29250 NUT,COVER PLATE SCREW
    NUT,COVER PLATE SCREW
  • 6
    54-72531 EYE,LIFTING-FLYWHEEL HOUSING SCREW
    EYE,LIFTING-FLYWHEEL HOUSING SCREW
  • 7
    10-37612 SCREW,FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 00000000-01951139
    SCREW,FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 00000000-01951139
  • 8
    10-98556 SCREW,FLYWHEEL HOUSING TO CYLINDER BLOCK(1 3/4")
    SERIAL 00000000-01951139
    SCREW,FLYWHEEL HOUSING TO CYLINDER BLOCK(1 3/4")
    SERIAL 00000000-01951139
  • 9
    13-35048 LOCKWASHER,FLYWHEEL HOUSING SCREW
    SERIAL 00000000-01951139
    LOCKWASHER,FLYWHEEL HOUSING SCREW
    SERIAL 00000000-01951139
  • 10
    11-32219 NUT,FLYWHEEL HOUSING SCREW
    SERIAL 00000000-01951139
    NUT,FLYWHEEL HOUSING SCREW
    SERIAL 00000000-01951139
  • 7
    10-37612 SCREW,FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 01951140-02726998
    SCREW,FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 01951140-02726998
  • 8
    10-34354 SCREW,BRACKET AND FLYWHEEL HSG.TO CYLINDER BLOCK(1 1/2")
    SERIAL 01951140-02726998
    SCREW,BRACKET AND FLYWHEEL HSG.TO CYLINDER BLOCK(1 1/2")
    SERIAL 01951140-02726998
  • 8
    10-358701 SCREW,BRACKET AND FLYWHEEL HSG.TO CYLINDER BLOCK (2")
    SERIAL 01951140-02726998
    SCREW,BRACKET AND FLYWHEEL HSG.TO CYLINDER BLOCK (2")
    SERIAL 01951140-02726998
  • 9
    13-35048 LOCKWASHER,BRACKET AND FLYWHEEL HOUSING SCREW
    SERIAL 01951140-02726998
    LOCKWASHER,BRACKET AND FLYWHEEL HOUSING SCREW
    SERIAL 01951140-02726998
  • 10
    11-32219 NUT,BRACKET AND FLYWHEEL HOUSING SCREW
    SERIAL 01951140-02726998
    NUT,BRACKET AND FLYWHEEL HOUSING SCREW
    SERIAL 01951140-02726998
  • 7
    10-37612 SCREW,FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 02786857-09999999
    SCREW,FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 02786857-09999999
  • 8
    10-98556 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 3/4")
    SERIAL 02786857-09999999
    SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 3/4")
    SERIAL 02786857-09999999
  • 9
    13-35048 LOCKWASHER,FLYWHEEL HOUSING SCREW
    SERIAL 02786857-09999999
    LOCKWASHER,FLYWHEEL HOUSING SCREW
    SERIAL 02786857-09999999
  • 10
    11-32219 NUT,FLYWHEEL HOUSING SCREW
    SERIAL 02786857-09999999
    NUT,FLYWHEEL HOUSING SCREW
    SERIAL 02786857-09999999
  • 11
    32786 TAB,WIRING HARNESS TO FLYWHEEL HOUSING
    SERIAL 00000000-02046624
    TAB,WIRING HARNESS TO FLYWHEEL HOUSING
    SERIAL 00000000-02046624
  • 12
    54-22690 CLAMP,WIRING HARNESS TO FLYSHEEL HOUSING
    SERIAL 00000000-02046624
    CLAMP,WIRING HARNESS TO FLYSHEEL HOUSING
    SERIAL 00000000-02046624
  • 12
    54-22627 CLAMP,WIRING HARNESS TO FLYWHEEL HOUSING
    SERIAL 00000000-02046624
    CLAMP,WIRING HARNESS TO FLYWHEEL HOUSING
    SERIAL 00000000-02046624
  • 13
    10-20191 SCREW,WIRING HARNESS CLAMP ATTACHING
    SERIAL 00000000-02046624
    SCREW,WIRING HARNESS CLAMP ATTACHING
    SERIAL 00000000-02046624
  • 14
    13-26995 LOCKWASHER,WIRING HARNESS CLAMP SCREW
    SERIAL 00000000-02046624
    LOCKWASHER,WIRING HARNESS CLAMP SCREW
    SERIAL 00000000-02046624
  • 15
    8M0084613 "D" WASHER,WIRING HARNESS CLAMP SCREW
    SERIAL 00000000-02046624
    "D" WASHER,WIRING HARNESS CLAMP SCREW
    SERIAL 00000000-02046624
  • 16
    11-26419 NUT,WIRING HARNESS CLAMP SCREW
    SERIAL 00000000-02046624
    NUT,WIRING HARNESS CLAMP SCREW
    SERIAL 00000000-02046624
  • 12
    54-24871 CLAMP,WIRING HARNESS TO FLYWHEEL HOSUING
    SERIAL 02046625-02726998
    CLAMP,WIRING HARNESS TO FLYWHEEL HOSUING
    SERIAL 02046625-02726998
  • 13
    10-22028 SCREW,WIRING HARNESS CLAMP ATTACHING
    SERIAL 02046625-02726998
    SCREW,WIRING HARNESS CLAMP ATTACHING
    SERIAL 02046625-02726998
  • 14
    13-26996 LCOKWASHER,WIRING HARNESS CLAMP SCREW
    SERIAL 02046625-02726998
    LCOKWASHER,WIRING HARNESS CLAMP SCREW
    SERIAL 02046625-02726998
  • 17
    39974 CONNECTOR,HARNESS LEADS TO FLYWHEEL HOUSING
    SERIAL 02046625-02726998
    CONNECTOR,HARNESS LEADS TO FLYWHEEL HOUSING
    SERIAL 02046625-02726998
  • 18
    10-37892 SCREW,CONNECTOR TO FLYWHEEL HOUSING (7/8")
    SERIAL 02046625-02726998
    SCREW,CONNECTOR TO FLYWHEEL HOUSING (7/8")
    SERIAL 02046625-02726998
  • 12
    54-24871 CLAMP,WIRING HARNESS TO FLYWHEEL HOUSING
    SERIAL 02786857-09999999
    CLAMP,WIRING HARNESS TO FLYWHEEL HOUSING
    SERIAL 02786857-09999999
  • 13
    10-22028 SCREW,WIRING HARNESS CLAMP ATTACHING
    SERIAL 02786857-09999999
    SCREW,WIRING HARNESS CLAMP ATTACHING
    SERIAL 02786857-09999999
  • 14
    13-26996 LOCKWASHER,WIRING HARNESS CLAMP SCREW
    SERIAL 02786857-09999999
    LOCKWASHER,WIRING HARNESS CLAMP SCREW
    SERIAL 02786857-09999999
  • 17
    39974 CONNECTOR,HARNESS LEADS TO FLYWHEEL HOUSING
    SERIAL 02786857-09999999
    CONNECTOR,HARNESS LEADS TO FLYWHEEL HOUSING
    SERIAL 02786857-09999999
  • 18
    10-47618 SCREW,CONNECTOR TO FLYWHEEL HOUSING (1")
    SERIAL 02786857-09999999
    SCREW,CONNECTOR TO FLYWHEEL HOUSING (1")
    SERIAL 02786857-09999999
  • 19
    32832 MOUNT,FLYWHEEL HOUSING (LEFT)
    MOUNT,FLYWHEEL HOUSING (LEFT)
  • 19
    8M0103028 MOUNT,FLYWHEEL HOUSING (RIGHT)
    MOUNT,FLYWHEEL HOUSING (RIGHT)
  • 20
    54-72531 EYE,LIFTING-CYLINDER BLOCK
    EYE,LIFTING-CYLINDER BLOCK
  • 21
    10-98261 SCREW,LIFTING EYE TO CYLINDER BLOCK
    SCREW,LIFTING EYE TO CYLINDER BLOCK
  • 22
    13-35048 WASHER,LIFTING EYE SCREW
    WASHER,LIFTING EYE SCREW
  • 23
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 24
    10-20314 SCREW,DRIVE-SERIAL PLATE TO CYLINDER BLCOK
    SCREW,DRIVE-SERIAL PLATE TO CYLINDER BLCOK
  • 25
    73571A2 BRACKET ASSEMBLY,FRONT MOUNTING
    BRACKET ASSEMBLY,FRONT MOUNTING
  • 26
    23-99322 SPACER,FRONT MOUNTING BRACKET
    SPACER,FRONT MOUNTING BRACKET
  • 27
    32833 MOUNT,FRONT MOUNTING BRACKET
    MOUNT,FRONT MOUNTING BRACKET
  • 28
    8M0046293 BLOC,SPACER-FRONT MOUNTIONG BRACKET
    BLOC,SPACER-FRONT MOUNTIONG BRACKET
  • 29
    10-8M2021918 SCREW,BRACKET AND SPACER BLOCK TO CYLINDER BLOCK (4 1/2")
    SCREW,BRACKET AND SPACER BLOCK TO CYLINDER BLOCK (4 1/2")
  • 30
    13-32993 LOCKWASHER,BRACKET AND SPACEER BLOCK SCREW
    LOCKWASHER,BRACKET AND SPACEER BLOCK SCREW
  • 31
    12-22248 WASHER,BRACKET AND SPACER BLOCK SCREW
    WASHER,BRACKET AND SPACER BLOCK SCREW
  • 32
    10-26486 SCREW,FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 3/8")
    SCREW,FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 3/8")
  • 33
    10-37612 SCREW,FRONT MOUNTING BRACKET TO CYLINDER BLOCK(1 1/4")
    SERIAL 00000000-02361801
    SCREW,FRONT MOUNTING BRACKET TO CYLINDER BLOCK(1 1/4")
    SERIAL 00000000-02361801
  • 34
    10-34354 SCREW,FRONT ,MOUNTING BRACKET TO CYLINDER BLOCK (1 1/2")
    SERIAL 00000000-02361801
    SCREW,FRONT ,MOUNTING BRACKET TO CYLINDER BLOCK (1 1/2")
    SERIAL 00000000-02361801
  • 35
    13-35048 LOCKWASHER,FRONT MOUNTING BRACKET SCREW
    LOCKWASHER,FRONT MOUNTING BRACKET SCREW
  • 36
    12-37828 WASHER,FRONT MOUNTING BRACKET SCREW
    WASHER,FRONT MOUNTING BRACKET SCREW
  • 37
    16-36100T STUD,ADJUSTING-FRONT MOUNTING BRACKET
    STUD,ADJUSTING-FRONT MOUNTING BRACKET
  • 38
    12-36103 WASHER,FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER,FRONT MOUNTING BRACKET ADJUSTING STUD
  • 39
    12-32638 WASHER,FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER,FRONT MOUNTING BRACKET ADJUSTING STUD
  • 40
    12-20959 WASHER,FRONT MOUNTING BRACKET AJUSTIONG STUD
    WASHER,FRONT MOUNTING BRACKET AJUSTIONG STUD
  • 41
    23-36101 SPACER,FRONT MOUNTING BRACKET ADJUSTING STUD
    SPACER,FRONT MOUNTING BRACKET ADJUSTING STUD
  • 42
    12-36104 WASHER,RUBBER-FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER,RUBBER-FRONT MOUNTING BRACKET ADJUSTING STUD
  • 43
    11-82671317 NUT ,FRONT MOUNTING BRACKET ADJUSTING STUD
    NUT ,FRONT MOUNTING BRACKET ADJUSTING STUD
  • 44
    11-32882 NUT,FRONT MOUNTING BRACKET ADJUSTING STUD
    NUT,FRONT MOUNTING BRACKET ADJUSTING STUD
  • 45
    32778T SUPPORT,FRONT-ENGINE MOUNT
    SUPPORT,FRONT-ENGINE MOUNT
  • 45A
    32849 SUPPORT,FRONT-ENGINE MOUNT
    SUPPORT,FRONT-ENGINE MOUNT
  • 46
    13-33065 SLEEVE,FRONT MOUNTING BRACKET ADJUSTING STUD
    SLEEVE,FRONT MOUNTING BRACKET ADJUSTING STUD
  • 47
    13-33065 LOCKWASHER,FRONT MOUNTING BRACKET ADJUSTING STUD
    LOCKWASHER,FRONT MOUNTING BRACKET ADJUSTING STUD
  • 48
    11-8M0041651 NUT,JAM-FRONT MOUNTING BRACKET ADJUSTING STUD(BOTTOM)
    NUT,JAM-FRONT MOUNTING BRACKET ADJUSTING STUD(BOTTOM)
