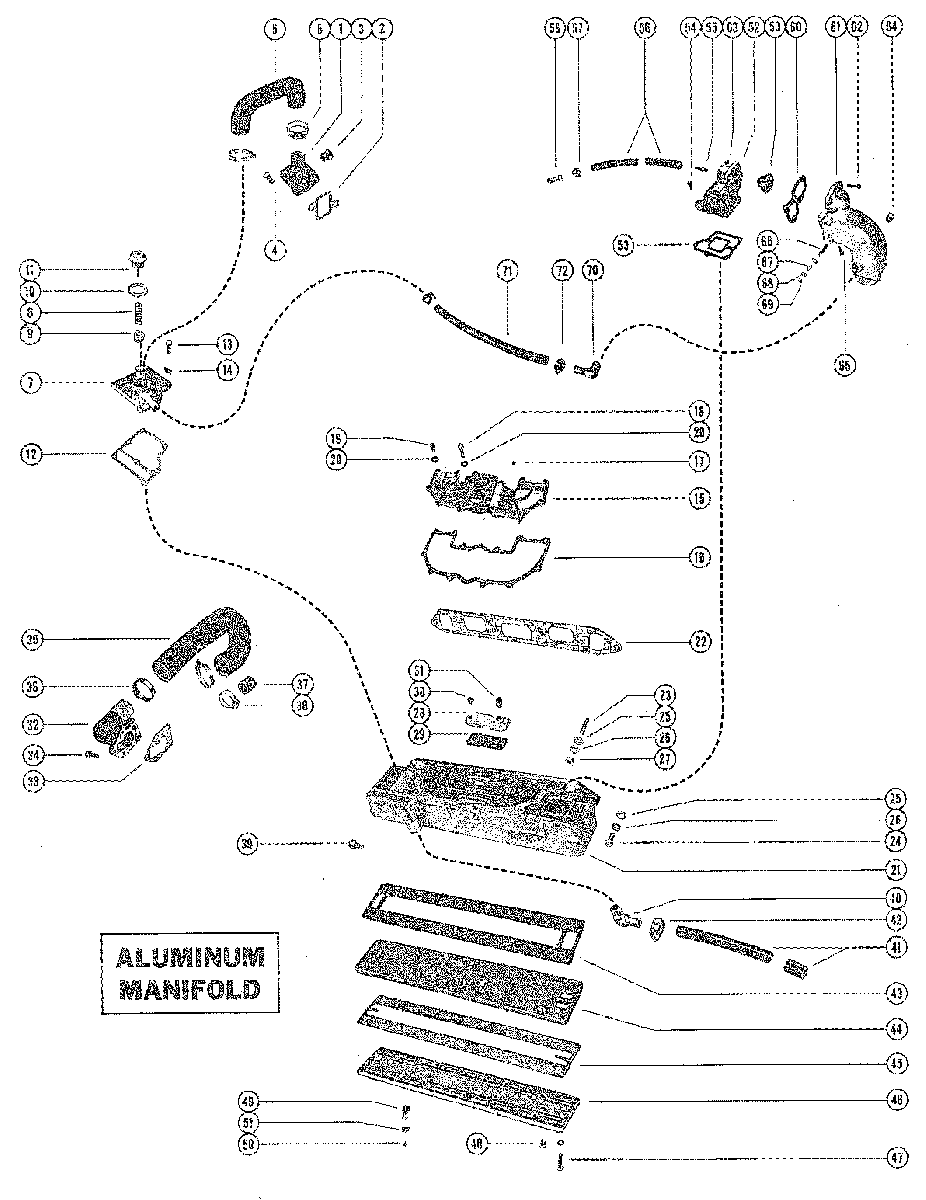

EXHAUST MANIFOLD ASSEM (ALUMINUM)(SERIAL # 1666601-1725592) для Mercruiser - 120 GM 153 I/L4 1964-1972 1666601 THRU 3377340
-
№АртикулНазвание
-
138057T ELBOW, WATER OUTLET - CYLINDER HEADELBOW, WATER OUTLET - CYLINDER HEAD
-
227-8146801 GASKET, WATER OUTLET ELBOWGASKET, WATER OUTLET ELBOW
-
322-32804 PLUG, PIPE WATER OUTLET ELBOWPLUG, PIPE WATER OUTLET ELBOW
-
410-21077 SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
-
532-33485 HOSE, WATER OUTLET ELBOW TO RELIEF VALVE BODYHOSE, WATER OUTLET ELBOW TO RELIEF VALVE BODY
-
654-815504220 CLAMP, HOSE TO WATER OUTLET ELBOW AND RELIEF VALVE BODYCLAMP, HOSE TO WATER OUTLET ELBOW AND RELIEF VALVE BODY
-
738058A1 BODY ASSEMBLY, RELIEF VALVEBODY ASSEMBLY, RELIEF VALVE
-
824-35087A1 SPRING ASSEMBLY, RELIEF VALVE BODYSPRING ASSEMBLY, RELIEF VALVE BODY
-
935086 BUTTON, CHECK VALVE - RELIEF VALVE BODYBUTTON, CHECK VALVE - RELIEF VALVE BODY
-
1027-32019 GASKET, RELIEF VALVE BODY CAPGASKET, RELIEF VALVE BODY CAP
-
1132729A1 CAP ASSEMBLY, RELIEF VALVE BODYCAP ASSEMBLY, RELIEF VALVE BODY
-
1227-35144 GASKET, RELIEF VALVE BODYGASKET, RELIEF VALVE BODY
-
1310-39970 SCREW, RELIEF VALVE BODY TO EXHAUST MANIFOLD BODY(1")SCREW, RELIEF VALVE BODY TO EXHAUST MANIFOLD BODY(1")
-
1453-78201 RETAINER, RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRINGRETAINER, RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRING
-
1532683 COVER, INTAKE MANIFOLDCOVER, INTAKE MANIFOLD
-
1627-34047 GASKET, INTAKE MANIFOLD COVERGASKET, INTAKE MANIFOLD COVER
-
1722-36382 PLUG, PIPE - INTAKE MANIFOLD COVERPLUG, PIPE - INTAKE MANIFOLD COVER
-
1810-86885 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 5/8)SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 5/8)
-
1910-35582 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
-
2013-26992 LOCKWASHER, INTAKE MANIFOLD COVER SCREWLOCKWASHER, INTAKE MANIFOLD COVER SCREW
-
2139950A4 BODY, EXHAUST MANIFOLDBODY, EXHAUST MANIFOLD
-
2227-52546 GASKET, EXHAUST MANFOLD BODY TO CYLINDER HEADGASKET, EXHAUST MANFOLD BODY TO CYLINDER HEAD
-
2316-49915 STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
-
2410-21077 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
-
2512-20553 WASHER, EXHAUST MANIFOLD BODY STUD AND SCREWWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
-
2613-35048 LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREWLOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
-
2711-46335 NUT, EXHAUST MANIFOLD BODY STUDNUT, EXHAUST MANIFOLD BODY STUD
-
2832797 COVER, CHOKE OVEN - EXHAUST MANIFOLD BODYCOVER, CHOKE OVEN - EXHAUST MANIFOLD BODY
-
2927-32815 GASKET, CHOKE OVEN COVERGASKET, CHOKE OVEN COVER
-
3010-72169 SCREW, CHOKE OVEN COVER TO EXHAUST MANIFOLD (1/2")SCREW, CHOKE OVEN COVER TO EXHAUST MANIFOLD (1/2")
-
3122-21373 CONNECTOR, CHOKE OVEN COVER TO CHOKE PIPECONNECTOR, CHOKE OVEN COVER TO CHOKE PIPE
-
3235149 ELBOW, WATER OUTLET - EXHAUST MANIFOLD BODYELBOW, WATER OUTLET - EXHAUST MANIFOLD BODY
-
3327-35150 GASKET, EXHAUST MANIFOLD ELBOWGASKET, EXHAUST MANIFOLD ELBOW
-
3410-39970 SCREW, WATER OUTLET ELBOW TO EXHAUST MANIFOLD BODY(1")SCREW, WATER OUTLET ELBOW TO EXHAUST MANIFOLD BODY(1")
-
3532-33484 HOSE, WATER OUTLET ELBOW TO WATER PUMPHOSE, WATER OUTLET ELBOW TO WATER PUMP
-
3654-815504228 CLAMP, HOSE TO WATER OUTLET ELBOW AND WATER PUMPCLAMP, HOSE TO WATER OUTLET ELBOW AND WATER PUMP
-
3732877 COVER, WATER PUMPCOVER, WATER PUMP
-
3854-815504412 CLAMP, WATER PUMP COVER TO WATER PUMPCLAMP, WATER PUMP COVER TO WATER PUMP
-
3910-25299 SCREW, WATER PUMP FLANGE (3/4")SCREW, WATER PUMP FLANGE (3/4")
-
4022-32715 ELBOW, WATER INLET HOSE - EXHAUST MANIFOLD BODYELBOW, WATER INLET HOSE - EXHAUST MANIFOLD BODY
-
4132-47642 HOSE,WATER INLET-EXHAUST MANIFOLD BODY ELBOW-DR. UNIT 26 1/8HOSE,WATER INLET-EXHAUST MANIFOLD BODY ELBOW-DR. UNIT 26 1/8
-
4254-815504310 CLAMP, HOSE TO EXHAUST MANIFOLD BODY ELBOW AND DRIVE UNITCLAMP, HOSE TO EXHAUST MANIFOLD BODY ELBOW AND DRIVE UNIT
-
4327-35140 GASKET, INNER WATER JACKET COVER TO EXHAUST MANIFOLD BODYGASKET, INNER WATER JACKET COVER TO EXHAUST MANIFOLD BODY
-
4435139 COVER, WATER JACKET - INNERCOVER, WATER JACKET - INNER
-
4527-35142 GASKET, OUTER COVER TO INNER COVERGASKET, OUTER COVER TO INNER COVER
-
4635141 COVER, WATER JACKET - OUTERCOVER, WATER JACKET - OUTER
-
4710-35385 SCREW, OUTER AND INNER COVERS TO EXHAUST MANIFOLD BODY (1 3/)SCREW, OUTER AND INNER COVERS TO EXHAUST MANIFOLD BODY (1 3/)
-
4822-328022 PLUG, PIPE - OUTER WATER JACKET COVERPLUG, PIPE - OUTER WATER JACKET COVER
-
4954-28938 CLAMP, WIRING HARNESS TO OUTER WATER JACKET COVERCLAMP, WIRING HARNESS TO OUTER WATER JACKET COVER
-
5010-98253 SCREW, WIRING HARNESS CLAMP TO OUTER WATER JACKET COVER (1/2)SCREW, WIRING HARNESS CLAMP TO OUTER WATER JACKET COVER (1/2)
-
518M0084613 "D:" WASHER, WIRING HARNESS CLAMP SCREW"D:" WASHER, WIRING HARNESS CLAMP SCREW
-
5235145A1 CONTAINER, THERMOSTAT - EXHAUST MANIFOLD BODYCONTAINER, THERMOSTAT - EXHAUST MANIFOLD BODY
-
5327-35146 GASKET, THERMOSTAT CONTAINERGASKET, THERMOSTAT CONTAINER
-
5410-39970 SCREW, THERMOSTAT CONTAINER TO EXHAUST MANIFOLD (1")SCREW, THERMOSTAT CONTAINER TO EXHAUST MANIFOLD (1")
-
5522-33060 NIPPLE, BLEED HOSE TO THERMOSTAT CONTAINERNIPPLE, BLEED HOSE TO THERMOSTAT CONTAINER
-
5632-8M0108355 HOSE,BLEED-WATER OUTLET ELBOW TO THERMOSTAT CONTAINER 19 3/8HOSE,BLEED-WATER OUTLET ELBOW TO THERMOSTAT CONTAINER 19 3/8
-
5754-20386 CLAMP, BLEED HOSE FASTENINGCLAMP, BLEED HOSE FASTENING
-
5822-33060 NIPLE, BLEED HOSE TO WATER OUTLET ELBOWNIPLE, BLEED HOSE TO WATER OUTLET ELBOW
-
598M0089715 THERMOSTATTHERMOSTAT
-
6027-35147 GASKET, EXHAUST ELBOWGASKET, EXHAUST ELBOW
-
6110-35156 ELBOW, EXHAUST - THERMOSTAT CONTAINERELBOW, EXHAUST - THERMOSTAT CONTAINER
-
6210-35156 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(1 1/4")SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(1 1/4")
-
6311-24652 NUT, EXHAUST ELBOW SCREWNUT, EXHAUST ELBOW SCREW
-
6422-32803 PLUG, PIPE - EXHAUST ELBOWPLUG, PIPE - EXHAUST ELBOW
-
6510-39970 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(LOWER) - 1"SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(LOWER) - 1"
-
6616-728091 TE CONTROL CABLE TO EXHAUST ELBOWTE CONTROL CABLE TO EXHAUST ELBOW
-
6723-31866 SPACER, REMOTE CONTROL CABLE STUDSPACER, REMOTE CONTROL CABLE STUD
-
6812-69056 WASHER, REMOTE CONTROL CABLE STUDWASHER, REMOTE CONTROL CABLE STUD
-
6911-826709109 NUT, REMOTE CONTROL CABLE STUDNUT, REMOTE CONTROL CABLE STUD
-
7022-32715 ELBOW, DRAIN HOSE - EXHAUST ELBOWELBOW, DRAIN HOSE - EXHAUST ELBOW
-
7132-47642 HOSE, DRAIN - RELIEF VALVE BODY TO EXHAUST ELBOWHOSE, DRAIN - RELIEF VALVE BODY TO EXHAUST ELBOW
-
7254-815504310 CLAMP, DRAIN HOSE TO RELIEF VALVE BODY AND EXHAUST ELBOWCLAMP, DRAIN HOSE TO RELIEF VALVE BODY AND EXHAUST ELBOW
