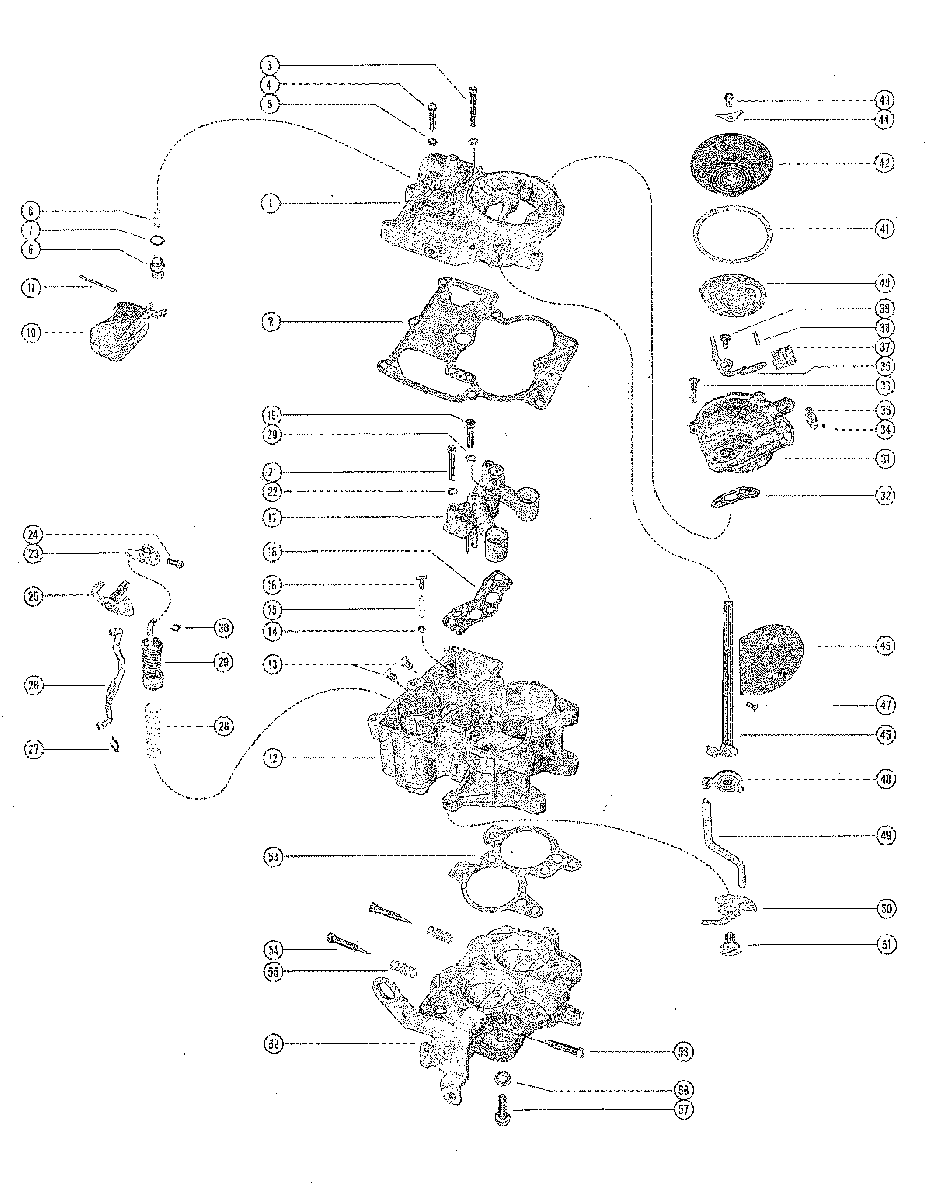

CARBURETOR ASSEMBLY для Mercruiser - 120 GM 153 I/L4 1964-1972 1666601 THRU 3377340

№

Артикул

Название
-

1336-3594A1 CARBURETOR ASSEMBLY, COMPLETE
SERIAL 00000000-02520424

CARBURETOR ASSEMBLY, COMPLETE
SERIAL 00000000-02520424
-

1336-3594A1 CARBURETOR ASSEMBLY, COMPLETE
SERIAL 02520425-09999999

CARBURETOR ASSEMBLY, COMPLETE
SERIAL 02520425-09999999
1

1397-3823A1 AIR HORN
SERIAL 00000000-02520425

AIR HORN
SERIAL 00000000-02520425
1

1397-3823 AIR HORN
SERIAL 02520425-09999999

AIR HORN
SERIAL 02520425-09999999
2

90-8M0143356 GASKET AIR HORN

GASKET AIR HORN
3

10-33048 SCREW, AIR HORN TO FLOAT BOWL (LONG)

SCREW, AIR HORN TO FLOAT BOWL (LONG)
4

10-33043 SCREW, AIR HOR TO FLOAT BOWL (SHORT)

SCREW, AIR HOR TO FLOAT BOWL (SHORT)
5

13-26996 LOCKWASHER, AIR HORN TO FLOAT BOWL SCREW

LOCKWASHER, AIR HORN TO FLOAT BOWL SCREW
6

90-8M0143356 STRAINER, INLET NEEDLE AND SEAT

STRAINER, INLET NEEDLE AND SEAT
7

90-8M0143356 GASKET, INLET NEEDLE AND SEAT

GASKET, INLET NEEDLE AND SEAT
8

90-8M0143356 INLET NEEDLE AND SEAT ASSEMBLY

INLET NEEDLE AND SEAT ASSEMBLY
10

1397-2060 FLOAT ASSEMBLY

FLOAT ASSEMBLY
11

17-33037 PIN, HINGE - FLOAT TO AIR HORN

PIN, HINGE - FLOAT TO AIR HORN
12

1397-2075 FLOAT BOWL ASSEMBLY

FLOAT BOWL ASSEMBLY
13

1397-2448 JET, FLOAT BOWL(STANDARD)
SERIAL 00000000-02520424

JET, FLOAT BOWL(STANDARD)
SERIAL 00000000-02520424
13

1397-3827 JET, FLOAT BOWL(STANARD)
SERIAL 02520425-09999999

JET, FLOAT BOWL(STANARD)
SERIAL 02520425-09999999
14

90-8M0143356 BALL, PUMP DISCHARGE - FLOAT BOWL

BALL, PUMP DISCHARGE - FLOAT BOWL
15

90-8M0143356 SPRING, PUMP DISCHARGE - FLOAT BOWL

SPRING, PUMP DISCHARGE - FLOAT BOWL
16

90-8M0143356 GUIDE, PUMP DISCHARGE - FLOAT BOWL

GUIDE, PUMP DISCHARGE - FLOAT BOWL
17

1397-2058 VENTURI CLUSTER ASSEMBLY, FLOAT BOWL
SERIAL 00000000-02520424

VENTURI CLUSTER ASSEMBLY, FLOAT BOWL
SERIAL 00000000-02520424
17

1397-3826 VENTURI CLUSTER ASSEMBLY, FLOAT BOWL
SERIAL 02510425-09999999

VENTURI CLUSTER ASSEMBLY, FLOAT BOWL
SERIAL 02510425-09999999
18

90-8M0143356 GASKET, VENTURI CLUSTER

GASKET, VENTURI CLUSTER
19

10-33034 SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)

SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)
20

90-8M0143356 GASKET, VENTURI CLUSTER TO FLOAT BOWL SCREW (CENTER)

GASKET, VENTURI CLUSTER TO FLOAT BOWL SCREW (CENTER)
21

10-33033 SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)

SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)
22

13-26995 LOCKWASHER, VENTURI CLUSTER TO FLOAT BOWL SCREW (OUTER)

LOCKWASHER, VENTURI CLUSTER TO FLOAT BOWL SCREW (OUTER)
23

1397-2048 LEVER, PUMP - AIR HORN

LEVER, PUMP - AIR HORN
24

10-33047 SCREW, AIR HORN PUMP LEVER

SCREW, AIR HORN PUMP LEVER
25

1397-2054 PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN

PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN
26

1397-2051 ROD, PUMP

ROD, PUMP
27

90-8M0143356 CLIP, RETAINER - PUMP ROD

CLIP, RETAINER - PUMP ROD
28

90-8M0143356 SPRING, FLOAT BOWL PUMP RETURN

SPRING, FLOAT BOWL PUMP RETURN
29

90-8M0143356 PUMP ASSEMBLY, FLOAT BOWL

PUMP ASSEMBLY, FLOAT BOWL
30

90-8M0143356 CLIP, RETAINER - FLOAT BOWL PUMP

CLIP, RETAINER - FLOAT BOWL PUMP
31

1397-2064 CHOKEHOUSING ASSEMBLY

CHOKEHOUSING ASSEMBLY
32

90-8M0143356 GASKET, CHOKE HOUSING

GASKET, CHOKE HOUSING
33

10-33053 SCREW, CHOKE HOUSING TO AIR HORN

SCREW, CHOKE HOUSING TO AIR HORN
34

1397-2050 PLUG, BALL - CHOKE HOUSING

PLUG, BALL - CHOKE HOUSING
35

19-33041 WELCH PLUG, CHOKE HOUSING

WELCH PLUG, CHOKE HOUSING
36

1397-2066 LEVER ASSEMBLY, CHOKE PISTON

LEVER ASSEMBLY, CHOKE PISTON
37

1397-2059 CHOKE PISTON, CHOKE HOUSING

CHOKE PISTON, CHOKE HOUSING
38

17-33049 PIN, CHOKE PISTON TO CHOKE PISTON LEVER

PIN, CHOKE PISTON TO CHOKE PISTON LEVER
39

10-33056 SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING

SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING
40

1397-2057 PLATE, BAFFLE - CHOKE HOUSING

PLATE, BAFFLE - CHOKE HOUSING
41

90-8M0143356 GASKET, STAT COVER AND COIL

GASKET, STAT COVER AND COIL
42

1397-2074 STAT COVER AND COIL ASSEMBLY

STAT COVER AND COIL ASSEMBLY
43

10-33047 SCREW, STAT COVER AND COIL TO CHOKE HOUSING

SCREW, STAT COVER AND COIL TO CHOKE HOUSING
44

54-33036 RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW

RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW
45

1397-2065 CHOKE SHAFT ASSEMBLY

CHOKE SHAFT ASSEMBLY
46

1397-2047 VALVE, CHOKE - CHOKE SHAFT
SERIAL 00000000-02520424

VALVE, CHOKE - CHOKE SHAFT
SERIAL 00000000-02520424
46

1397-4358 VALVE, CHOKE - CHOKE SHAFT
SERIAL 02520425-09999999

VALVE, CHOKE - CHOKE SHAFT
SERIAL 02520425-09999999
47

10-33045 SCREW, CHOKE VALVE TO CHOKE SHAFT

SCREW, CHOKE VALVE TO CHOKE SHAFT
48

1397-4257 CHOKE LEVER AND COLAR ASSEMBLY, CHOKE SHAFT

CHOKE LEVER AND COLAR ASSEMBLY, CHOKE SHAFT
49

1397-2052 ROD, CHOKE

ROD, CHOKE
50

1397-8877 CAM, FAST IDLE - FLOAT BOWL

CAM, FAST IDLE - FLOAT BOWL
51

10-33042 SCREW, FAST IDLE CAM TO FLOAT BOWL

SCREW, FAST IDLE CAM TO FLOAT BOWL
52

1397-2070 THROTTLE BODY ASSEMBLY

THROTTLE BODY ASSEMBLY
53

90-8M0143356 GASKET, THROTTLE BODY

GASKET, THROTTLE BODY
54

1397-2120 IDLE ADJUSTING NEEDLE, THROTTLE BODY
SERIAL 00000000-02520424

IDLE ADJUSTING NEEDLE, THROTTLE BODY
SERIAL 00000000-02520424
54

1397-2120 IDLE ADJUSTING NEEDLE, THROTTLE BODY
SERIAL 02520425-09999999

IDLE ADJUSTING NEEDLE, THROTTLE BODY
SERIAL 02520425-09999999
55

24-33050 SPRING, IDLE ADJUSTING NEEDLE

SPRING, IDLE ADJUSTING NEEDLE
56

1397-2061 IDLE STOP SCREW, THROTTLE BODY

IDLE STOP SCREW, THROTTLE BODY
57

10-33052 SCREW, THROTTLE BODY TO FLOAT BOWL

SCREW, THROTTLE BODY TO FLOAT BOWL
58

13-21547 LOCKWASHER, THROTTLE BODY TO FLOAT BOWL SCREW

LOCKWASHER, THROTTLE BODY TO FLOAT BOWL SCREW
--

27-64692 GASKET, CARBURETOR FLANGE(INCLUDED WITH)

GASKET, CARBURETOR FLANGE(INCLUDED WITH)
--

1397-2072 OVERHAUL KIT

OVERHAUL KIT
--

823427A1 POWER CARBURETOR KIT

POWER CARBURETOR KIT
--

1397-2073 GASKET KIT

GASKET KIT
--

1397-2213 ALTITUDE KIT(5,000 FT.)

ALTITUDE KIT(5,000 FT.)
--

1397-2214 ALTITUDE KIT(10,000 FT.)

ALTITUDE KIT(10,000 FT.)
