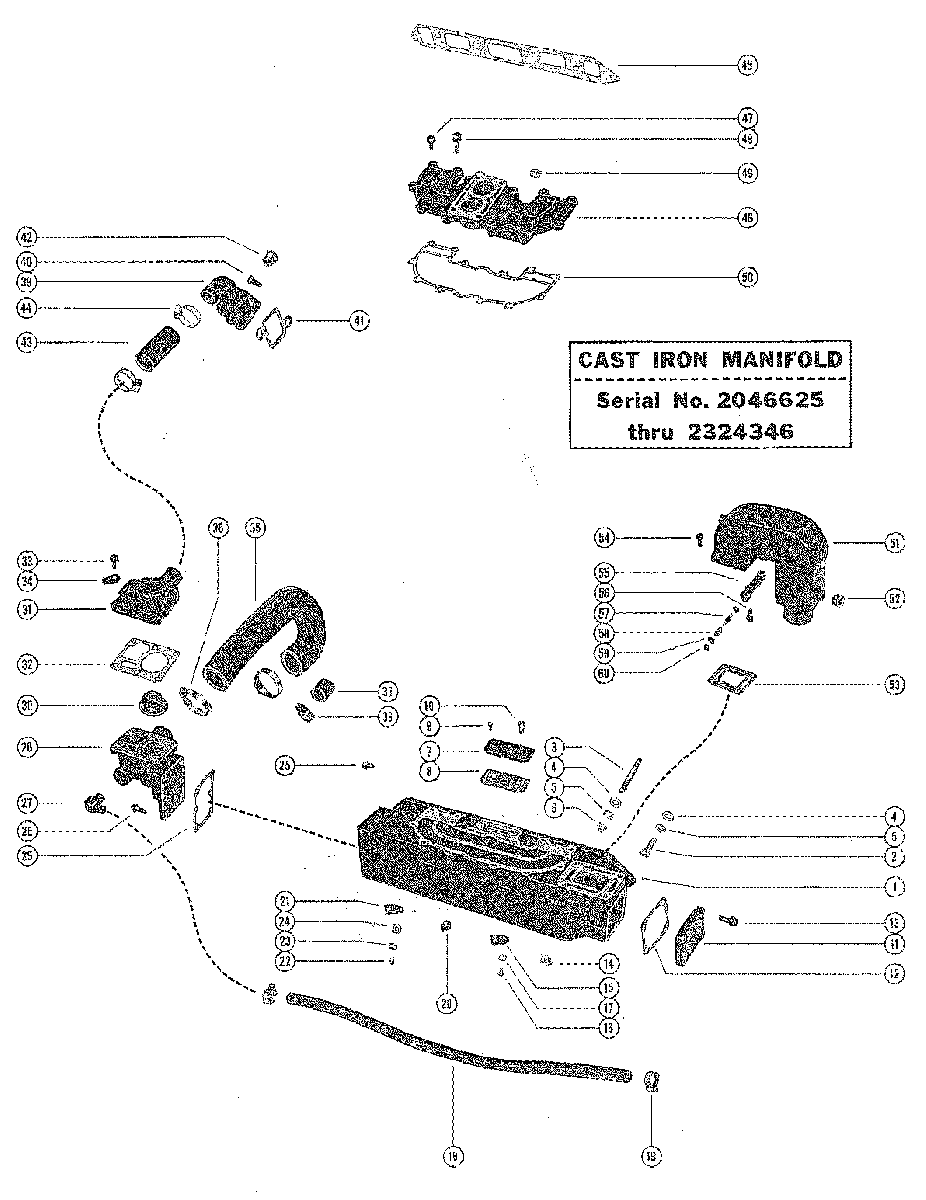

EXHAUST MANIFOLD ASSEM (CAST IRON)(SERIAL # 2046625-2324346) для Mercruiser - 120 GM 153 I/L4 1964-1972 1666601 THRU 3377340
-
№АртикулНазвание
-
163122A14 BODY, EXHAUST MANIFOLDBODY, EXHAUST MANIFOLD
-
210-21077 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
-
210-37612 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/4")SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/4")
-
316-49915 STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
-
412-20553 WASHER, EXHAUST MANIFOLD BODY STUD AND SCREWWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
-
513-35048 LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREWLOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
-
611-20087 NUT, EXHAUST MANIFOLD BODY AND STUDNUT, EXHAUST MANIFOLD BODY AND STUD
-
739949T COVER, CHOKE OVEN - EXHAUST MANIFOLD BODYCOVER, CHOKE OVEN - EXHAUST MANIFOLD BODY
-
827-39947 GASKET, CHOKE OVEN COVERGASKET, CHOKE OVEN COVER
-
1022-21373 CONNECTOR, CHOKE OVEN COVER TO CHOKE PIPECONNECTOR, CHOKE OVEN COVER TO CHOKE PIPE
-
1173811A1 END CAP, EXHAUST MANIFOLD BODYEND CAP, EXHAUST MANIFOLD BODY
-
1227-39923 GASKET, END CAPGASKET, END CAP
-
1310-39970 SCREW, END CAP TO EXHAUST MANIFOLD BODY (1")SCREW, END CAP TO EXHAUST MANIFOLD BODY (1")
-
1422-328022 PLUG, PIPE - EXHAUST MANIFOLD BODY (1/8-27)PLUG, PIPE - EXHAUST MANIFOLD BODY (1/8-27)
-
1554-28938 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODYCLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY
-
1610-98253 SCREW, WIRING HARNESS CLAMP FASTENING (1/2")SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
-
1713-26992 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
1832-47642 HOSE, INLET - WATER DISTRIBUTION BLOCK TO DRIVE UNIT (36")HOSE, INLET - WATER DISTRIBUTION BLOCK TO DRIVE UNIT (36")
-
1954-815504310 CLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNITCLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNIT
-
2022-416223 PLUG, EXHAUST MANIFOLD BODY (3/4-14)PLUG, EXHAUST MANIFOLD BODY (3/4-14)
-
2154-22740 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY (3/8")CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY (3/8")
-
2210-22028 SCREW, WIRING HARNESS CLAMP FASTENING (1/2")SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
-
2313-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
248M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW"D" WASHER, WIRING HARNESS CLAMP SCREW
-
2510-25299 SCREW, WATER PUMP FLANGE (3/4")SCREW, WATER PUMP FLANGE (3/4")
-
2639921 BLOCK, WATER DISTRIBUTION - EXHAUST MANIFOLD BODYBLOCK, WATER DISTRIBUTION - EXHAUST MANIFOLD BODY
-
2722-32715 ELBOW, WATER DISTRIBUTION BLOCKELBOW, WATER DISTRIBUTION BLOCK
-
2810-39970 SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD BODY 7/8SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD BODY 7/8
-
2810-73657 SCREW,WATER DISTRIBUTION BLK TO EXHAUST MANIFOLD BODY 1 1/2SCREW,WATER DISTRIBUTION BLK TO EXHAUST MANIFOLD BODY 1 1/2
-
2927-39917 GASKET, WATER DISTRIBUTION BLOCKGASKET, WATER DISTRIBUTION BLOCK
-
308M0089715 THERMOSTATTHERMOSTAT
-
3139918 CONTAINER, THERMOSTATCONTAINER, THERMOSTAT
-
3227-39914 GASKET, THERMOSTAT CONTAINERGASKET, THERMOSTAT CONTAINER
-
3310-39970 SCREW, THERMOSTAT CONTAINER TO WATER DISTRIBUTOIN BLOCK (1")SCREW, THERMOSTAT CONTAINER TO WATER DISTRIBUTOIN BLOCK (1")
-
3310-35385 SCREW,THERMOSTAT CONTAINER TO WATER DISTRIBUTION BLOCK 1 3/4SCREW,THERMOSTAT CONTAINER TO WATER DISTRIBUTION BLOCK 1 3/4
-
3453-78201 RETAINER, THERMOSTAT HOUSING SCREW - THROTTLE RETURN SPRINGRETAINER, THERMOSTAT HOUSING SCREW - THROTTLE RETURN SPRING
-
3532-33484 HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMPHOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
-
3654-815504228 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMPCLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
-
3732877 COVER, WATER PUMPCOVER, WATER PUMP
-
3854-815504412 CLAMP, WATER PUMP COVER TO WATER PUMPCLAMP, WATER PUMP COVER TO WATER PUMP
-
3939919 ELBOW, WATER OUTLET - CYLINDER HEADELBOW, WATER OUTLET - CYLINDER HEAD
-
4010-21077 SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
-
4127-8146801 GASKET, WATER OUTLET ELBOWGASKET, WATER OUTLET ELBOW
-
4222-32804 PLUG, PIPE - WATER OUTLET ELBOWPLUG, PIPE - WATER OUTLET ELBOW
-
4332-8M0062665 HOSE, WATER OUTLET ELBOW TO THERMOSTAT CONTAINER (3 3/4")HOSE, WATER OUTLET ELBOW TO THERMOSTAT CONTAINER (3 3/4")
-
4454-815504220 CLAMP, HOSE TO WATER OUTLET ELBOW AND THERMOSTAT CONTAINERCLAMP, HOSE TO WATER OUTLET ELBOW AND THERMOSTAT CONTAINER
-
4527-52546 GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEADGASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
-
4635890T COVER, INTAKE MANIFOLDCOVER, INTAKE MANIFOLD
-
4710-39970 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
-
4810-35385 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY 1 3/4"SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY 1 3/4"
-
4922-36382 PLUG, PIPR - INTAKE MANIFOLD COVER (1/4-18)PLUG, PIPR - INTAKE MANIFOLD COVER (1/4-18)
-
5027-35898T GASKET, INTAKE MANIFOLD COVERGASKET, INTAKE MANIFOLD COVER
-
5155538A2 ELBOW, EXHAUSTELBOW, EXHAUST
-
5222-416223 PLUG, EXHAUST ELBOW (3/4-14)PLUG, EXHAUST ELBOW (3/4-14)
-
5327-39915 GASKET, EXHAUST ELBOWGASKET, EXHAUST ELBOW
-
5410-39970 SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD BODY (1")SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD BODY (1")
-
5539948 BRACKET, MOUNTING - REMOTE CONTROL CABLE STUD(EXHAUST ELBOW)BRACKET, MOUNTING - REMOTE CONTROL CABLE STUD(EXHAUST ELBOW)
-
5610-39970 SCREW, MOUNTING BRACKET TO EXHAUST ELBOW (1")SCREW, MOUNTING BRACKET TO EXHAUST ELBOW (1")
-
5716-38525 STUD, REMOTE CONTROL CABLE TO MOUNTING BRACKETSTUD, REMOTE CONTROL CABLE TO MOUNTING BRACKET
-
5823-31866 SPACER, REMOTE CONTROL CABLE STUDSPACER, REMOTE CONTROL CABLE STUD
-
5912-69056 WASHER, REMOTE CONTROL CABLE STUDWASHER, REMOTE CONTROL CABLE STUD
-
6011-826709109 NUT, REMOTE CONTROL CABLE STUDNUT, REMOTE CONTROL CABLE STUD
