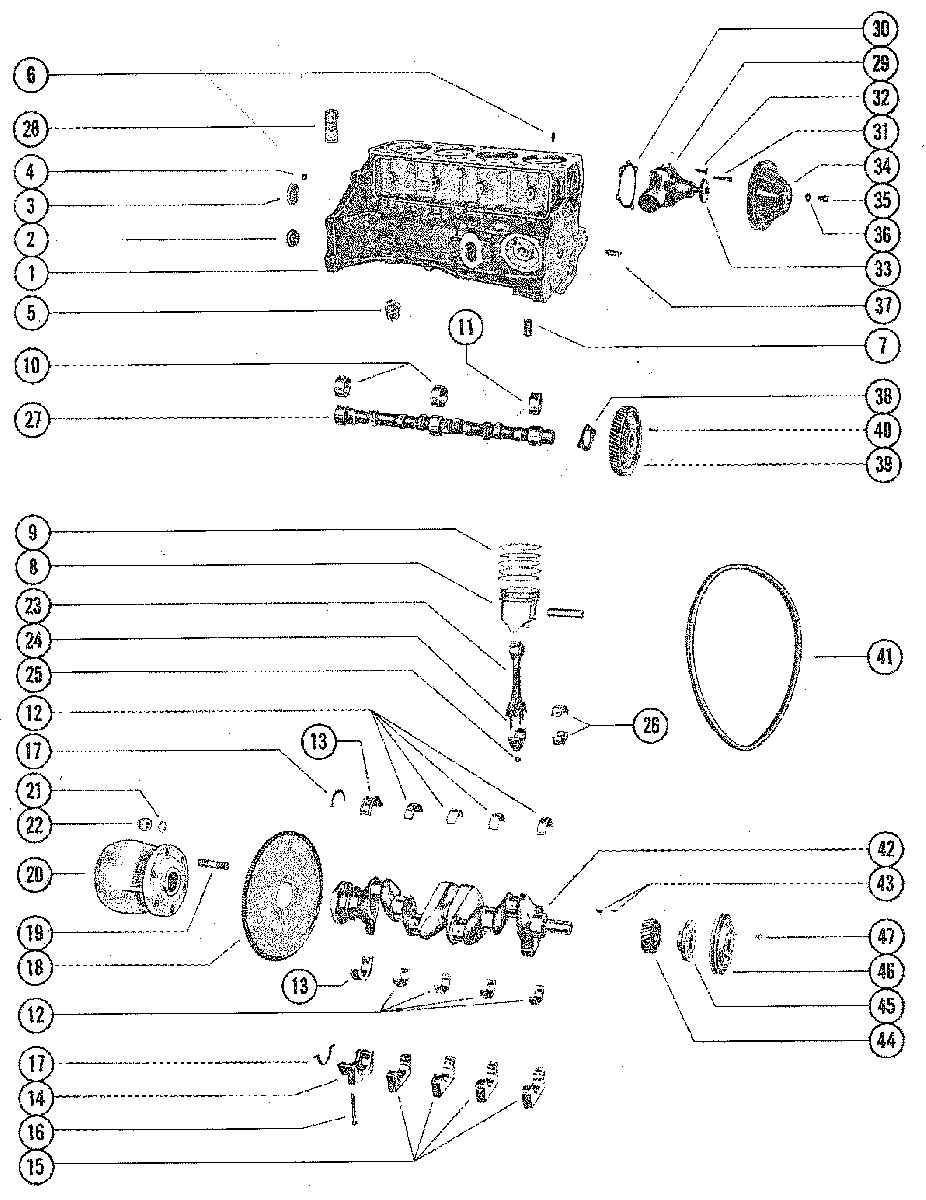

CYLINDER BLOCK,PISTON AND CRANKSHAFT для Mercruiser - 120 GM 153 I/L4 1964-1972 1666601 THRU 3377340
-
№АртикулНазвание
-
187956R1 CYLINDER BLOCK ASSEMBLY
SEE NOTE BELOW SERIAL 00000000-02361801CYLINDER BLOCK ASSEMBLY
SEE NOTE BELOW SERIAL 00000000-02361801 -
187956R1 CYLINDER BLOCK ASSEMBLY
SEE NOTE BELOW SERIAL 02361802-03377340CYLINDER BLOCK ASSEMBLY
SEE NOTE BELOW SERIAL 02361802-03377340 -
219-34270 PLUG,EXPANSION-CYLINDER BLOCK(1 5/8" DIA.)PLUG,EXPANSION-CYLINDER BLOCK(1 5/8" DIA.)
-
219-34271 PLUG,EXPANSION-CYLINDER BLOCK(2"DIA)PLUG,EXPANSION-CYLINDER BLOCK(2"DIA)
-
219-37531 PLUG,OIL CHANNEL-CYLINDER BLOCKPLUG,OIL CHANNEL-CYLINDER BLOCK
-
322-72640 PLUG,EXPANSION-CAMSHAFT BEARING HOLEPLUG,EXPANSION-CAMSHAFT BEARING HOLE
-
422-36373 PLUG,PIPE-CYLINDER BLOCK(3/8")PLUG,PIPE-CYLINDER BLOCK(3/8")
-
522-36382 PLUG,WATER DRAIN-CYLINDER BLOCKPLUG,WATER DRAIN-CYLINDER BLOCK
-
617-35465 ,PIN,DOWEL-CYLINDER BLOCK TO CYLINDER HEAD,PIN,DOWEL-CYLINDER BLOCK TO CYLINDER HEAD
-
723-35168 ,BEARING,DISTRIBUTOR PILOT SHAFT,BEARING,DISTRIBUTOR PILOT SHAFT
-
8736-2343 PISTON AND PISTON PIN ASSEMBLY(STANDARD)PISTON AND PISTON PIN ASSEMBLY(STANDARD)
-
8736-2343 PISTON AND PISTON PIN ASSEMBLY(.001O.S.)
USE STANDARD PISTON RINGSPISTON AND PISTON PIN ASSEMBLY(.001O.S.)
USE STANDARD PISTON RINGS -
8736-2343 ,PISTON AN DPISTON PIN ASSEMBLY(.002O.S.)
USE STANDARD PISTON RINGS,PISTON AN DPISTON PIN ASSEMBLY(.002O.S.)
USE STANDARD PISTON RINGS -
8733-2279 PISTONAND PISTON PIN ASSEMBLY(.020O.S.)PISTONAND PISTON PIN ASSEMBLY(.020O.S.)
-
8733-2279 PISTON AND PISTON PIN ASSEMBLY(.030O.S.)PISTON AND PISTON PIN ASSEMBLY(.030O.S.)
-
939-67132 RING,PISTON(STANDARD)RING,PISTON(STANDARD)
-
939-67120 RING,PISTON(.020O.S)RING,PISTON(.020O.S)
-
939-67134 RING,PISTON(.030O.S.)RING,PISTON(.030O.S.)
-
1023-85720T BEARING UNIT,CAMSHAFT(FRONT AND INTERMEDIATE)BEARING UNIT,CAMSHAFT(FRONT AND INTERMEDIATE)
-
1123-85720T BEARING UNIT,CAMSHAFT(REAR)BEARING UNIT,CAMSHAFT(REAR)
-
1223-818469001 BEARING UNIT,CRANKSHAFT MAIN(STANDARD)BEARING UNIT,CRANKSHAFT MAIN(STANDARD)
-
1223-818470001 BEARING UNIT,CRANKSHAFT MAIN(.001 U.S.)BEARING UNIT,CRANKSHAFT MAIN(.001 U.S.)
-
1223-52258 BEARING UNIT,CRANKSHAFT MAIN(.002U.S.)BEARING UNIT,CRANKSHAFT MAIN(.002U.S.)
-
1223-818471001 BEARING UNIT,CRANKSHAFT MAIKN(.010U.S.)BEARING UNIT,CRANKSHAFT MAIKN(.010U.S.)
-
1323-818469001 BEARING UNIT,CRANKSHAFT MAIN-REAR(STANDARD)BEARING UNIT,CRANKSHAFT MAIN-REAR(STANDARD)
-
1323-818470001 BEARING UNIT,CRAKSHAFT MAIN-REAR(.001U.S.)BEARING UNIT,CRAKSHAFT MAIN-REAR(.001U.S.)
-
1323-85671 BEARING UNIT,CRANKSHAFT MAIN-REAR(.002U.S.)BEARING UNIT,CRANKSHAFT MAIN-REAR(.002U.S.)
-
1323-85672 BEARING UNIT,CRANKSHAFT MAIN-REAR(.010U.S.)BEARING UNIT,CRANKSHAFT MAIN-REAR(.010U.S.)
-
1323-85673 BEARING UNIT,CRANKSHAFT MAIN-REAR(.020U.S.)BEARING UNIT,CRANKSHAFT MAIN-REAR(.020U.S.)
-
1434498 REAR-CRANKSHAFT BEARING
SERIAL 00000000-02361801REAR-CRANKSHAFT BEARING
SERIAL 00000000-02361801 -
1449954 CAP,REAR-CRANKSHAFT BEARING
SERIAL 02361802-03377340CAP,REAR-CRANKSHAFT BEARING
SERIAL 02361802-03377340 -
1535310 CAP,INTERMEDIATE AND FRONT-CRANKSHAFT BEARINGCAP,INTERMEDIATE AND FRONT-CRANKSHAFT BEARING
-
-15-34533 SHIM UNIT,BEARING CAP-FRONT AND INTERMEDIATESHIM UNIT,BEARING CAP-FRONT AND INTERMEDIATE
-
-15-34534 SHIM UNIT ,BEARING CAP-REARSHIM UNIT ,BEARING CAP-REAR
-
1610-34499 BOLT,CRANKSHAFT BEARING CAP TO CYLINDER BLOCK(2 23/32")
SERIAL 00000000-01951139BOLT,CRANKSHAFT BEARING CAP TO CYLINDER BLOCK(2 23/32")
SERIAL 00000000-01951139 -
1610-46717 BOLT,CRANKSHAFT BEARING CAP CYLINDER BLOCK (2 31/32")
SERIAL 01951140-03377340BOLT,CRANKSHAFT BEARING CAP CYLINDER BLOCK (2 31/32")
SERIAL 01951140-03377340 -
1726-34462 OIL SEAL UNIT,CRANKSHAFT REAR BEARING
SERIAL 00000000-02361801OIL SEAL UNIT,CRANKSHAFT REAR BEARING
SERIAL 00000000-02361801 -
1726-814622 OIL SEAL UNTI,CRANKSHAFT REAR BEARING
SERIAL 02361802-02726998OIL SEAL UNTI,CRANKSHAFT REAR BEARING
SERIAL 02361802-02726998 -
1726-814622 OIL SEAL UNIT,CRANKSHAFT REAR BEARING
SERIAL 02786857-03377340OIL SEAL UNIT,CRANKSHAFT REAR BEARING
SERIAL 02786857-03377340 -
-34543 VALVE,BY PASS-OIL FILTERVALVE,BY PASS-OIL FILTER
-
18220-2282 FLYWHEEL,CRANKSHAFTFLYWHEEL,CRANKSHAFT
-
1916-98532A1 STUD,FLYWHEEL TO ENGINE COUPLINGSTUD,FLYWHEEL TO ENGINE COUPLING
-
2076850A2 ENGINE COUPLING ASSEMBLYENGINE COUPLING ASSEMBLY
-
2112-35935 WASHER,FLYWHEEL STUDWASHER,FLYWHEEL STUD
-
2211-34933 NUT,FLYWHEEL STUDNUT,FLYWHEEL STUD
-
23613-2277 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
2410-75539 BOLT,CONNECTING ROD BEARING CAPBOLT,CONNECTING ROD BEARING CAP
-
2511-58099 NUT,CONNECTING ROD CAP BOLTNUT,CONNECTING ROD CAP BOLT
-
2623-85677 EARING(PAIR),CONNECTING ROD (STANDARD)EARING(PAIR),CONNECTING ROD (STANDARD)
-
2623-85678 BEARING(PAIR),CONNECTING ROD (.001U.S.)BEARING(PAIR),CONNECTING ROD (.001U.S.)
-
2623-85679 BEARING(PAIR),CONNECTING ROD (.002 U.S)BEARING(PAIR),CONNECTING ROD (.002 U.S)
-
2623-85680 BEARING (PAIR),CONNECTING ROD (.010U.S)BEARING (PAIR),CONNECTING ROD (.010U.S)
-
2623-85681 BEARING(PAIR),CONNECTING ROD (.020U.S.)BEARING(PAIR),CONNECTING ROD (.020U.S.)
-
27424-2422 CAMSHAFTCAMSHAFT
-
2872638 LIFTER,HYDRAULIC-TAPPET
SERIAL 00000000-01951139LIFTER,HYDRAULIC-TAPPET
SERIAL 00000000-01951139 -
2872638 LIFTER,HYDRAULIC-TAPPET
SERIAL 01951140-03377340LIFTER,HYDRAULIC-TAPPET
SERIAL 01951140-03377340 -
2946-8M0113733 WATER PUMP ASSEMBLY(SPECIAL MARINE)
SERIAL 00000000-02520424WATER PUMP ASSEMBLY(SPECIAL MARINE)
SERIAL 00000000-02520424 -
2946-8M0113733 WATER PUMP ASSEMBLY(SPECIAL MARINE)
SERIAL 02520425-03377340WATER PUMP ASSEMBLY(SPECIAL MARINE)
SERIAL 02520425-03377340 -
3027-879150138 GASKET,WATER PUMPGASKET,WATER PUMP
-
3110-34471 SCREW,WATER PUMP TO CYLINDER BLOCK(1 1/2")SCREW,WATER PUMP TO CYLINDER BLOCK(1 1/2")
-
3210-8M0043993 SCREW,WATER PUMP TO CYLINDER BLOCK(3/4")SCREW,WATER PUMP TO CYLINDER BLOCK(3/4")
-
3210-34505 SCREW,WATER PUMP TO CYLINDER BLOCK(7/8")SCREW,WATER PUMP TO CYLINDER BLOCK(7/8")
-
3334481 HUB,WATER PUMP PULLEY
SERIAL 00000000-02520424HUB,WATER PUMP PULLEY
SERIAL 00000000-02520424 -
3337242 REINFORCEMENT,WATER PUMP PULLEY
SERIAL 00000000-02520424REINFORCEMENT,WATER PUMP PULLEY
SERIAL 00000000-02520424 -
3347282 SUPPORT,WATER PUMP PULLEYSUPPORT,WATER PUMP PULLEY
-
3433864 PULLEY,WATER PUMP
SERIAL 00000000-02520424PULLEY,WATER PUMP
SERIAL 00000000-02520424 -
3452349 PULLEY,WATER PUMP
SERIAL 02520425-03377340PULLEY,WATER PUMP
SERIAL 02520425-03377340 -
3510-47277 SCREW,PULLEY AND HUB TO WATER PUMP(3/4")SCREW,PULLEY AND HUB TO WATER PUMP(3/4")
-
3613-39107 LOCKWASHER,PULLEY AND HUB SCREWLOCKWASHER,PULLEY AND HUB SCREW
-
3732-46471 NOZZLE,OIL-TIMING GEAR
SERIAL 00000000-01951139NOZZLE,OIL-TIMING GEAR
SERIAL 00000000-01951139 -
3732-46471 NOZZLE,OIL-TIMING GEAR
SERIAL 01951140-03377340NOZZLE,OIL-TIMING GEAR
SERIAL 01951140-03377340 -
3823-34469 BEARING,CMASHAFT THRUSTBEARING,CMASHAFT THRUST
-
3943-34467 GEAR,TIMING(FIBER)
SERIAL 00000000-03253905GEAR,TIMING(FIBER)
SERIAL 00000000-03253905 -
3943-46745 GEAR,TIMING(FIBER)
SERIAL 03253906-03331603GEAR,TIMING(FIBER)
SERIAL 03253906-03331603 -
4010-21417A1 SCREW,TIMING GEAR TO CAMSHAFT(1/4")SCREW,TIMING GEAR TO CAMSHAFT(1/4")
-
4157-64032Q1 BELT,ALTERNATOR,WATER PULLEY AND CRANKSHAFT PULLEYBELT,ALTERNATOR,WATER PULLEY AND CRANKSHAFT PULLEY
-
42423-2275 CRANKSHAFTCRANKSHAFT
-
4328-34466 KEY,PULLEY AND GEAR LOCATINGKEY,PULLEY AND GEAR LOCATING
-
4443-46743 GEAR,CRANKSHAFT9SERIAL#3253905 AND BELOW)(SERIAL #3331604 TH)GEAR,CRANKSHAFT9SERIAL#3253905 AND BELOW)(SERIAL #3331604 TH)
-
4443-46743 GEAR,CRANKSHAFT(SERIAL #3253906 THRU#3331603)(SERIAL #3331897)GEAR,CRANKSHAFT(SERIAL #3253906 THRU#3331603)(SERIAL #3331897)
-
4534220 HUB,PULLEY-CRANKSHAFTHUB,PULLEY-CRANKSHAFT
-
4635602 PULLEY,CRANKSHAFTPULLEY,CRANKSHAFT
-
4710-34276 SCR EW,PULLEY TO CRANKCASE HUB(9/16") 1SCR EW,PULLEY TO CRANKCASE HUB(9/16") 1
-
4710-34276 SCREW,PULLEY TO CRANKCASE HUB(3/8")SCREW,PULLEY TO CRANKCASE HUB(3/8")
-
-54-34550 CLIP,FUEL FEED PIPECLIP,FUEL FEED PIPE
