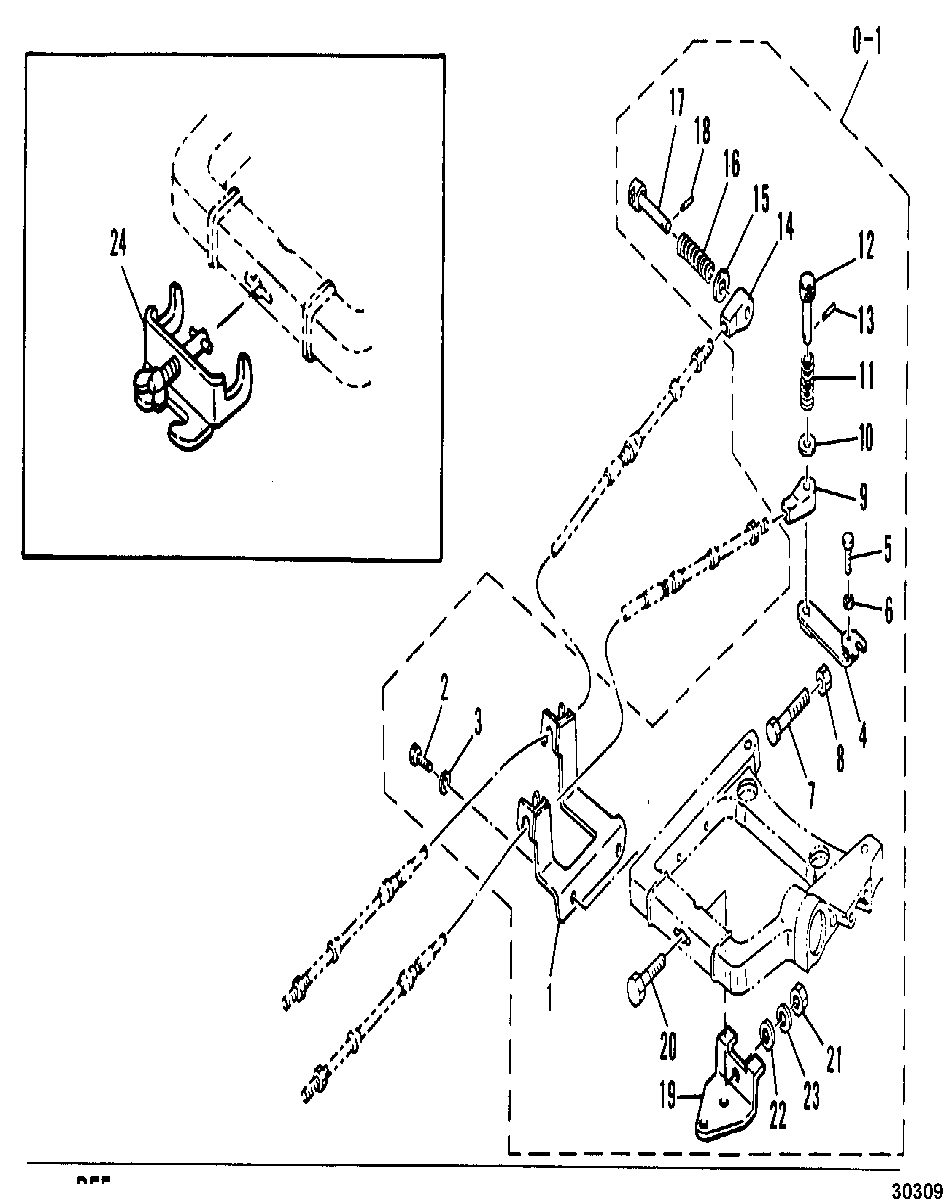

REMOTE CONTROL ATTACHING KIT для Mariner - W8 (ML)(W/Marathon) 677-383147 & Up

  • №
    Артикул
    Название
  • 0-1
    43986A1 ATTACHING KIT, Remote Control
    ATTACHING KIT, Remote Control
  • 1
    84224M BRACKET, CABLE
    BRACKET, CABLE
  • 2
    91-84541M BOLT
    BOLT
  • 3
    12-82214M WASHER
    WASHER
  • 4
    84225M LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 5
    10-82447M BOLT
    BOLT
  • 6
    12-82211M WASHER
    WASHER
  • 7
    10-84657M BOLT
    BOLT
  • 8
    11-82389M NUT
    NUT
  • 9
    84227M END, Cable
    END, Cable
  • 10
    12-82217M WASHER
    WASHER
  • 11
    24-83725M SPRING
    SPRING
  • 12
    17-814499M HOOK
    HOOK
  • 13
    17-82146M PIN, ROLL
    PIN, ROLL
  • 14
    83724M END, Cable
    END, Cable
  • 15
    12-82217M WASHER
    WASHER
  • 16
    24-83721M SPRING
    SPRING
  • 17
    17-814500M HOOK
    HOOK
  • 18
    17-82146M PIN, ROLL
    PIN, ROLL
  • 19
    11670T BRACKET, STEERING ATTACHING .
    SN# M-057971/ML-383909/MUL-702821 & Up
    BRACKET, STEERING ATTACHING .
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 19
    83698M HOOK, STEERING ATTACHING .
    SN# M-057970/ML-383908/MUL-702820 & Below
    HOOK, STEERING ATTACHING .
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 20
    10-91636M BOLT
    BOLT
  • 21
    11-81785M LOCKNUT
    LOCKNUT
  • 22
    12-82220M WASHER
    WASHER
  • 23
    13-82218M LOCKWASHER
    SN# M-060863/ML-389232/MUL-702828 & Below
    LOCKWASHER
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 24
    83727M BRACKET, STEERING (ROPE TYPE, OPT)
    BRACKET, STEERING (ROPE TYPE, OPT)
