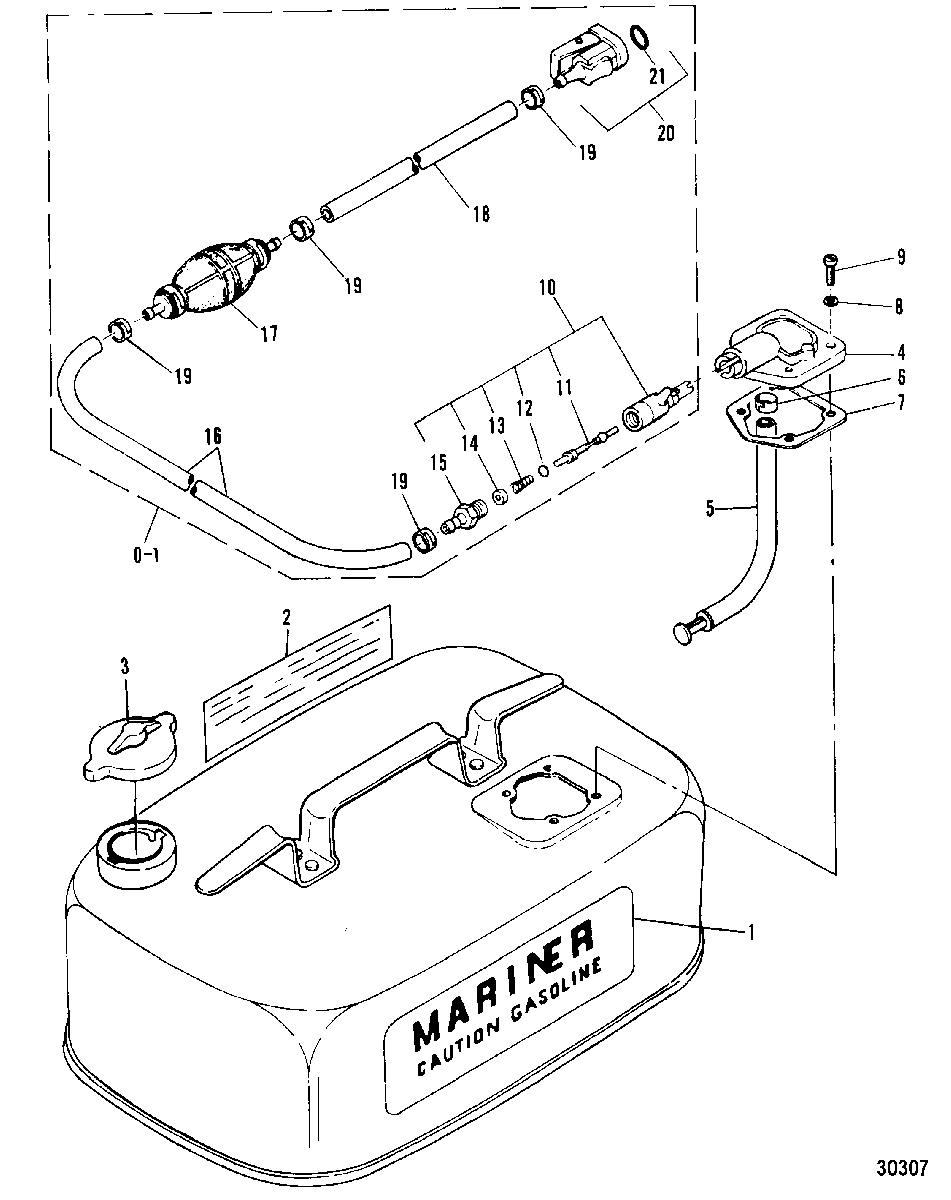

FUEL TANK/LINE, Original Equipment для Mariner - W8 (ML)(W/Marathon) 677-383147 & Up

  • №
    Артикул
    Название
  • 1
    37-95488M DECAL, SIDE (MARINER)
    DECAL, SIDE (MARINER)
  • 2
    37-95489M DECAL, SIDE (CAUTION)
    DECAL, SIDE (CAUTION)
  • 3
    36-18962M CAP, Fuel Tank
    SN# M-060864/ML-389233/MUL-702829 & Up
    CAP, Fuel Tank
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 3
    36-18962M CAP, Fuel Tank
    SN# M-060863/ML-389232/MUL-702828 & Below
    CAP, Fuel Tank
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 4
    83584M HOUSING ASSEMBLY, FUEL CONNECTOR
    SN# 00060863 & Below
    HOUSING ASSEMBLY, FUEL CONNECTOR
    SN# 00060863 & Below
  • 5
    32-94727M HOSE, PICKUP
    SN# M-060863/ML-389232/MUL-702828 & Below
    HOSE, PICKUP
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 6
    54-16725M CLAMP, PICKUP HOSE .
    SN# M-060863/ML-389232/MUL-702828 & Below
    CLAMP, PICKUP HOSE .
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 7
    27-81320M GASKET, HOUSING ASS'Y
    GASKET, HOUSING ASS'Y
  • 8
    12-95501M SEAL
    SN# M-060864/ML-389233/MUL-702829 & Up
    SEAL
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 8
    12-95501M WASHER
    SN# M-060863/ML-389232/MUL-702828 & Below
    WASHER
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 9
    10-95502M SCREW
    SN# M-060864/ML-389233/MUL-702829 & Up
    SCREW
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 9
    10-83356M SCREW
    SN# M-060863/ML-389232/MUL-702828 & Below
    SCREW
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 0-1
    32-16721M LINE ASSEMBLY, Fuel
    SN# M-060864/ML-389233/MUL-702829 & Up
    LINE ASSEMBLY, Fuel
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 0-1
    32-16721M LINE ASSEMBLY, Fuel
    SN# M-060863/ML-389232/MUL-702828 & Below
    LINE ASSEMBLY, Fuel
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 10
    30185Q3 BAYONET ASSEMBLY, Fuel
    BAYONET ASSEMBLY, Fuel
  • 11
    30185Q3 STEM, BAYONET BODY
    STEM, BAYONET BODY
  • 12
    25-16524 O-RING, BAYONET BODY STEM
    O-RING, BAYONET BODY STEM
  • 13
    24-30189 SPRING, BAYONET BODY STEM
    SPRING, BAYONET BODY STEM
  • 14
    30188 WASHER, CAP
    WASHER, CAP
  • 15
    22-63187 FITTING, Barb (.250-18), FUEL LINE
    FITTING, Barb (.250-18), FUEL LINE
  • 16
    32-94727M HOSE, FUEL TANK TO PRIMER BULB .
    SN# M-060864/ML-389233/MUL-702829 & Up
    HOSE, FUEL TANK TO PRIMER BULB .
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 16
    32-94727M HOSE, FUEL TANK TO PRIMER BULB .
    SN# M-060863/ML-389232/MUL-702828 & Below
    HOSE, FUEL TANK TO PRIMER BULB .
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 17
    89396Q01 PRIMER BULB
    SN# M-060864/ML-389233/MUL-702829 & Up
    PRIMER BULB
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 17
    89396Q01 PRIMER BULB
    SN# M-060863/ML-389232/MUL-702828 & Below
    PRIMER BULB
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 18
    32-94727M HOSE, PRIMER BULT TO FUEL CONNECTOR .
    SN# M-060864/ML-389233/MUL-702829 & Up
    HOSE, PRIMER BULT TO FUEL CONNECTOR .
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 18
    32-94727M HOSE, PRIMER BULT TO FUEL CONNECTOR .
    SN# M-060863/ML-389232/MUL-702828 & Below
    HOSE, PRIMER BULT TO FUEL CONNECTOR .
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 19
    54-16725M CLAMP, HOSE
    SN# M-060864/ML-389233/MUL-702829 & Up
    CLAMP, HOSE
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 19
    54-16725M CLAMP, HOSE
    SN# M-060863/ML-389232/MUL-702828 & Below
    CLAMP, HOSE
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 20
    22-14213Q CONNECTOR, Fuel
    SN# M-060864/ML-389233/MUL-702829 & Up
    CONNECTOR, Fuel
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 20
    22-14213Q HOUSING ASSEMBLY, FUEL CONNECTOR
    SN# M-060863/ML-389232/MUL-702828 & Below
    HOUSING ASSEMBLY, FUEL CONNECTOR
    SN# M-060863/ML-389232/MUL-702828 & Below
  • 21
    25-82789M O-RING
    O-RING
