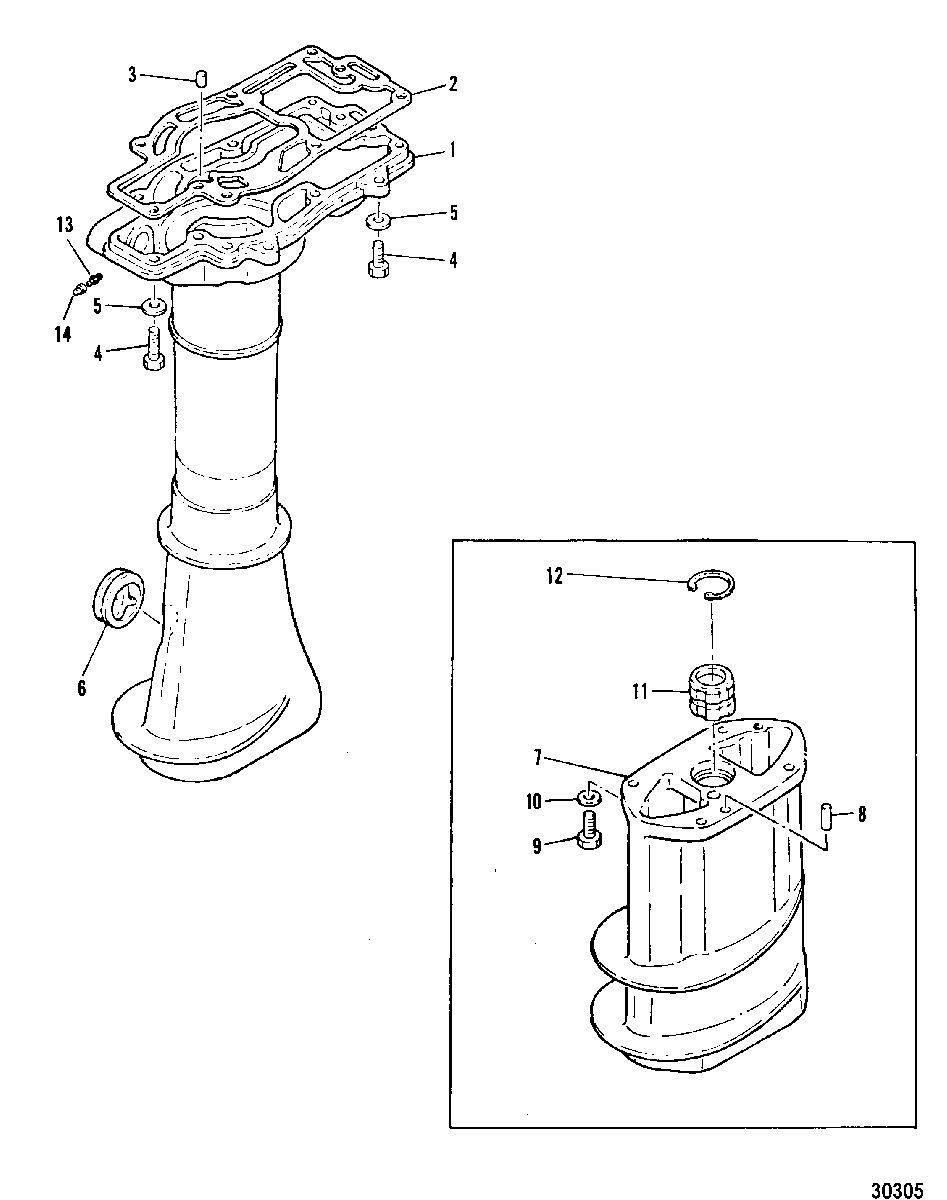

DRIVESHAFT HOUSING для Mariner - W8 (ML)(W/Marathon) 677-383147 & Up

  • №
    Артикул
    Название
  • 1
    1587-9396M HOUSING, Driveshaft
    SN# M-059525/ML-387112/MUL-702821 & Up
    HOUSING, Driveshaft
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 1
    1587-9271M HOUSING, Driveshaft
    SN# M-059524/ML-387111/MUL-702820 & Below
    HOUSING, Driveshaft
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 2
    27-83280 GASKET
    GASKET
  • 3
    17-82359M PIN, Dowel
    PIN, Dowel
  • 4
    10-82405M BOLT
    BOLT
  • 5
    12-82214M WASHER
    WASHER
  • 6
    80533M COVER
    COVER
  • 7
    83194M EXTENSION
    (LONG-140mm)
    EXTENSION
    (LONG-140mm)
  • 7
    82309M EXTENSION
    (ULTRA LONG-190MM)
    EXTENSION
    (ULTRA LONG-190MM)
  • 7
    82505M EXTENSION
    (SUPER ULTRA LONG-267MM)
    EXTENSION
    (SUPER ULTRA LONG-267MM)
  • 8
    17-82354M PIN, DOWEL
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
    PIN, DOWEL
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
  • 9
    10-84058M BOLT, (M6 x 20)
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
    BOLT, (M6 x 20)
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
  • 10
    12-82214M WASHER
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
    WASHER
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
  • 11
    23-82574M BUSHING
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
    BUSHING
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
  • 12
    53-82863M RING, Snap
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
    RING, Snap
    (LONG, ULTRA LONG, SUPER ULTRA LONG)
  • 13
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 14
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • -
    84223M EXTENSION KIT
    (LONG)
    EXTENSION KIT
    (LONG)
  • -
    84229M EXTENSION KIT
    (ULTRA LONG)
    EXTENSION KIT
    (ULTRA LONG)
  • -
    84230M EXTENSION KIT
    (SUPER ULTRA LONG)
    EXTENSION KIT
    (SUPER ULTRA LONG)
