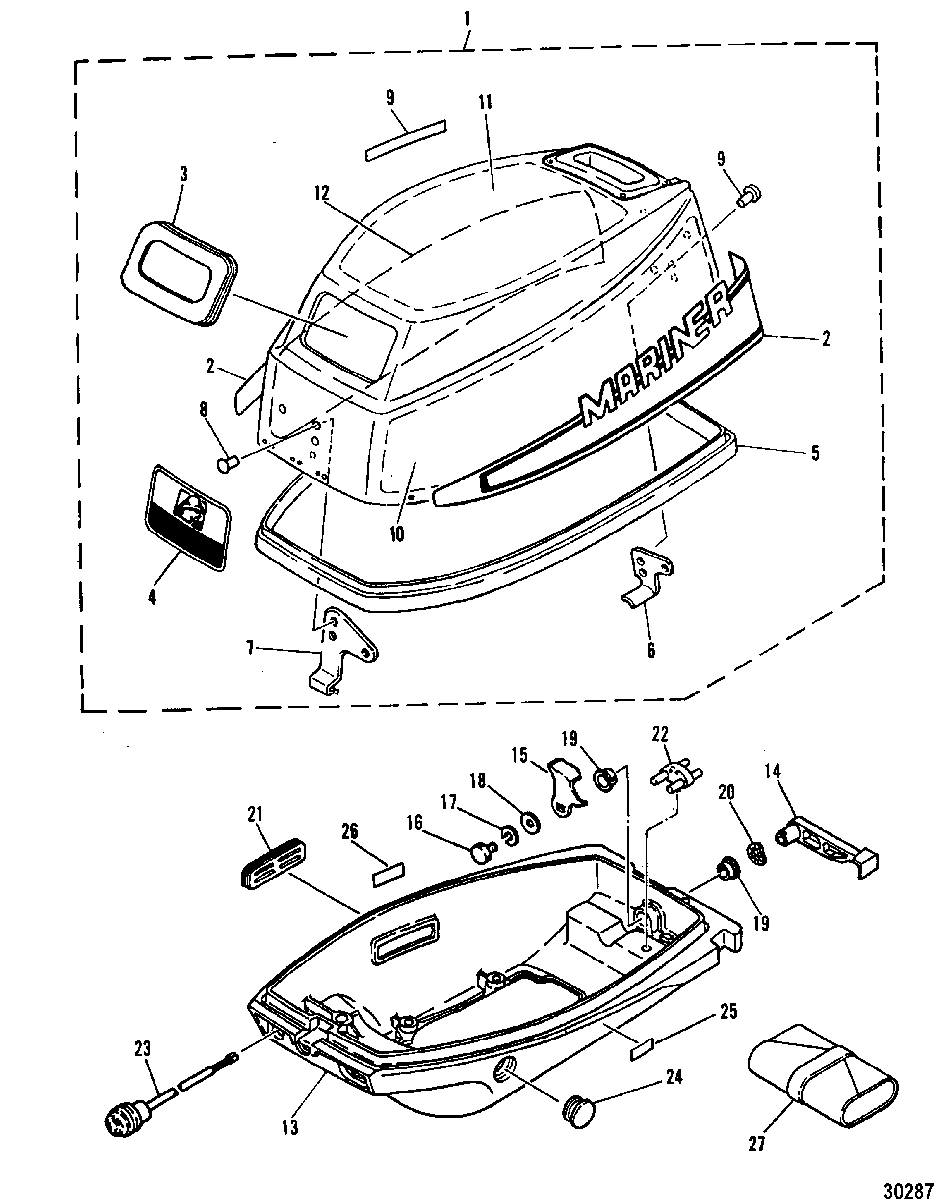

COWLING для Mariner - W8 (ML)(W/Marathon) 677-383147 & Up

  • №
    Артикул
    Название
  • 1
    2168-9378M TOP COWL ASSEMBLY
    SN# M-057971/ML-383909/MUL-702821 & Up
    TOP COWL ASSEMBLY
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 1
    2168-9378M TOP COWL ASSEMBLY
    SN# M-057970/ML-383908/MUL-702820 & Below
    TOP COWL ASSEMBLY
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 2
    37-95400M DECAL SET, Side And Rear
    SN# M-057971/ML-383909/MUL-702821 & Up
    DECAL SET, Side And Rear
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 2
    37-95400M DECAL, SIDE SET
    SN# M-057970/ML-383908/MUL-702820 & Below
    DECAL, SIDE SET
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 3
    26-91653M SEAL
    SEAL
  • 4
    37-95401M DECAL, Front
    SN# M-057971/ML-383909/MUL-702821 & Up
    DECAL, Front
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 4
    37-95401M DECAL, FRONT
    SN# M-057970/ML-383908/MUL-702820 & Below
    DECAL, FRONT
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 5
    95587M SEAL
    SEAL
  • 6
    94655M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 7
    94656M HOOK
    HOOK
  • 8
    17-814489M RIVET
    RIVET
  • 9
    37-81202M DECAL, Shift Indicator
    DECAL, Shift Indicator
  • 10
    83232M SOUND BLANKET
    SN# M-057970/ML-383908/MUL-702820 & Below
    SOUND BLANKET
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 11
    84321M SOUND BLANKET
    SN# M-057970/ML-383908/MUL-702820 & Below
    SOUND BLANKET
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 12
    83232M SOUND BLANKET
    SN# M-057970/ML-383908/MUL-702820 & Below
    SOUND BLANKET
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 13
    2168-9379M COWLING, BOTTOM
    SN# M-057971/ML-383909/MUL-702821 & Up
    COWLING, BOTTOM
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 13
    2168-9379M COWLING, BOTTOM
    SN# M-057970/ML-383908/MUL-702820 & Below
    COWLING, BOTTOM
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 14
    95402M LEVER, CLAMP
    LEVER, CLAMP
  • 15
    54-84914M CLAMP
    CLAMP
  • 16
    10-91772M BOLT
    BOLT
  • 17
    12-82214M WASHER
    WASHER
  • 18
    12-81794M WASHER
    WASHER
  • 19
    23-81949M BUSHING
    BUSHING
  • 20
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 21
    25-83277M GROMMET
    GROMMET
  • 22
    80033M HOLDER, DRIVE PIN
    HOLDER, DRIVE PIN
  • 23
    87-91622M SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 24
    25-84669M GROMMET
    This grommet is not used when Harness 84-84124M is utilized
    GROMMET
    This grommet is not used when Harness 84-84124M is utilized
  • 25
    37-14270M DECAL
    SN# M-059525/ML-387112/MUL-702821 & Up
    DECAL
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 25
    37-95638M DECAL
    SN# M-059524/ML-387111/MUL-702820 & Below
    DECAL
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 26
    37-14271M DECAL
    SN# M-059525/ML-387112/MUL-702821 & Up
    DECAL
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 27
    91-803581 TOOL KIT
    TOOL KIT
