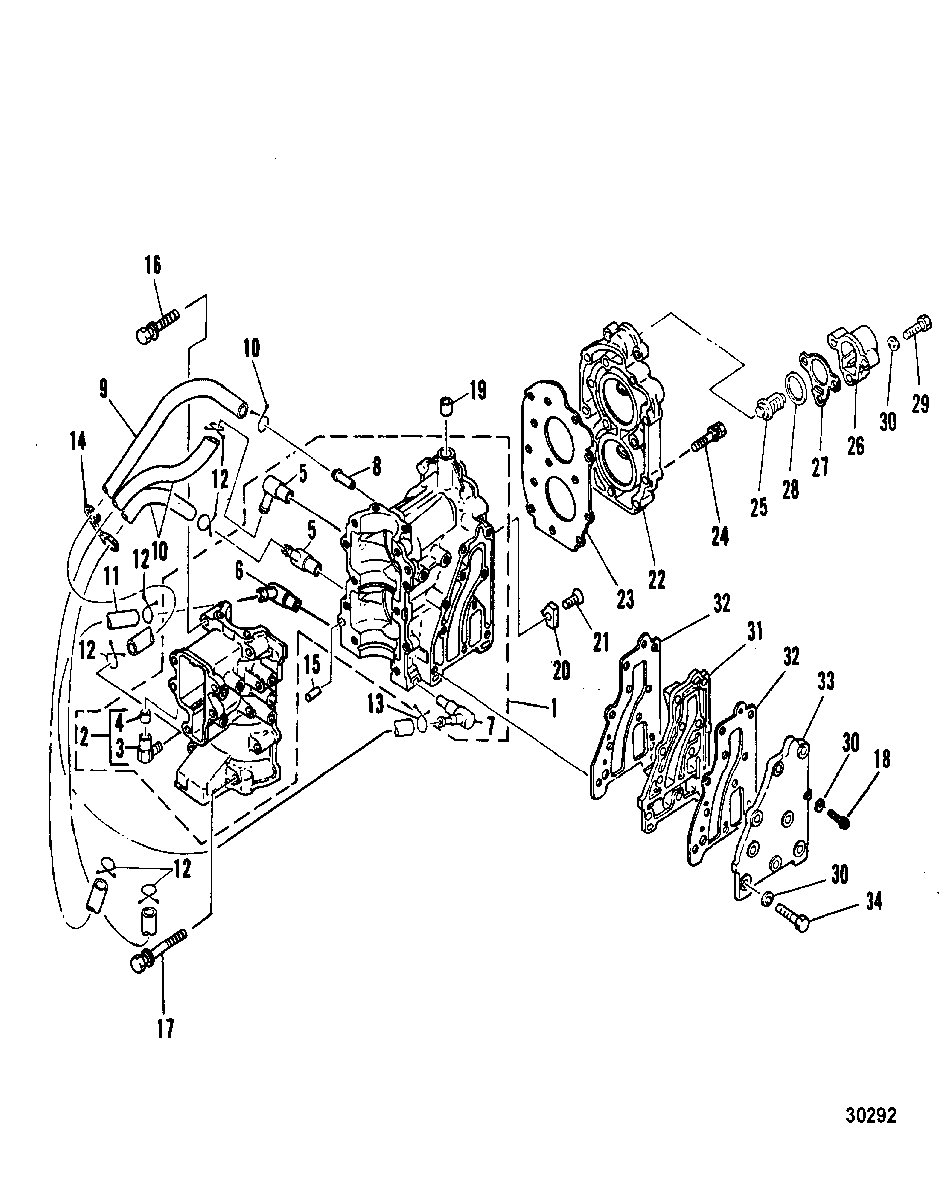

CRANKCASE AND CYLINDER HEAD для Mariner - W8 (ML)(W/Marathon) 677-383147 & Up

  • №
    Артикул
    Название
  • 1
    968-6973M CRANKCASE ASSEMBLY
    CRANKCASE ASSEMBLY
  • 2
    21-80727M CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    22-82975M ELBOW, DRAIN
    SN# M-057970/ML-383908/MUL-702820 & Below
    ELBOW, DRAIN
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 4
    21-80107M VALVE, CHECK
    SN# M-057970/ML-383908/MUL-702820 & Below
    VALVE, CHECK
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 5
    21-82692M CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 6
    22-84661M FITTING, Drain
    FITTING, Drain
  • 7
    22-83326M FITTING, DRAIN
    FITTING, DRAIN
  • 8
    22-80122M FITTING, DRAIN
    FITTING, DRAIN
  • 9
    32-811045M HOSE
    HOSE
  • 10
    32-811045M HOSE
    HOSE
  • 11
    32-82012M HOSE
    HOSE
  • 12
    54-82046M CLAMP
    CLAMP
  • 13
    54-98974M CLAMP
    CLAMP
  • 14
    82038M CLAMP
    CLAMP
  • 15
    17-82359M PIN, Dowel
    PIN, Dowel
  • 16
    10-95592M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 17
    10-95593M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 18
    10-826957M BOLT
    BOLT
  • 19
    17-14214M PIN, Dowel
    SN# M-059525/ML-387112/MUL-702821 & Up
    PIN, Dowel
    SN# M-059525/ML-387112/MUL-702821 & Up
  • 19
    17-14214M PIN, DOWEL
    SN# M-059524/ML-387111/MUL-702820 & Below
    PIN, DOWEL
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 20
    97-84732M ANODE
    SN# M-060864/ML-389233/MUL-702829 & Up
    ANODE
    SN# M-060864/ML-389233/MUL-702829 & Up
  • 21
    10-95594M SCREW
    SCREW
  • 22
    968-6964M HEAD, CYLINDER
    HEAD, CYLINDER
  • 23
    27-95595 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 24
    10-43092M BOLT, (M6 x 14), WITH WASHER
    BOLT, (M6 x 14), WITH WASHER
  • 25
    11919001 THERMOSTAT
    SN# M-057971/ML-383909/MUL-702821 & Up
    THERMOSTAT
    SN# M-057971/ML-383909/MUL-702821 & Up
  • 25
    83282M THERMOSTAT
    SN# M-057970/ML-383908/MUL-702820 & Below
    THERMOSTAT
    SN# M-057970/ML-383908/MUL-702820 & Below
  • 26
    83241M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 27
    27-83242 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 28
    12-81835M WASHER
    SN# M-059524/ML-387111/MUL-702820 & Below
    WASHER
    SN# M-059524/ML-387111/MUL-702820 & Below
  • 29
    10-82405M BOLT
    BOLT
  • 30
    12-82214M WASHER
    WASHER
  • 31
    95596M COVER, Exhaust, Inner
    COVER, Exhaust, Inner
  • 32
    95596M COVER, Exhaust
    COVER, Exhaust
  • 33
    95598M COVER, Exhaust, Outer
    COVER, Exhaust, Outer
  • 34
    10-83285M BOLT
    BOLT
  • -
    95403M POWERHEAD ASSEMBLY
    SN# M-057971/ML-383909/MUL-702821 & Up
    POWERHEAD ASSEMBLY
    SN# M-057971/ML-383909/MUL-702821 & Up
  • -
    83783M POWERHEAD ASSEMBLY
    SN# M-057970/ML-383908/MUL-702820 & Below
    POWERHEAD ASSEMBLY
    SN# M-057970/ML-383908/MUL-702820 & Below
  • -
    27-84161M GASKET SET
    GASKET SET
