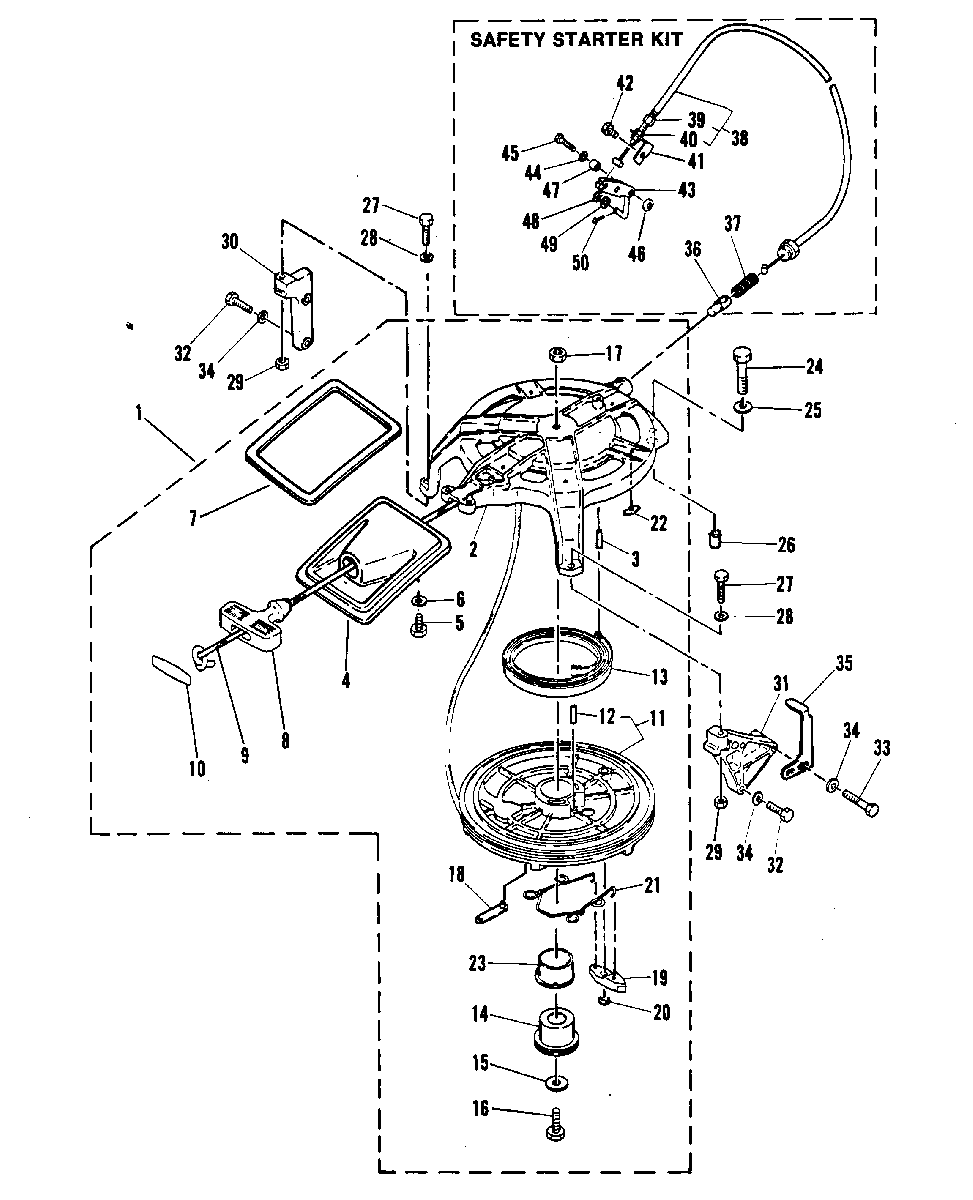

RECOIL STARTER для Mariner - W30 (W/MARATHON) 689-B300101 AND UP

  • №
    Артикул
    Название
  • 1
    50-19137M STARTER ASS'Y
    SERIAL 00004906-09999999
    STARTER ASS'Y
    SERIAL 00004906-09999999
  • 1
    50-19137M STARTER ASS'Y
    SERIAL 00000000-00004905
    STARTER ASS'Y
    SERIAL 00000000-00004905
  • 2
    2169-811912M HOUSING, STARTER
    HOUSING, STARTER
  • 3
    17-82157M PIN, SPRING
    PIN, SPRING
  • 4
    17168M GUIDE, WIRE
    SERIAL 00004906-09999999
    GUIDE, WIRE
    SERIAL 00004906-09999999
  • 4
    84890M GUIDE, WIRE
    SERIAL 00000000-00004905
    GUIDE, WIRE
    SERIAL 00000000-00004905
  • 5
    10-826957M BOLT
    BOLT
  • 6
    12-82214M WASHER
    WASHER
  • 7
    95433M SEAL
    SERIAL 00004906-09999999
    SEAL
    SERIAL 00004906-09999999
  • 7
    84891M SEAL
    SERIAL 00000000-00004905
    SEAL
    SERIAL 00000000-00004905
  • 8
    814491A1 HANDLE, STARTER
    SERIAL 00004906-09999999
    HANDLE, STARTER
    SERIAL 00004906-09999999
  • 8
    814491A1 HANDLE, STARTER
    SERIAL 00000000-00004905
    HANDLE, STARTER
    SERIAL 00000000-00004905
  • 9
    50-12066Q10 ROPE, STARTER
    ROPE, STARTER
  • 10
    18929M COVER
    SERIAL 00004906-09999999
    COVER
    SERIAL 00004906-09999999
  • 10
    814491A1 COVER
    SERIAL 00000000-00004905
    COVER
    SERIAL 00000000-00004905
  • 11
    50-83587M DRUM, SHEAVE
    DRUM, SHEAVE
  • 12
    17-82157M PIN
    PIN
  • 13
    24-83588M SPRING
    SPRING
  • 14
    23-83590M SHAFT
    SHAFT
  • 15
    12-81801M WASHER
    WASHER
  • 16
    10-84342M BOLT
    BOLT
  • 17
    11-82382M NUT
    NUT
  • 18
    54-84893M CLIP
    CLIP
  • 19
    84894M PAWL, DRIVE
    PAWL, DRIVE
  • 20
    53-84895M SNAP RING
    SNAP RING
  • 21
    24-83591M SPRING
    SPRING
  • 22
    23-83585M BUSHING
    BUSHING
  • 23
    23-83589M BUSHING
    BUSHING
  • 24
    10-82442M BOLT
    BOLT
  • 25
    12-82217M WASHER
    WASHER
  • 26
    17-14229M PIN, DOWEL
    PIN, DOWEL
  • 27
    10-83285M BOLT
    BOLT
  • 28
    12-82214M WASHER
    WASHER
  • 29
    11-82389M NUT
    NUT
  • 30
    95172M BRACKET
    SERIAL 00004232-09999999
    BRACKET
    SERIAL 00004232-09999999
  • 30
    84465M BRACKET
    SERIAL 00003750-00004231
    BRACKET
    SERIAL 00003750-00004231
  • 30
    95172M BRACKET
    SERIAL 00003181-00003749
    BRACKET
    SERIAL 00003181-00003749
  • 30
    84465M BRACKET
    SERIAL 00000000-00003180
    BRACKET
    SERIAL 00000000-00003180
  • 31
    84466M BRACKET
    BRACKET
  • 32
    10-82405M BOLT
    BOLT
  • 33
    10-84657M BOLT
    BOLT
  • 34
    12-82214M WASHER
    WASHER
  • 35
    96341M PLATE, TIMING
    SERIAL 00003750-00004518
    PLATE, TIMING
    SERIAL 00003750-00004518
  • 36
    81106M PLUNGER
    SERIAL 00000000-00003749
    PLUNGER
    SERIAL 00000000-00003749
  • 37
    24-82079M SPRING
    SERIAL 00000000-00003749
    SPRING
    SERIAL 00000000-00003749
  • 38
    81108M CABLE ASS'Y, STARTER STOP
    SERIAL 00000000-00003749
    CABLE ASS'Y, STARTER STOP
    SERIAL 00000000-00003749
  • 39
    10-81746M BOLT
    SERIAL 00000000-00003749
    BOLT
    SERIAL 00000000-00003749
  • 40
    11-82389M NUT
    SERIAL 00000000-00003749
    NUT
    SERIAL 00000000-00003749
  • 41
    92599M BRACKET
    SERIAL 00000000-00003749
    BRACKET
    SERIAL 00000000-00003749
  • 42
    10-84088M BOLT
    SERIAL 00000000-00003749
    BOLT
    SERIAL 00000000-00003749
  • 43
    81107M LEVER ASS'Y
    SERIAL 00000000-00003749
    LEVER ASS'Y
    SERIAL 00000000-00003749
  • 44
    13-81867M LOCKWASHER
    SERIAL 00000000-00003749
    LOCKWASHER
    SERIAL 00000000-00003749
  • 45
    10-84058M BOLT
    SERIAL 00000000-00003749
    BOLT
    SERIAL 00000000-00003749
  • 46
    12-82214M WASHER
    SERIAL 00000000-00003749
    WASHER
    SERIAL 00000000-00003749
  • 47
    23-82929M COLLAR
    SERIAL 00000000-00003749
    COLLAR
    SERIAL 00000000-00003749
  • 48
    12-82211M WASHER
    SERIAL 00000000-00003749
    WASHER
    SERIAL 00000000-00003749
  • 49
    13-81865M LOCKWASHER
    SERIAL 00000000-00003749
    LOCKWASHER
    SERIAL 00000000-00003749
  • 50
    18-82125M PIN, COTTER
    SERIAL 00000000-00003749
    PIN, COTTER
    SERIAL 00000000-00003749
