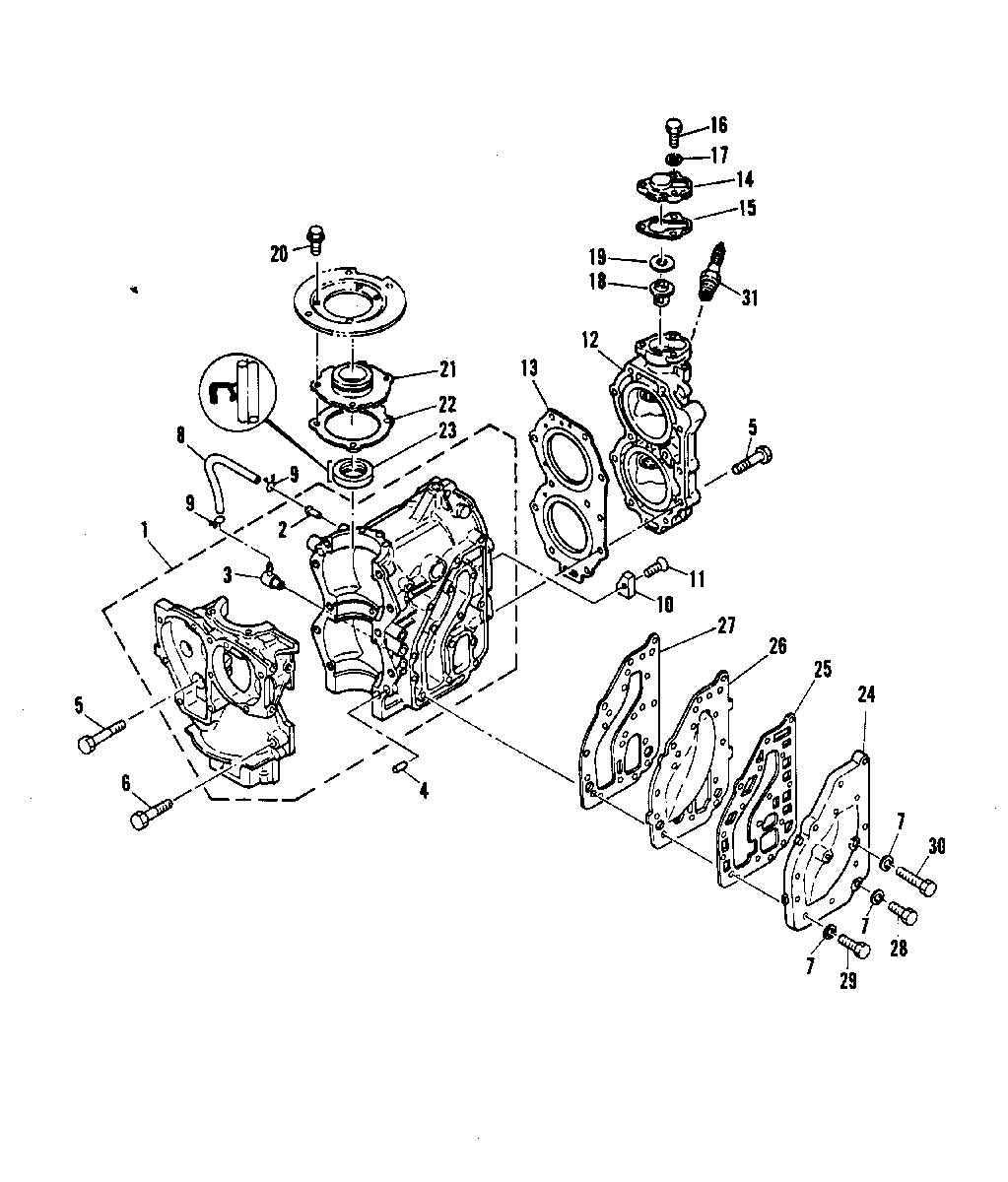

CRANKCASE AND CYLINDER HEAD для Mariner - W30 (W/MARATHON) 689-B300101 AND UP
-
№АртикулНазвание
-
1870-9371M CRANKCASE ASS'YCRANKCASE ASS'Y
-
222-80122M FITTING, DRAINFITTING, DRAIN
-
321-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
417-82364M PINPIN
-
510-41885M BOLT, W/WASHERBOLT, W/WASHER
-
610-8M0101617 BOLT, W/WASHERBOLT, W/WASHER
-
712-82214M WASHERWASHER
-
832-811045M HOSEHOSE
-
954-82046M CLIPCLIP
-
1097-84732M ANODEANODE
-
1110-95209M SCREWSCREW
-
12968-7194M HEAD, CYLINDERHEAD, CYLINDER
-
1327-19138 GASKET, CYLINDER HEAD
SERIAL 00004906-09999999GASKET, CYLINDER HEAD
SERIAL 00004906-09999999 -
1327-19138 GASKET, CYLINDER HEAD
SERIAL 00000000-00004905GASKET, CYLINDER HEAD
SERIAL 00000000-00004905 -
1481030M COVER, THERMOSTATCOVER, THERMOSTAT
-
1527-81031 GASKETGASKET
-
1610-84058M BOLTBOLT
-
1712-82214M WASHERWASHER
-
18814554T01 THERMOSTAT
SERIAL 00003750-09999999THERMOSTAT
SERIAL 00003750-09999999 -
1899080M THERMOSTAT
SERIAL 00000000-00003749THERMOSTAT
SERIAL 00000000-00003749 -
1912-81835M WASHERWASHER
-
2010-84735M BOLT, W/WASHERBOLT, W/WASHER
-
2184736M HOUSINGHOUSING
-
2227-84737M GASKETGASKET
-
2326-811021M OIL SEALOIL SEAL
-
2495680M OUTER COVEROUTER COVER
-
2527-96656M GASKETGASKET
-
2695681M INNER COVERINNER COVER
-
2727-84741M GASKETGASKET
-
2810-82405M BOLTBOLT
-
2910-83285M BOLTBOLT
-
3010-84931M BOLTBOLT
-
3133-8M0114739 SPARK PLUGSPARK PLUG
-
3195439M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
-
3127-95217M GASKET SET, POWERHEAD
SERIAL 00003181-09999999GASKET SET, POWERHEAD
SERIAL 00003181-09999999 -
3127-96658M GASKET SET, POWERHEAD
SERIAL 00000000-00003180GASKET SET, POWERHEAD
SERIAL 00000000-00003180
