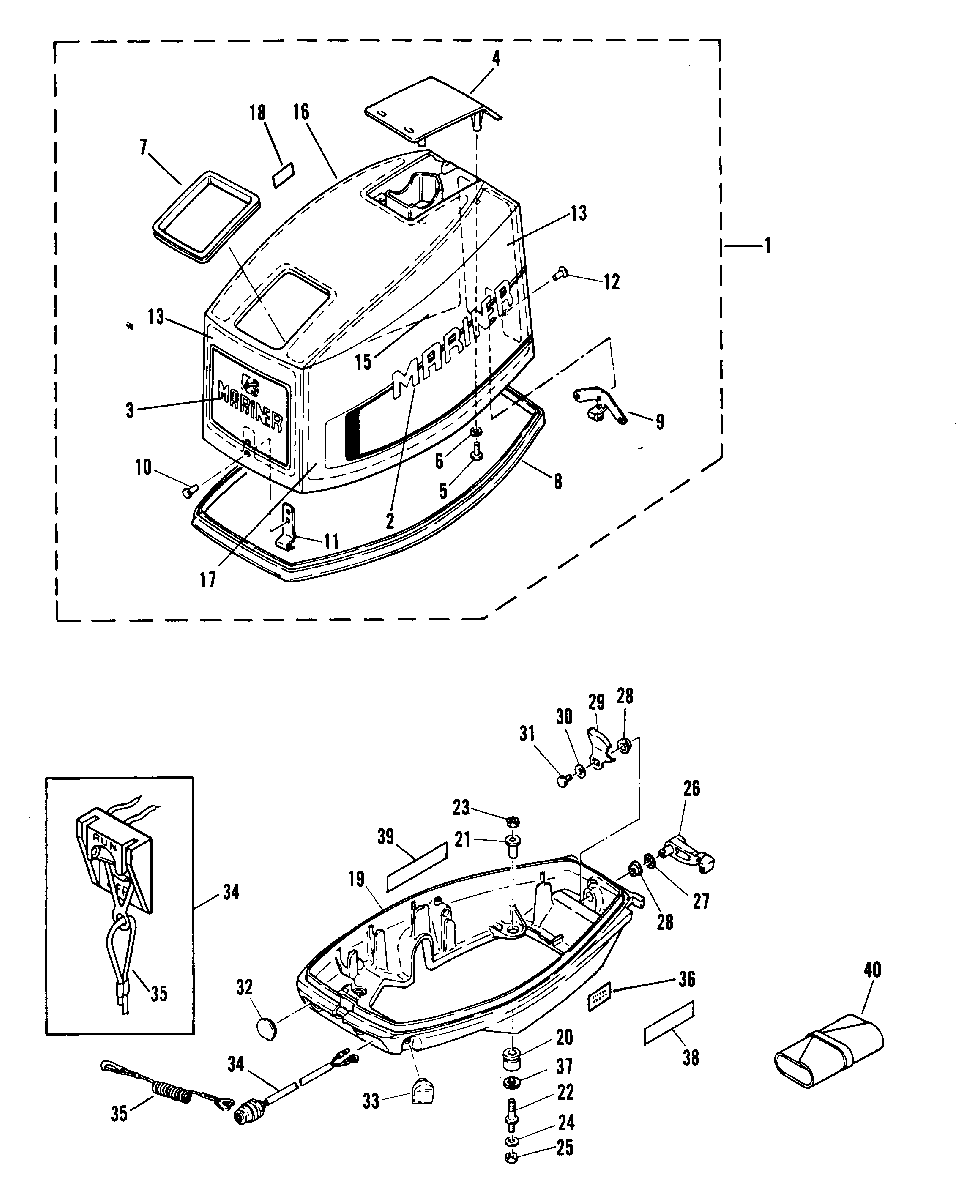

COWLING для Mariner - W30 (W/MARATHON) 689-B300101 AND UP

  • №
    Артикул
    Название
  • 1
    2168-813272M TOP COWLING ASS'Y
    SERIAL 00004519-09999999
    TOP COWLING ASS'Y
    SERIAL 00004519-09999999
  • 1
    2168-811158M TOP COWLING ASS'Y
    SERIAL 00000000-00004518
    TOP COWLING ASS'Y
    SERIAL 00000000-00004518
  • 2
    37-95674M DECAL, SIDE AND REAR
    DECAL, SIDE AND REAR
  • 3
    37-95675M DECAL, FRONT
    DECAL, FRONT
  • 4
    95676M MOLDING, AIR DUCT
    MOLDING, AIR DUCT
  • 5
    10-91772M BOLT
    BOLT
  • 6
    12-82214M WASHER
    WASHER
  • 7
    84900M SEAL, RUBBER
    SEAL, RUBBER
  • 8
    84901M SEAL
    SEAL
  • 9
    42433M HOLDER, CLAMP BAND
    SERIAL 00003181-09999999
    HOLDER, CLAMP BAND
    SERIAL 00003181-09999999
  • 9
    84902M HOLDER, CLAMP BAND
    SERIAL 00000000-00003180
    HOLDER, CLAMP BAND
    SERIAL 00000000-00003180
  • 10
    17-84903M RIVET
    RIVET
  • 11
    811160M HOOK
    SERIAL 00004906-09999999
    HOOK
    SERIAL 00004906-09999999
  • 11
    826974M HOOK
    SERIAL 00004519-00004905
    HOOK
    SERIAL 00004519-00004905
  • 11
    811160M HOOK
    SERIAL 00000000-00004518
    HOOK
    SERIAL 00000000-00004518
  • 12
    17-83140M RIVET
    RIVET
  • 13
    84323M SOUND BLANKET, FRONT AND REAR
    SERIAL 00000000-00004518
    SOUND BLANKET, FRONT AND REAR
    SERIAL 00000000-00004518
  • 15
    83125M SOUND BLANKET, STARBOARD
    SERIAL 00000000-00004518
    SOUND BLANKET, STARBOARD
    SERIAL 00000000-00004518
  • 16
    83232M SOUND BLANKET, TOP
    SERIAL 00000000-00004518
    SOUND BLANKET, TOP
    SERIAL 00000000-00004518
  • 17
    83125M SOUND BLANKET, PORT
    SERIAL 00000000-00004518
    SOUND BLANKET, PORT
    SERIAL 00000000-00004518
  • 18
    37-81202M INDICATOR, SHIFT
    INDICATOR, SHIFT
  • 19
    2168-9349M COWLING, BOTTOM
    COWLING, BOTTOM
  • 20
    25-84910M GROMMET
    GROMMET
  • 21
    23-84911M COLLAR
    COLLAR
  • 22
    16-95505M BOLT ( ) AND ABOVE
    SERIAL 00004232-09999999
    BOLT ( ) AND ABOVE
    SERIAL 00004232-09999999
  • 22
    16-95505M BOLT () AND BELOW
    SERIAL 00000000-00004231
    BOLT () AND BELOW
    SERIAL 00000000-00004231
  • 23
    11-82383M NUT
    NUT
  • 24
    12-82217M WASHER
    WASHER
  • 25
    11-82383M NUT
    NUT
  • 26
    84913M LEVER, CLAMP
    LEVER, CLAMP
  • 27
    13-81869M LOCKWASHER
    LOCKWASHER
  • 28
    23-81949M BUSHING
    SERIAL 00003181-09999999
    BUSHING
    SERIAL 00003181-09999999
  • 28
    23-81949M BUSHING
    SERIAL 00000000-00003180
    BUSHING
    SERIAL 00000000-00003180
  • 29
    54-95171M LEVER, CLAMP
    SERIAL 00003181-09999999
    LEVER, CLAMP
    SERIAL 00003181-09999999
  • 29
    54-84914M LEVER, CLAMP
    SERIAL 00000000-00003180
    LEVER, CLAMP
    SERIAL 00000000-00003180
  • 30
    12-81794M WASHER
    WASHER
  • 31
    10-84088M BOLT
    BOLT
  • 32
    25-83988M GROMMET
    GROMMET
  • 33
    25-826981M GROMMET
    GROMMET
  • 34
    87-14222M LANYARD IGNITION SWITCH ASS'Y
    SERIAL 00004232-09999999
    LANYARD IGNITION SWITCH ASS'Y
    SERIAL 00004232-09999999
  • 34
    87-93102M STOP SWITCH ASS'Y
    SERIAL 00000000-00004231
    STOP SWITCH ASS'Y
    SERIAL 00000000-00004231
  • 35
    97756M STOPPER
    SERIAL 00004906-09999999
    STOPPER
    SERIAL 00004906-09999999
  • 36
    37-96644M DECAL (HP)
    SERIAL 00000000-00004518
    DECAL (HP)
    SERIAL 00000000-00004518
  • 37
    12-95507M WASHER
    SERIAL 00004232-09999999
    WASHER
    SERIAL 00004232-09999999
  • 38
    37-14298M DECAL, SIDE (MARATHON)
    SERIAL 00004232-09999999
    DECAL, SIDE (MARATHON)
    SERIAL 00004232-09999999
  • 39
    37-14299M DECAL, SIDE (MARATHON)
    SERIAL 00004232-09999999
    DECAL, SIDE (MARATHON)
    SERIAL 00004232-09999999
  • 40
    91-803581 TOOL JUT ASS'Y
    SERIAL 00003181-09999999
    TOOL JUT ASS'Y
    SERIAL 00003181-09999999
  • 40
    91-803581 TOOL KIT ASS'Y
    SERIAL 00000000-00003180
    TOOL KIT ASS'Y
    SERIAL 00000000-00003180
