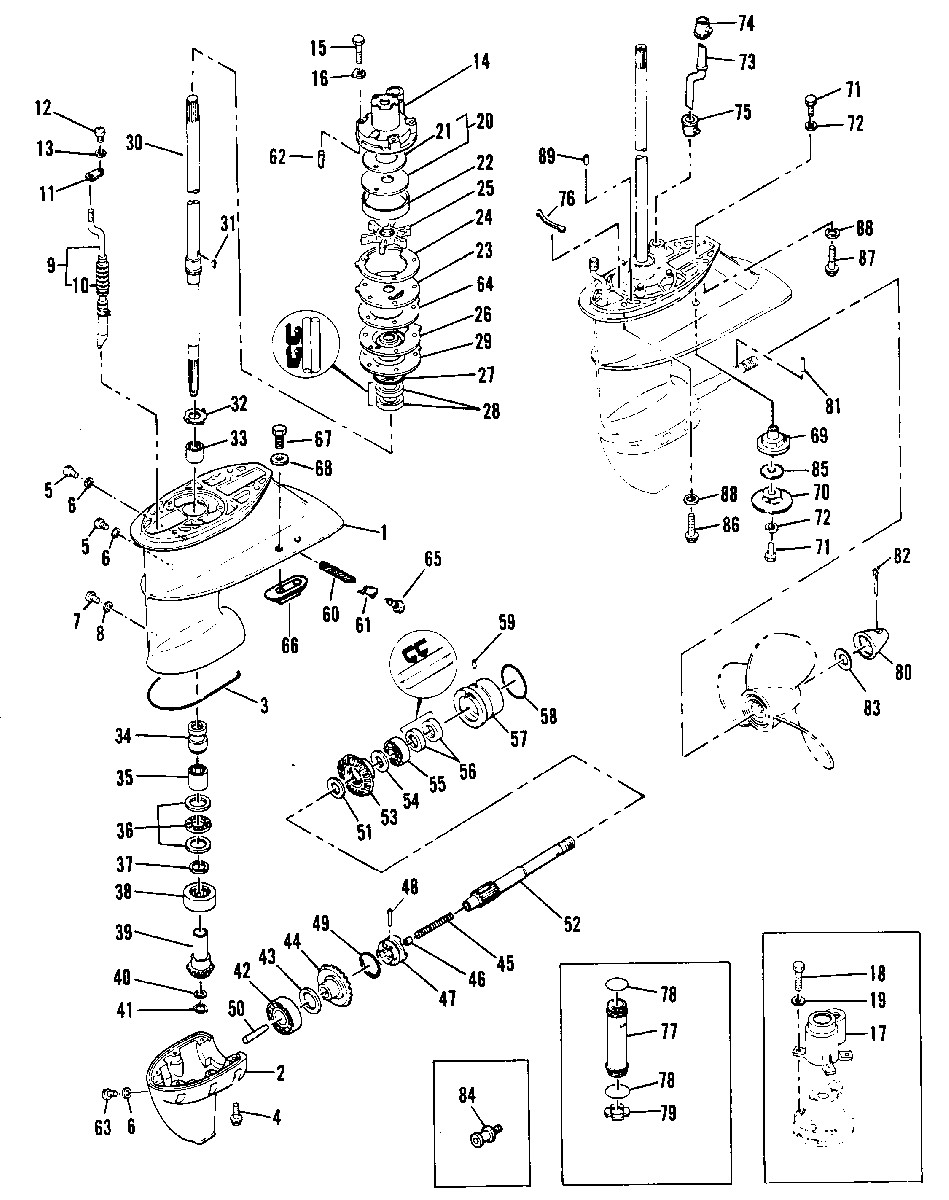

GEARHOUSING ASSEMBLY для Mariner - W30 (W/MARATHON) 689-B300101 AND UP

  • №
    Артикул
    Название
  • 0-1
    1651-9816M GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00004906-09999999
    GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00004906-09999999
  • 0-1
    1651-9816M GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00000000-00004905
    GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00000000-00004905
  • 0-1
    1651-9817M GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00004906-09999999
    GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00004906-09999999
  • 0-1
    1651-9817M GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00000000-00004905
    GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00000000-00004905
  • 1
    1651-9818M GEARHOUSING, UPPER
    SERIAL 00004906-09999999
    GEARHOUSING, UPPER
    SERIAL 00004906-09999999
  • 1
    1651-9094M GEARHOUSING, UPPER
    SERIAL 00003181-00004905
    GEARHOUSING, UPPER
    SERIAL 00003181-00004905
  • 1
    1651-8419M GEARHOUSING, UPPER
    SERIAL 00000000-00003180
    GEARHOUSING, UPPER
    SERIAL 00000000-00003180
  • 2
    96668M HOUSING, LOWER
    HOUSING, LOWER
  • 3
    83391M SEAL
    SEAL
  • 4
    10-82476M BOLT
    BOLT
  • 5
    22-81924M PLUG
    PLUG
  • 6
    27-81987 GASKET
    GASKET
  • 7
    10-81752M SCREW
    SCREW
  • 8
    27-95610 GASKET
    GASKET
  • 9
    96669M SHIFT CAM ASS'Y (SHORT SHAFT)
    SHIFT CAM ASS'Y (SHORT SHAFT)
  • 9
    96670M SHIFT CAM ASS'Y (LONG SHAFT)
    SHIFT CAM ASS'Y (LONG SHAFT)
  • 10
    82881M BOOT
    BOOT
  • 11
    82882M PLATE
    PLATE
  • 12
    10-96671M SCREW
    SCREW
  • 13
    12-82214M WASHER
    WASHER
  • 14
    46-95651M HOUSING
    HOUSING
  • 15
    10-804124 BOLT
    BOLT
  • 16
    12-84791M WASHER
    WASHER
  • 17
    84792M COVER (LONG SHAFT)
    COVER (LONG SHAFT)
  • 18
    10-83285M BOLT (LONG SHAFT)
    BOLT (LONG SHAFT)
  • 19
    12-82214M WASHER (LONG SHAFT)
    WASHER (LONG SHAFT)
  • 20
    95658M INSERT CARTRIDGE ASS'Y (CHROME)
    SERIAL 00003750-09999999
    INSERT CARTRIDGE ASS'Y (CHROME)
    SERIAL 00003750-09999999
  • 20
    97791M INSERT CARTRIDGE ASS'Y (CHROME)
    SERIAL 00000000-00003749
    INSERT CARTRIDGE ASS'Y (CHROME)
    SERIAL 00000000-00003749
  • 21
    27-95653M RUBBER
    RUBBER
  • 22
    84825M INSERT (CHROME)
    SERIAL 00000000-00003749
    INSERT (CHROME)
    SERIAL 00000000-00003749
  • 23
    95659M OUTER PLATE (CHROME)
    SERIAL 00003750-09999999
    OUTER PLATE (CHROME)
    SERIAL 00003750-09999999
  • 23
    41274M OUTER PLATE (CHROME)
    SERIAL 00000000-00003749
    OUTER PLATE (CHROME)
    SERIAL 00000000-00003749
  • 24
    27-41273 GASKET
    GASKET
  • 25
    47-84797M IMPELLER
    IMPELLER
  • 26
    811173M PROTECTOR
    SERIAL 00003181-09999999
    PROTECTOR
    SERIAL 00003181-09999999
  • 26
    96672M PROTECTOR
    SERIAL 00000000-00003180
    PROTECTOR
    SERIAL 00000000-00003180
  • 27
    25-84054M O-RING
    O-RING
  • 28
    26-95210M OIL SEAL
    SERIAL 00003181-09999999
    OIL SEAL
    SERIAL 00003181-09999999
  • 28
    26-854017 OIL SEAL
    SERIAL 00000000-00003180
    OIL SEAL
    SERIAL 00000000-00003180
  • 0-1
    1651-9816M GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00004906-09999999
    GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00004906-09999999
  • 0-1
    1651-9816M GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00000000-00004905
    GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00000000-00004905
  • 0-1
    1651-9817M GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00004906-09999999
    GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00004906-09999999
  • 0-1
    1651-9817M GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00000000-00004905
    GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00000000-00004905
  • 29
    27-84799 GASKET
    GASKET
  • 30
    45-96674M DRIVE SHAFT (SHORT SHAFT)
    DRIVE SHAFT (SHORT SHAFT)
  • 30
    45-96675M DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 31
    28-81603M KEY
    KEY
  • 32
    12-83407M THRUST WASHER
    THRUST WASHER
  • 33
    31-83408M BEARING
    BEARING
  • 34
    23-96676M SLEEVE
    SLEEVE
  • 35
    31-96677M BEARING
    BEARING
  • 36
    31-96678M BEARING
    BEARING
  • 37
    15-96679M SHIM (0.70MM)
    SHIM (0.70MM)
  • 37
    15-96680M SHIM (0.75MM)
    SHIM (0.75MM)
  • 37
    15-96681M SHIM (0.80MM)
    SHIM (0.80MM)
  • 37
    15-96682M SHIM (0.85MM)
    SHIM (0.85MM)
  • 38
    31-96683M BEARING
    BEARING
  • 39
    43-96684M PINION
    PINION
  • 40
    12-96685M WASHER
    WASHER
  • 41
    53-96686M SNAP RING
    SNAP RING
  • 42
    31-82321T BEARING
    BEARING
  • 43
    15-96687M SHIM (0.7MM)
    SHIM (0.7MM)
  • 43
    15-96688M SHIM (0.8MM)
    SHIM (0.8MM)
  • 43
    15-96689M SHIM (0.9MM)
    SHIM (0.9MM)
  • 43
    15-96690M SHIM (1.0MM)
    SHIM (1.0MM)
  • 43
    15-96691M SHIM (1.1MM)
    SHIM (1.1MM)
  • 43
    15-96692M SHIM (1.2MM)
    SHIM (1.2MM)
  • 44
    43-96693M GEAR
    GEAR
  • 45
    24-82078M SPRING
    SPRING
  • 46
    80679M SLIDE
    SLIDE
  • 47
    52-8M0121331 CLUTCH
    CLUTCH
  • 48
    17-81899M PIN
    PIN
  • 49
    53-80678M RING, CROSS PIN
    RING, CROSS PIN
  • 50
    80680M PLUNGER
    PLUNGER
  • 51
    12-81831M WASHER
    WASHER
  • 52
    44-96694M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 53
    43-96695M GEAR
    GEAR
  • 54
    15-96696M SHIM (1.2MM)
    SHIM (1.2MM)
  • 54
    15-96697M SHIM (1.3MM)
    SHIM (1.3MM)
  • 54
    15-96698M SHIM (1.4MM)
    SHIM (1.4MM)
  • 54
    15-96699M SHIM (1.5MM)
    SHIM (1.5MM)
  • 54
    15-97023M SHIM (1.6MM)
    SHIM (1.6MM)
  • 54
    15-97024M SHIM (1.7MM)
    SHIM (1.7MM)
  • 54
    15-97025M SHIM (1.8MM)
    SHIM (1.8MM)
  • 55
    30-82291T BEARING
    BEARING
  • 56
    26-82229M OIL SEAL
    OIL SEAL
  • 57
    97026M CAP
    CAP
  • 58
    25-82278M O-RING
    O-RING
  • 59
    17-82356M PIN
    PIN
  • 0-1
    1651-9816M GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00004906-09999999
    GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00004906-09999999
  • 0-1
    1651-9816M GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00000000-00004905
    GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00000000-00004905
  • 0-1
    1651-9817M GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00004906-09999999
    GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00004906-09999999
  • 0-1
    1651-9817M GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00000000-00004905
    GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00000000-00004905
  • 60
    35-95531M COVER
    SERIAL 00003750-09999999
    COVER
    SERIAL 00003750-09999999
  • 60
    11876M COVER
    SERIAL 00003181-00003749
    COVER
    SERIAL 00003181-00003749
  • 60
    35-80246M COVER
    SERIAL 00000000-00003180
    COVER
    SERIAL 00000000-00003180
  • 61
    22-95211M PLUG
    SERIAL 00003181-09999999
    PLUG
    SERIAL 00003181-09999999
  • 61
    22-81920M PLUG
    SERIAL 00000000-00003180
    PLUG
    SERIAL 00000000-00003180
  • 62
    17-41275M PIN
    SERIAL 00003750-09999999
    PIN
    SERIAL 00003750-09999999
  • 63
    22-95632010 PLUG
    SERIAL 00003750-09999999
    PLUG
    SERIAL 00003750-09999999
  • 64
    27-95656M GASKET
    SERIAL 00003750-09999999
    GASKET
    SERIAL 00003750-09999999
  • 65
    10-95566M SCREW
    SERIAL 00003750-09999999
    SCREW
    SERIAL 00003750-09999999
  • 66
    97-18852M ANODE
    SERIAL 00004906-09999999
    ANODE
    SERIAL 00004906-09999999
  • 67
    10-826957M BOLT
    SERIAL 00004906-09999999
    BOLT
    SERIAL 00004906-09999999
  • 68
    12-82214M WASHER
    SERIAL 00004906-09999999
    WASHER
    SERIAL 00004906-09999999
  • 69
    95212M COVER
    COVER
  • 70
    97-83394M ANODE
    SERIAL 00004906-09999999
    ANODE
    SERIAL 00004906-09999999
  • 70
    95213M ANODE
    SERIAL 00003181-00004905
    ANODE
    SERIAL 00003181-00004905
  • 70
    97-83394M ANODE
    SERIAL 00000000-00003180
    ANODE
    SERIAL 00000000-00003180
  • 71
    10-826957M BOLT
    BOLT
  • 72
    12-82214M WASHER
    WASHER
  • 73
    32-81605M TUBE (SHORT SHAFT)
    TUBE (SHORT SHAFT)
  • 73
    32-84816M TUBE (LONG SHAFT)
    TUBE (LONG SHAFT)
  • 74
    26-84818M RUBBER
    RUBBER
  • 75
    26-80239M RUBBER
    RUBBER
  • 0-1
    1651-9816M GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00004906-09999999
    GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00004906-09999999
  • 0-1
    1651-9816M GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00000000-00004905
    GEARHOUSING ASS'Y (SHORT SHAFT)
    SERIAL 00000000-00004905
  • 0-1
    1651-9817M GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00004906-09999999
    GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00004906-09999999
  • 0-1
    1651-9817M GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00000000-00004905
    GEARHOUSING ASS'Y (LONG SHAFT)
    SERIAL 00000000-00004905
  • 76
    23-84819M SPACER
    SPACER
  • 77
    84820M TUBE (LONG SHAFT)
    TUBE (LONG SHAFT)
  • 78
    25-84821M O-RING (LONG SHAFT)
    O-RING (LONG SHAFT)
  • 79
    41277M PLATE (LONG SHAFT)
    PLATE (LONG SHAFT)
  • 80
    11-97027M NUT
    NUT
  • 81
    18-97028M PIN
    PIN
  • 82
    18-95295 PIN
    PIN
  • 83
    12-83447M WASHER
    WASHER
  • 84
    22-8M0121335 PLUG, FLUSH (OPT)
    PLUG, FLUSH (OPT)
  • 85
    43118M SEAT
    SERIAL 00000000-00004905
    SEAT
    SERIAL 00000000-00004905
  • 86
    10-81711M BOLT
    BOLT
  • 87
    10-94720M BOLT
    BOLT
  • 88
    12-82220M WASHER
    WASHER
  • 89
    17-82364M PIN
    PIN
  • 89
    27-95441M LOWER UNIT GASKET SET
    SERIAL 00003750-09999999
    LOWER UNIT GASKET SET
    SERIAL 00003750-09999999
  • 89
    27-95214M LOWER UNIT GASKET SET
    SERIAL 00003181-00003749
    LOWER UNIT GASKET SET
    SERIAL 00003181-00003749
  • 89
    27-97029M LOWER UNIT GASKET SET
    SERIAL 00000000-00003180
    LOWER UNIT GASKET SET
    SERIAL 00000000-00003180
  • 89
    95442M WATER PUMP REPAIR KIT
    SERIAL 00003750-09999999
    WATER PUMP REPAIR KIT
    SERIAL 00003750-09999999
  • 89
    95215M WATER PUMP REPAIR KIT
    SERIAL 00003181-00003749
    WATER PUMP REPAIR KIT
    SERIAL 00003181-00003749
  • 89
    97030M WATER PUMP REPAIR KIT
    SERIAL 00000000-00003180
    WATER PUMP REPAIR KIT
    SERIAL 00000000-00003180
