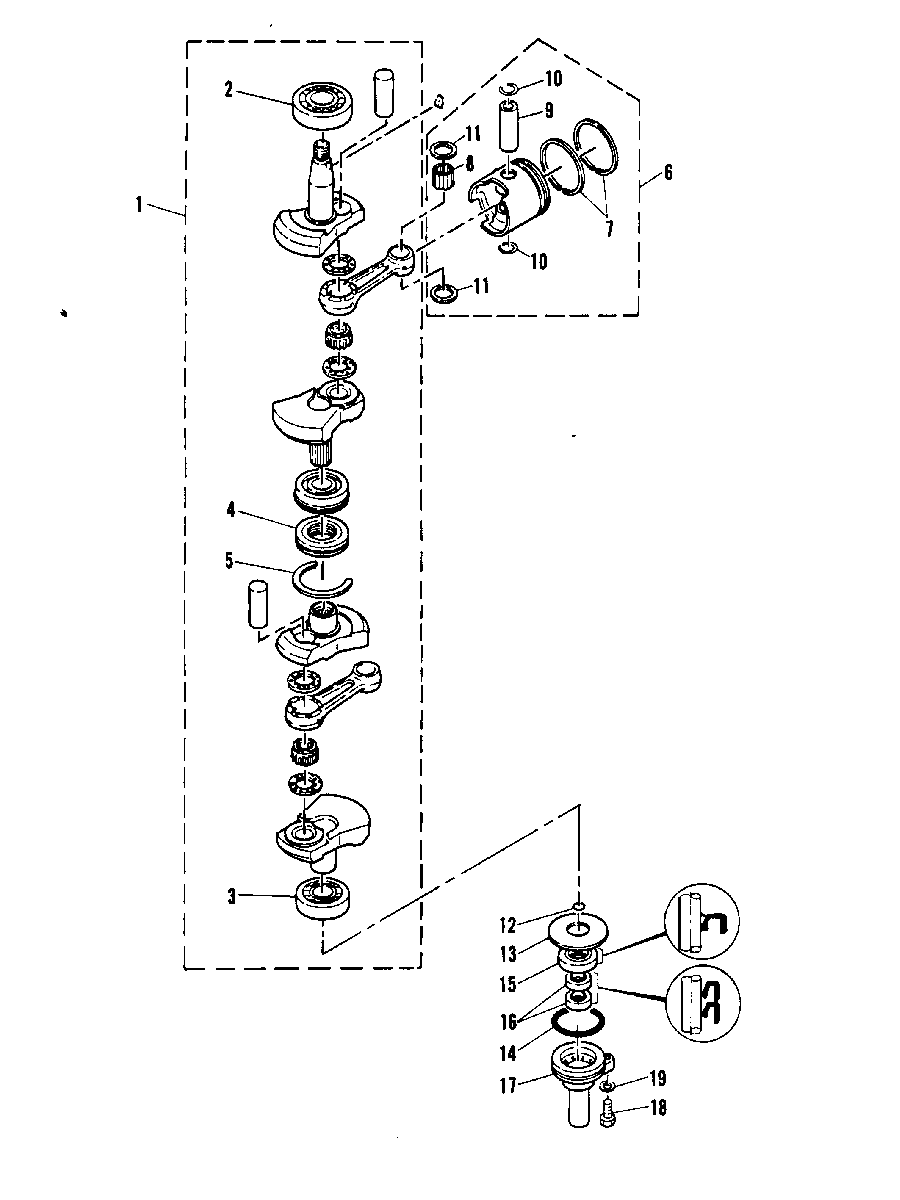

CRANKSHAFT AND PISTON для Mariner - W30 (W/MARATHON) 689-B300101 AND UP

  • №
    Артикул
    Название
  • 1
    463-9068M CRANKSHAFT ASS'Y
    SERIAL 00003181-09999999
    CRANKSHAFT ASS'Y
    SERIAL 00003181-09999999
  • 1
    463-7195M CRANKSHAFT ASS'Y
    SERIAL 00000000-00003180
    CRANKSHAFT ASS'Y
    SERIAL 00000000-00003180
  • 2
    30-96659T BEARING
    BEARING
  • 3
    30-82307T BEARING
    BEARING
  • 4
    93066M SEAL
    SEAL
  • 5
    53-82937M SNAP RING
    SNAP RING
  • 6
    761-8031M PISTON ASS'Y (STD)
    PISTON ASS'Y (STD)
  • 6
    761-8032M PISTON ASS'Y (1ST O.S. 72.25MM)
    PISTON ASS'Y (1ST O.S. 72.25MM)
  • 6
    761-8033M PISTON ASS;Y (2ND O.S. 72.50MM)
    PISTON ASS;Y (2ND O.S. 72.50MM)
  • 7
    39-94636M PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 7
    39-94637M PISTON RING SET (1ST O.S. 72.25MM)
    PISTON RING SET (1ST O.S. 72.25MM)
  • 7
    39-94638M PISTON RING SET (2ND O.S. 72.50MM)
    PISTON RING SET (2ND O.S. 72.50MM)
  • 8
    29-84452M BEARING
    BEARING
  • 9
    41-84749M PIN, PISTON
    PIN, PISTON
  • 10
    53-81264M CLIP, PISTON PIN
    SERIAL 00003181-09999999
    CLIP, PISTON PIN
    SERIAL 00003181-09999999
  • 11
    12-84750M WASHER
    WASHER
  • 12
    25-82268M O-RING
    O-RING
  • 13
    23-81842M WASHER
    WASHER
  • 14
    25-84089M O-RING
    O-RING
  • 15
    26-19133M OIL SEAL
    SERIAL 00004906-09999999
    OIL SEAL
    SERIAL 00004906-09999999
  • 15
    26-84752M OIL SEAL
    SERIAL 00004519-00004905
    OIL SEAL
    SERIAL 00004519-00004905
  • 15
    26-84752M OIL SEAL
    SERIAL 00004232-00004518
    OIL SEAL
    SERIAL 00004232-00004518
  • 15
    26-84752M OIL SEAL
    SERIAL 00000000-00004231
    OIL SEAL
    SERIAL 00000000-00004231
  • 16
    26-83347M OIL SEAL
    SERIAL 00004906-09999999
    OIL SEAL
    SERIAL 00004906-09999999
  • 16
    26-83347M OIL SEAL
    SERIAL 00000000-00004905
    OIL SEAL
    SERIAL 00000000-00004905
  • 17
    8M0059029 HOUSING, OIL SEAL
    SERIAL 00004906-09999999
    HOUSING, OIL SEAL
    SERIAL 00004906-09999999
  • 17
    8M0059029 HOUSING, OIL SEAL
    SERIAL 00000000-00004905
    HOUSING, OIL SEAL
    SERIAL 00000000-00004905
  • 18
    10-94526M BOLT
    SERIAL 00003181-09999999
    BOLT
    SERIAL 00003181-09999999
  • 18
    10-82405M BOLT
    SERIAL 00000000-00003180
    BOLT
    SERIAL 00000000-00003180
  • 19
    12-82214M WASHER
    WASHER
