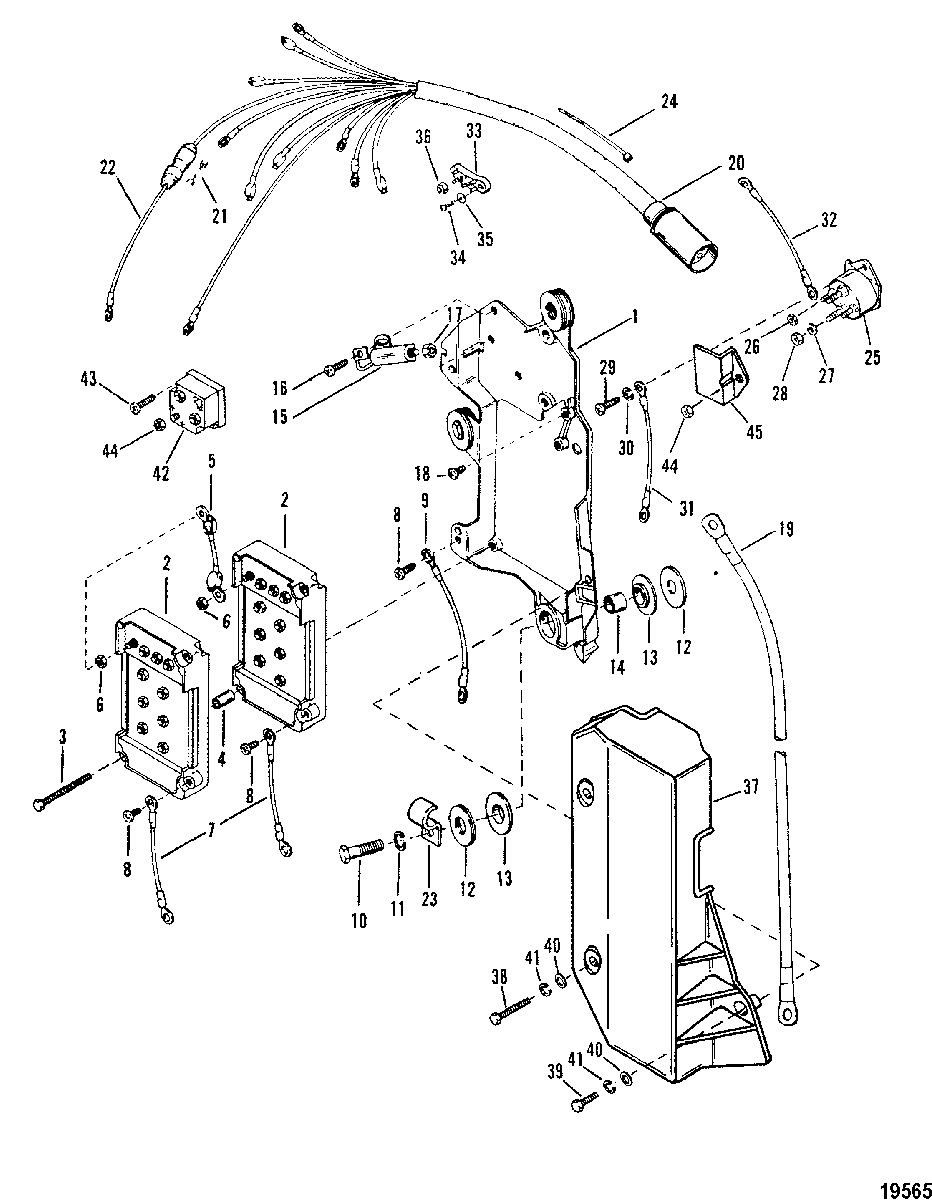

Wiring Harness/Starter Solenoid для Mariner - V-150 0C239553 THRU 0D081999
-
№АртикулНазвание
-
1434292 IGNITION PLATEIGNITION PLATE
-
2332-7778A12 SWITCH BOXSWITCH BOX
-
310-13669 SCREW, (12-24 x 2.00), SWITCH BOX TO IGNITION PLATESCREW, (12-24 x 2.00), SWITCH BOX TO IGNITION PLATE
-
423-94453 BUSHING, SWITCH BOX SCREWBUSHING, SWITCH BOX SCREW
-
584-62310A2 CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOXCABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX
-
611-45076 NUT, (#10-32), SWITCH BOX TERMINALNUT, (#10-32), SWITCH BOX TERMINAL
-
784-60871A10 WIRE ASSEMBLY, SWITCH BOXWIRE ASSEMBLY, SWITCH BOX
-
810-62568 SCREW, (#10-16 x .375), WIRE ATTACHINGSCREW, (#10-16 x .375), WIRE ATTACHING
-
984-65999A3 CABLE ASSEMBLY, (Black)CABLE ASSEMBLY, (Black)
-
1010-60411 SCREW, (1.25), IGNITION PLATESCREW, (1.25), IGNITION PLATE
-
1113-26993 LOCKWASHER, (.312), IGNITION PLATE SCREWLOCKWASHER, (.312), IGNITION PLATE SCREW
-
1212-36042 WASHER, IGNITION PLATE SCREWWASHER, IGNITION PLATE SCREW
-
1312-67264 WASHER, (Rubber), IGNITION PLATE SCREWWASHER, (Rubber), IGNITION PLATE SCREW
-
1423-67268 BUSHING, IGNITION PLATE SCREWBUSHING, IGNITION PLATE SCREW
-
1587-33386A3 SWITCH ASSEMLBYSWITCH ASSEMLBY
-
1610-38055 SCREW, (.190-32 X .62), MERCURY SWITCH TO IGNITION PLATESCREW, (.190-32 X .62), MERCURY SWITCH TO IGNITION PLATE
-
1711-45076 NUT, (#10-32), MERCURY SWITCH TERMINALNUT, (#10-32), MERCURY SWITCH TERMINAL
-
1810-87926 SCREW, (#10-32 x .500), LEAD ATTACHINGSCREW, (#10-32 x .500), LEAD ATTACHING
-
1984-88439A3 BATTERY CABLE, PositiveBATTERY CABLE, Positive
-
1984-88439A4 BATTERY CABLE, NegativeBATTERY CABLE, Negative
-
2084-96220A12 HARNESS, ENGINE (USE W/O RECTIFIER)HARNESS, ENGINE (USE W/O RECTIFIER)
-
2084-96220A4 HARNESS, ENGINE (USE W/RECTIFIER)HARNESS, ENGINE (USE W/RECTIFIER)
-
2188-79091 FUSE, (20 Ampere)FUSE, (20 Ampere)
-
2284-95084A2 CABLE ASSEMBLY, FUSECABLE ASSEMBLY, FUSE
-
2354-47483 J CLIPJ CLIP
-
2454-816311T CABLE TIE, (8.00 Inches), HARNESS AND CABLESCABLE TIE, (8.00 Inches), HARNESS AND CABLES
-
2589-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
2611-45076 NUT, (#10-32), SOLENOID TERMINALSNUT, (#10-32), SOLENOID TERMINALS
-
2713-53166 LOCKWASHER, (.312), SOLENOID TERMINALSLOCKWASHER, (.312), SOLENOID TERMINALS
-
2811-68292 NUT, (.312-18), SOLENOID TERMINALSNUT, (.312-18), SOLENOID TERMINALS
-
2910-31716 SCREW, (.250-20 x .62), SOLENOID TO IGNITION PLATESCREW, (.250-20 x .62), SOLENOID TO IGNITION PLATE
-
3013-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
3184-65999A2 CABLE ASSEMBLY, (Black), UPPER MOUNTCABLE ASSEMBLY, (Black), UPPER MOUNT
-
3284-91865A1 CABLE ASSEMBLY (3" - WHITE/BLACK)CABLE ASSEMBLY (3" - WHITE/BLACK)
-
3284-88528A2 CABLE ASSEMBLY (6" - RED/WHITE)CABLE ASSEMBLY (6" - RED/WHITE)
-
3386-194372 TERMINAL BLOCKTERMINAL BLOCK
-
3410-38055 SCREW, (.190-32 X .62)SCREW, (.190-32 X .62)
-
3512-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
3611-45076 NUT, (#10-32)NUT, (#10-32)
-
37814422T COVER, IGNITION PLATECOVER, IGNITION PLATE
-
3810-88447 SCREW, (.190-32 x 1.62)SCREW, (.190-32 x 1.62)
-
3910-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
4012-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
4113-26996 LOCKWASHER, (#10)LOCKWASHER, (#10)
-
428M0058226 RECTIFIERRECTIFIER
-
4310-38055 SCREW, (.190-32 X .62)SCREW, (.190-32 X .62)
-
4411-45076 NUT, (#10-32)NUT, (#10-32)
-
4585-78866 INSULATORINSULATOR
