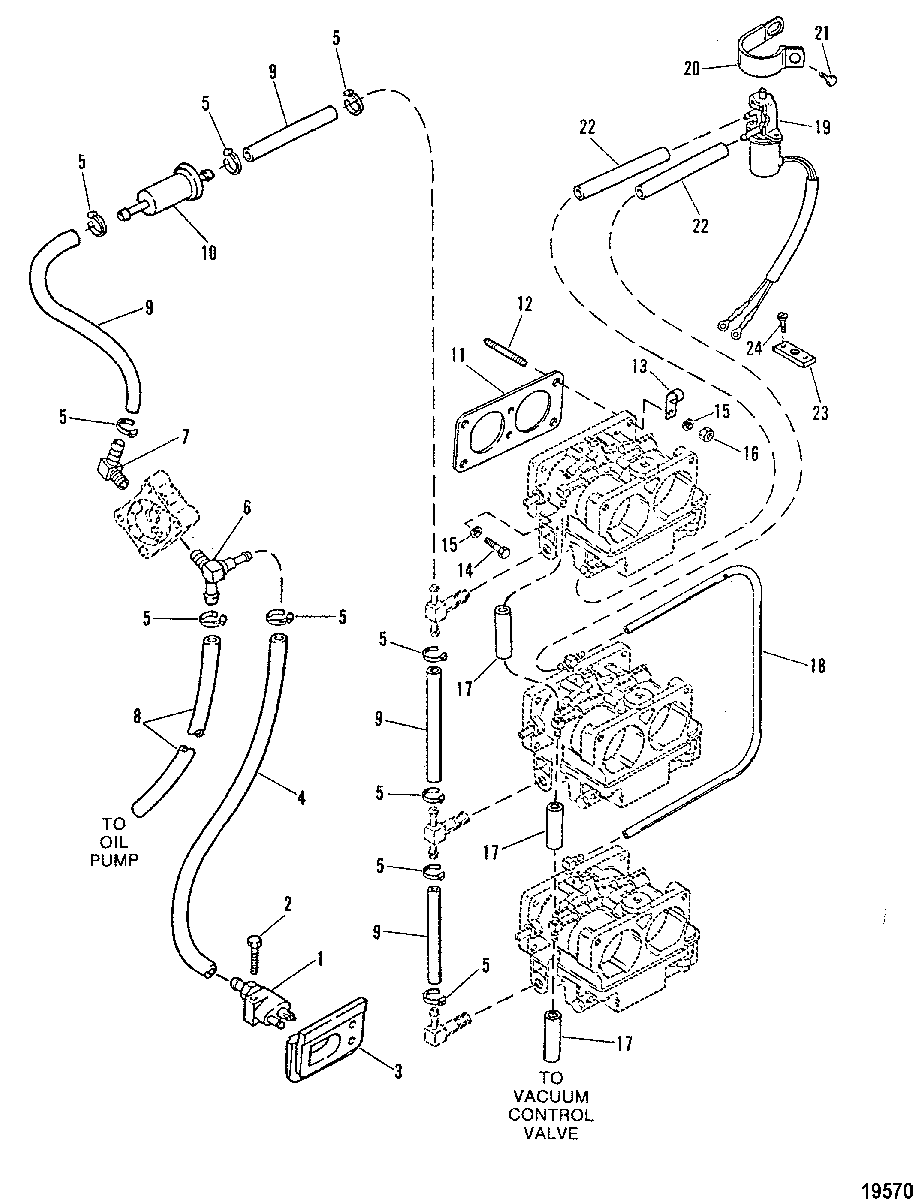

Fuel Lines для Mariner - V-150 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    22-816856Q3 FUEL CONNECTOR, Plastic
    FUEL CONNECTOR, Plastic
  • 2
    10-69067 SCREW, (.25-20 X 1.375), FUEL CONNECTOR
    SCREW, (.25-20 X 1.375), FUEL CONNECTOR
  • 3
    812782 SEAL
    SEAL
  • 4
    32-8M0108349 TUBING
    TUBING
  • 5
    54-816311T CABLE TIE, (8.00 Inches)
    CABLE TIE, (8.00 Inches)
  • 6
    22-814964 FITTING
    FITTING
  • 7
    22-19688 FITTING (ELBOW)
    FITTING (ELBOW)
  • 8
    32-82381335 TUBING, (8.00 Inch)
    TUBING, (8.00 Inch)
  • 9
    32-8M0108355 FUEL LINE, (57.00 Inches Bulk)
    FUEL LINE, (57.00 Inches Bulk)
  • 10
    35-816296Q03 FILTER, Fuel
    FILTER, Fuel
  • 11
    27-67751 GASKET
    GASKET
  • 12
    16-270372 STUD, (.250-28 x 1.125)
    STUD, (.250-28 x 1.125)
  • 13
    54-55098 J CLIP
    J CLIP
  • 14
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 15
    13-26992 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 16
    11-29598 NUT, (.250-28)
    NUT, (.250-28)
  • 17
    32-9912878 HOSE, (26.00 Inches Bulk)
    HOSE, (26.00 Inches Bulk)
  • 18
    32-892024122 TUBING, (20.00 Feet Bulk)
    TUBING, (20.00 Feet Bulk)
  • 19
    42859A2 ENRICHNER VALVE
    ENRICHNER VALVE
  • 20
    54-633001 CLAMP
    CLAMP
  • 21
    10-73286 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 22
    32-9912688 TUBING, (36.00 Inches Bulk)
    TUBING, (36.00 Inches Bulk)
  • 23
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 24
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 24
    10-38055 SCREW, (.190-32 X .62)
    SCREW, (.190-32 X .62)
  • 24
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 24
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • -
    27-815791A92 GASKET SET
    (135/150)
    GASKET SET
    (135/150)
  • -
    27-815791A92 GASKET SET
    (XR4/Magnum II/175)
    GASKET SET
    (XR4/Magnum II/175)
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
