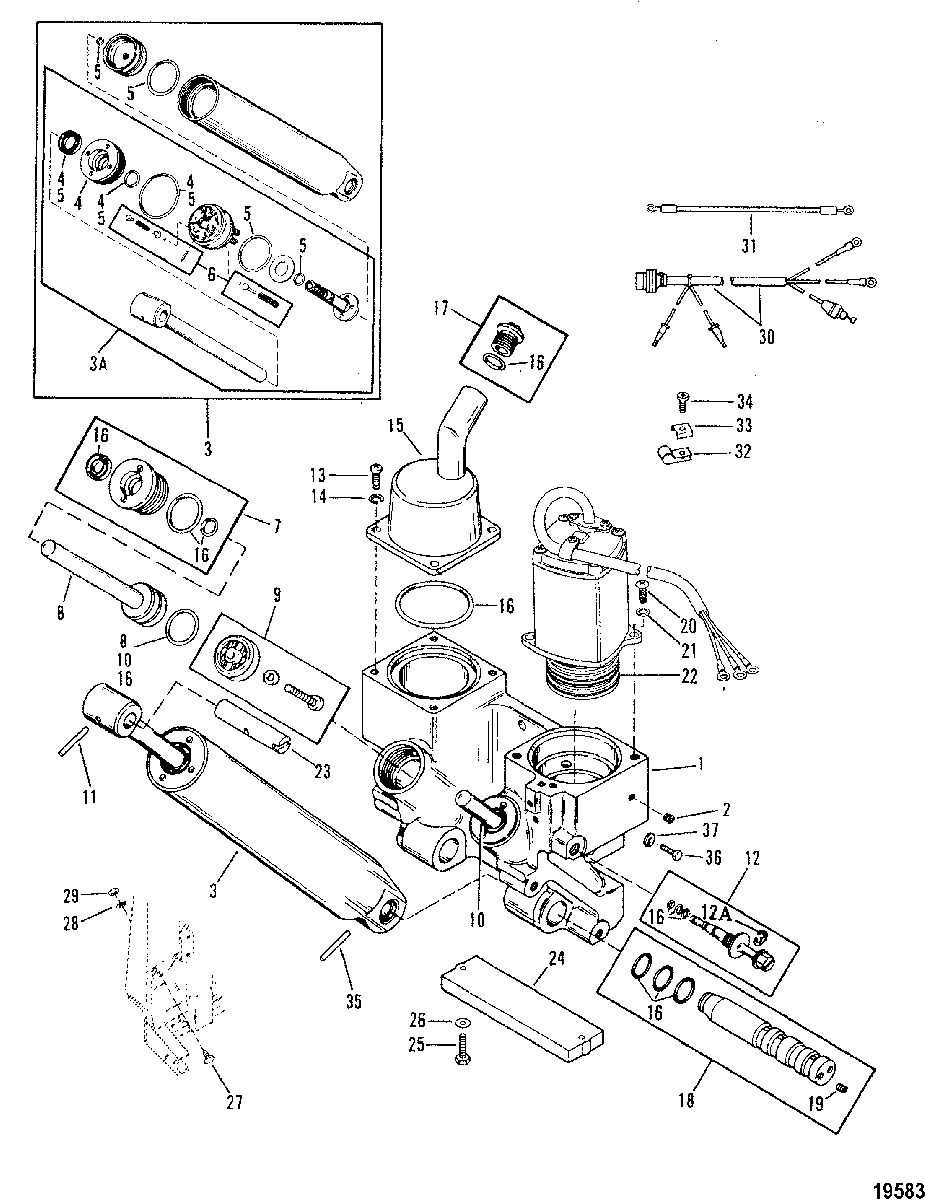

Power Trim Components(Design I) для Mariner - V-150 0C239553 THRU 0D081999
-
№АртикулНазвание
-
199659A21 MANIFOLD ASSEMBLY (BLACK)MANIFOLD ASSEMBLY (BLACK)
-
199659A22 MANIFOLD ASSEMBLY (GRAY)MANIFOLD ASSEMBLY (GRAY)
-
222-56800 PIPE PLUG, MANIFOLDPIPE PLUG, MANIFOLD
-
341493A7 TRIM CYLINDER ASSEMBLY (BLACK)TRIM CYLINDER ASSEMBLY (BLACK)
-
341493A7 TRIM CYLINDER ASSEMBLY (GRAY)TRIM CYLINDER ASSEMBLY (GRAY)
-
3A811600 GUIDE KITGUIDE KIT
-
441492A1 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
525-41478A1 REPAIR KITREPAIR KIT
-
641482A2 CHECK VALVE KITCHECK VALVE KIT
-
71100-8M0021648 GUIDE ASSEMBLY, TRIM RODGUIDE ASSEMBLY, TRIM ROD
-
8878413A1 PISTON AND ROD ASSEMBLY, PORTPISTON AND ROD ASSEMBLY, PORT
-
935-12184A1 TRIM FILTER ASSEMBLYTRIM FILTER ASSEMBLY
-
10878414T01 PISTON AND ROD ASSEMBLY, STARBOARDPISTON AND ROD ASSEMBLY, STARBOARD
-
1117-821539 PIN, Groove, TRIM CYLINDER (UPPER - W/O HEAD)PIN, Groove, TRIM CYLINDER (UPPER - W/O HEAD)
-
1117-821539 PIN, Groove (W/ HEAD)PIN, Groove (W/ HEAD)
-
12893929A01 VALVE ASSEMBLYVALVE ASSEMBLY
-
12A53-815949001 E RINGE RING
-
1310-4000327 SCREW, (M6 x 14), COVERSCREW, (M6 x 14), COVER
-
1412-4002315 WASHER, COVER SCREWWASHER, COVER SCREW
-
1599642 COVER, MANIFOLDCOVER, MANIFOLD
-
1625-48462A4 O-RING KITO-RING KIT
-
1719-99609A1 PLUG ASSEMBLYPLUG ASSEMBLY
-
1899641A02 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
1922-56800 PIPE PLUG, SHAFTPIPE PLUG, SHAFT
-
2010-4008820 SCREW, (M6 x 20), PUMP AND MOTORSCREW, (M6 x 20), PUMP AND MOTOR
-
2113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
22826729A10 PUMP AND MOTORPUMP AND MOTOR
-
2399625002 SHAFT, UPPERSHAFT, UPPER
-
2497-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
2510-4000330 SCREW, (M6 x 25), ANODESCREW, (M6 x 25), ANODE
-
2612-29245 WASHER, (.281 x .500 x .060), ANODE SCREWWASHER, (.281 x .500 x .060), ANODE SCREW
-
278M0045383 STRIKER PLATE, TRIM SHAFTSTRIKER PLATE, TRIM SHAFT
-
2813-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2911-46335 NUT, (.375-24)NUT, (.375-24)
-
3084-814609A1 CONTROL HARNESS, POWER TRIMCONTROL HARNESS, POWER TRIM
-
3184-88808A22 CABLE (6-3/8" - RED)CABLE (6-3/8" - RED)
-
3184-88808A23 CABLE (24" - RED)CABLE (24" - RED)
-
3184-87379A14 WIRE ASSEMBLY, (2.750 Inches) (RED)WIRE ASSEMBLY, (2.750 Inches) (RED)
-
3254-22875 CLIP, PUMP WIRECLIP, PUMP WIRE
-
338M0084613 C WASHER, CLIP SCREWC WASHER, CLIP SCREW
-
3410-69079 SCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKETSCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKET
-
3517-878267 PIN, Groove, TRIM CYLINDER (LOWER)PIN, Groove, TRIM CYLINDER (LOWER)
-
3610-4000377 SCREW, (M10 x 30), MANIFOLDSCREW, (M10 x 30), MANIFOLD
-
3713-400258 LOCKWASHER, SS, MANIFOLD SCREWLOCKWASHER, SS, MANIFOLD SCREW
