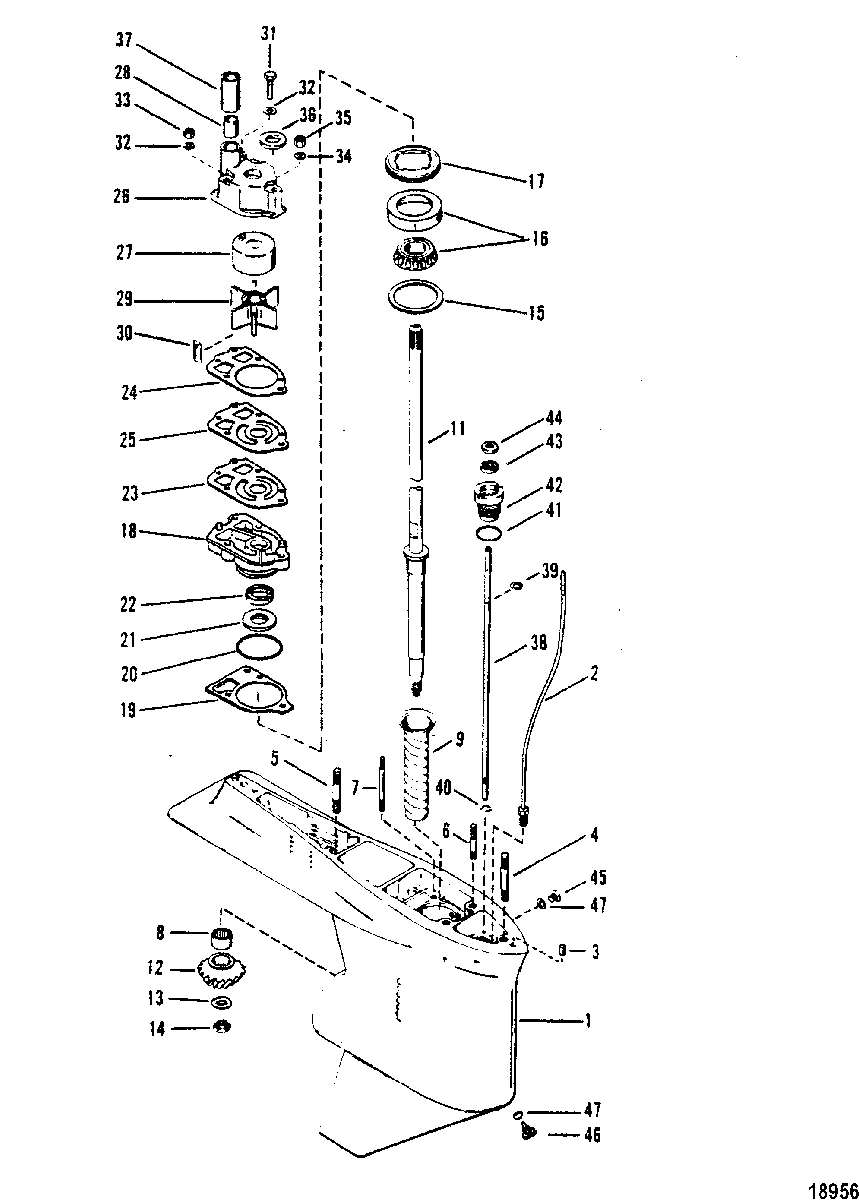

Gear Housing(Drive-Standard/Counter Rotation) для Mariner - V-150 0C239553 THRU 0D081999
-
№АртикулНазвание
-
-1647-9148T81 GEAR HOUSING (LONG)
(Black 135/150)(Standard)GEAR HOUSING (LONG)
(Black 135/150)(Standard) -
-1647-9148T82 GEAR HOUSING (X-LONG)
(Black 135/150)(Standard)GEAR HOUSING (X-LONG)
(Black 135/150)(Standard) -
-1647-9148T81 GEAR HOUSING (LONG)
(Gray 135/150)(Standard)GEAR HOUSING (LONG)
(Gray 135/150)(Standard) -
-1647-9148T82 GEAR HOUSING (X-LONG)
(Gray 135/150)(Standard)GEAR HOUSING (X-LONG)
(Gray 135/150)(Standard) -
-1674-814247T3 GEAR HOUSING BLACK
(XR4)GEAR HOUSING BLACK
(XR4) -
-1674-814247T3 GEAR HOUSING GRAY
(Magnum II)GEAR HOUSING GRAY
(Magnum II) -
-1674-814247T3 GEAR HOUSING BLACK
(XR4)GEAR HOUSING BLACK
(XR4) -
-1674-814247T3 GEAR HOUSING GRAY
(Magnum II)GEAR HOUSING GRAY
(Magnum II) -
-1647-9148T84 GEAR HOUSING (LONG)
(Black 175/200)(Standard)GEAR HOUSING (LONG)
(Black 175/200)(Standard) -
-1647-9148T85 GEAR HOUSING ( X-LONG)
(Black 175/200)(Standard)GEAR HOUSING ( X-LONG)
(Black 175/200)(Standard) -
-1647-9148T84 GEAR HOUSING (LONG)
(Gray 175/200)(Standard)GEAR HOUSING (LONG)
(Gray 175/200)(Standard) -
-1647-9148T85 GEAR HOUSING (X-LONG)
(Gray 175/200)(Standard)GEAR HOUSING (X-LONG)
(Gray 175/200)(Standard) -
-1647-9148T83 GEAR HOUSING (X-LONG)
(Black 135/150)(Counter Rotation)GEAR HOUSING (X-LONG)
(Black 135/150)(Counter Rotation) -
-1647-9148T89 GEAR HOUSING (X-LONG)
(Gray 135/150)(Counter Rotation)GEAR HOUSING (X-LONG)
(Gray 135/150)(Counter Rotation) -
-1647-9148T86 GEAR HOUSING (X-LONG)
(Black 175/200)(Counter Rotation)GEAR HOUSING (X-LONG)
(Black 175/200)(Counter Rotation) -
-1647-9148T86 GEAR HOUSING (X-LONG)
(Gray 175/200)(Counter Rotation)GEAR HOUSING (X-LONG)
(Gray 175/200)(Counter Rotation) -
11647-9148T47 GEAR HOUSING ASSEMBLY (BLACK-Basic)
(135/150/175/200)GEAR HOUSING ASSEMBLY (BLACK-Basic)
(135/150/175/200) -
11647-9148T47 GEAR HOUSING ASSEMBLY (GRAY-Basic)
(135/150/175/200)GEAR HOUSING ASSEMBLY (GRAY-Basic)
(135/150/175/200) -
11674-814247T8 GEAR HOUSING (BLACK-Basic)
(XR4)GEAR HOUSING (BLACK-Basic)
(XR4) -
11674-814247T1 GEAR HOUSING, Basic Black
(XR4)GEAR HOUSING, Basic Black
(XR4) -
11674-814247T9 GEAR HOUSING (GRAY-Basic)
(Magnum II)GEAR HOUSING (GRAY-Basic)
(Magnum II) -
11674-814247T1 GEAR HOUSING , Basic Gray
(Magnum II)GEAR HOUSING , Basic Gray
(Magnum II) -
222-85822A10 CONNECTOR ASSEMLBYCONNECTOR ASSEMLBY
-
317-43044 PIN, DowelPIN, Dowel
-
416-786382 STUD, (.438 x 3.12) (LONG)STUD, (.438 x 3.12) (LONG)
-
416-8M0034464 STUD, (.438 x 3.69) (X-LONG)STUD, (.438 x 3.69) (X-LONG)
-
516-8M0133358 STUD, (.44 x 2.06)STUD, (.44 x 2.06)
-
616-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
716-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
831-42647A1 BEARING ASSEMBLY, Roller
(135/150/175/200)BEARING ASSEMBLY, Roller
(135/150/175/200) -
831-32898T BEARING
(XR4/Magnum II)BEARING
(XR4/Magnum II) -
831-35934A1 ROLLER BEARING
(XR4/Magnum II)ROLLER BEARING
(XR4/Magnum II) -
923-43998 SLEEVESLEEVE
-
1145-897624T DRIVESHAFT (LONG)
(135/150/175/200)DRIVESHAFT (LONG)
(135/150/175/200) -
1145-15298 DRIVESHAFT (Long)
(XR4/Magnum II)DRIVESHAFT (Long)
(XR4/Magnum II) -
1145-897625T DRIVESHAFT (X-LONG)(135/150/175/200)DRIVESHAFT (X-LONG)(135/150/175/200)
-
1145-815168 DRIVESHAFT (X-Long)
(XR4/Magnum II)DRIVESHAFT (X-Long)
(XR4/Magnum II) -
12NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-44102A2)
(135/150-Standard Rotation)NOT SOLD SEPARATE, Pinion Gear (PART OF 43-44102A2)
(135/150-Standard Rotation) -
12NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-16279A2)
(XR4/Magnum II)NOT SOLD SEPARATE, Pinion Gear (PART OF 43-16279A2)
(XR4/Magnum II) -
12NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-44104A2)
(175/200-Standard Rotation)NOT SOLD SEPARATE, Pinion Gear (PART OF 43-44104A2)
(175/200-Standard Rotation) -
12NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-18572A1)
(135/150-Counter Rotation)NOT SOLD SEPARATE, Pinion Gear (PART OF 43-18572A1)
(135/150-Counter Rotation) -
12NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-18475A1)
(175/200-Counter Rotation)NOT SOLD SEPARATE, Pinion Gear (PART OF 43-18475A1)
(175/200-Counter Rotation) -
1312-92721 WASHERWASHER
-
1411-35921 NUT, (.625-18)NUT, (.625-18)
-
1515-8M0063267 SHIM SETSHIM SET
-
1631-36387A1 BEARING, RollerBEARING, Roller
-
178245191 NUTNUT
-
1846-8M0077147 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1927-426311 GASKETGASKET
-
2025-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
2126-89238 OIL SEALOIL SEAL
-
2226-16977 OIL SEALOIL SEAL
-
2327-8M0090319 GASKET, LOWERGASKET, LOWER
-
2427-858524 GASKET, UPPERGASKET, UPPER
-
25324351 FACE PLATEFACE PLATE
-
2646-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2748752T INSERTINSERT
-
2826-38970 SEAL, RUBBERSEAL, RUBBER
-
2947-89984T4 IMPELLERIMPELLER
-
3028-8M0032834 KEYKEY
-
3110-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3212-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
3311-8267119 NUT, (.250-28)NUT, (.250-28)
-
3412-36001 WASHERWASHER
-
3511-13436 NUTNUT
-
3625-30271 RING (Use where Applicable)RING (Use where Applicable)
-
3723-29804T SLEEVESLEEVE
-
38789022 SHAFT
(135/150/175/200)SHAFT
(135/150/175/200) -
3815299 SHAFT
(XR4/Magnum II)SHAFT
(XR4/Magnum II) -
388152641 SHIFT SHAFT
(XR4/Magnum II)SHIFT SHAFT
(XR4/Magnum II) -
3953-29641 E-RINGE-RING
-
4053-78907 RETAINING RING (Use Where Applicable)RETAINING RING (Use Where Applicable)
-
4125-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4223-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4326-8164641 OIL SEALOIL SEAL
-
4412-77674 WASHER, RUBBERWASHER, RUBBER
-
4510-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
4622-8M0058389 SCREW, Magnetic, DRAINSCREW, Magnetic, DRAIN
-
4712-191833 WASHER, FiberWASHER, Fiber
-
-46-96148A8 WATER PUMP REBUILD KITWATER PUMP REBUILD KIT
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
