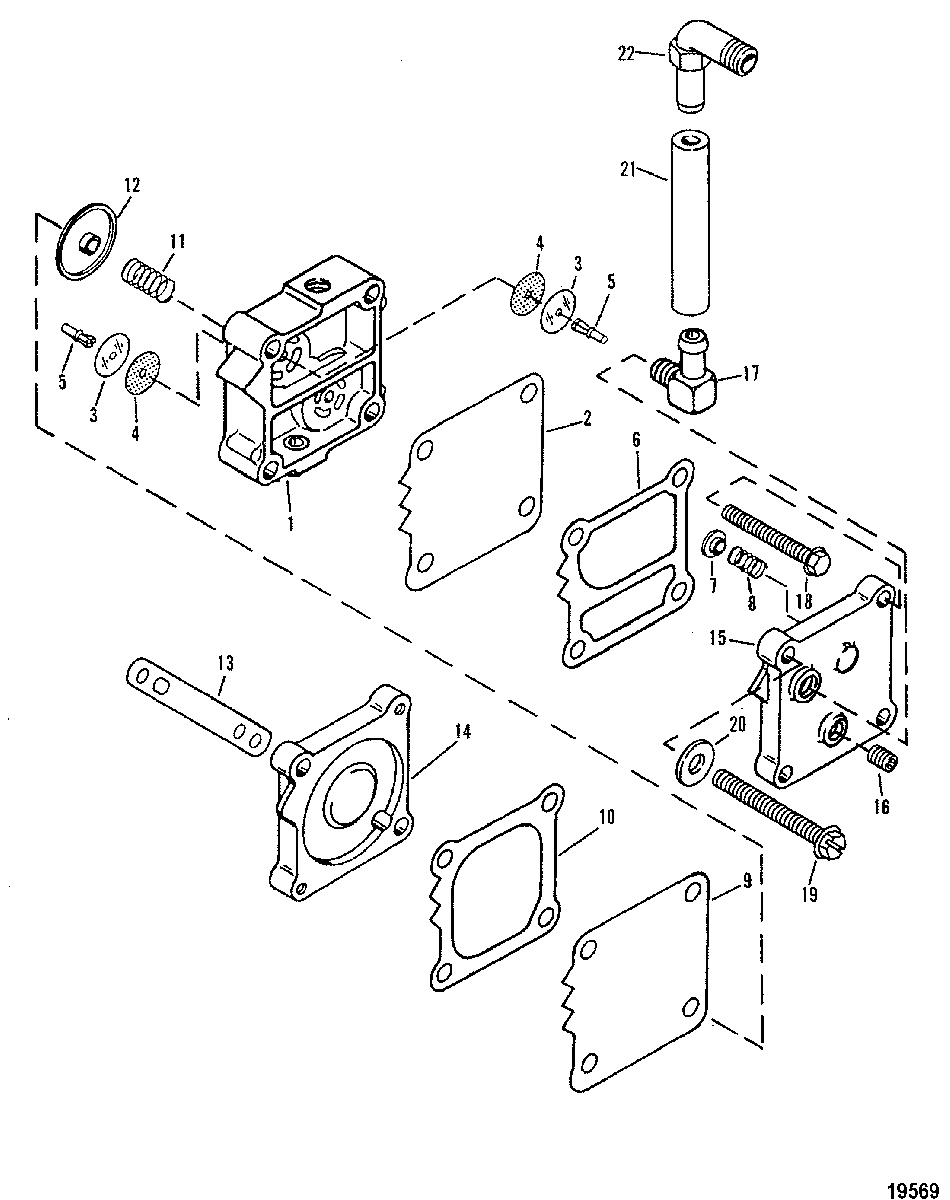

Fuel Pump для Mariner - V-150 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    15930A15 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Check Valve, Rubber
    NOT SOLD SEPARATE, Check Valve, Rubber
  • 4
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 5
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 6
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 7
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 8
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 11
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 12
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 13
    27-987691 GASKET, BASE
    GASKET, BASE
  • 14
    144303 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 15
    987752 PLATE, FUEL PUMP
    PLATE, FUEL PUMP
  • 16
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 17
    22-15979 FITTING
    FITTING
  • 18
    10-16452 SCREW, (#12-24 x 2.00), FUEL PUMP
    SCREW, (#12-24 x 2.00), FUEL PUMP
  • 19
    10-4000310 SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
    SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
  • 20
    12-4002314 WASHER, FUEL PUMP SCREW
    WASHER, FUEL PUMP SCREW
  • 21
    32-9072925 HOSE
    HOSE
  • 22
    22-997511 FITTING, PULSE HOSE
    FITTING, PULSE HOSE
  • -
    27-815791A92 GASKET SET
    (135/150)
    GASKET SET
    (135/150)
  • -
    27-815791A92 GASKET SET
    (XR4/Magnum II/175)
    GASKET SET
    (XR4/Magnum II/175)
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
