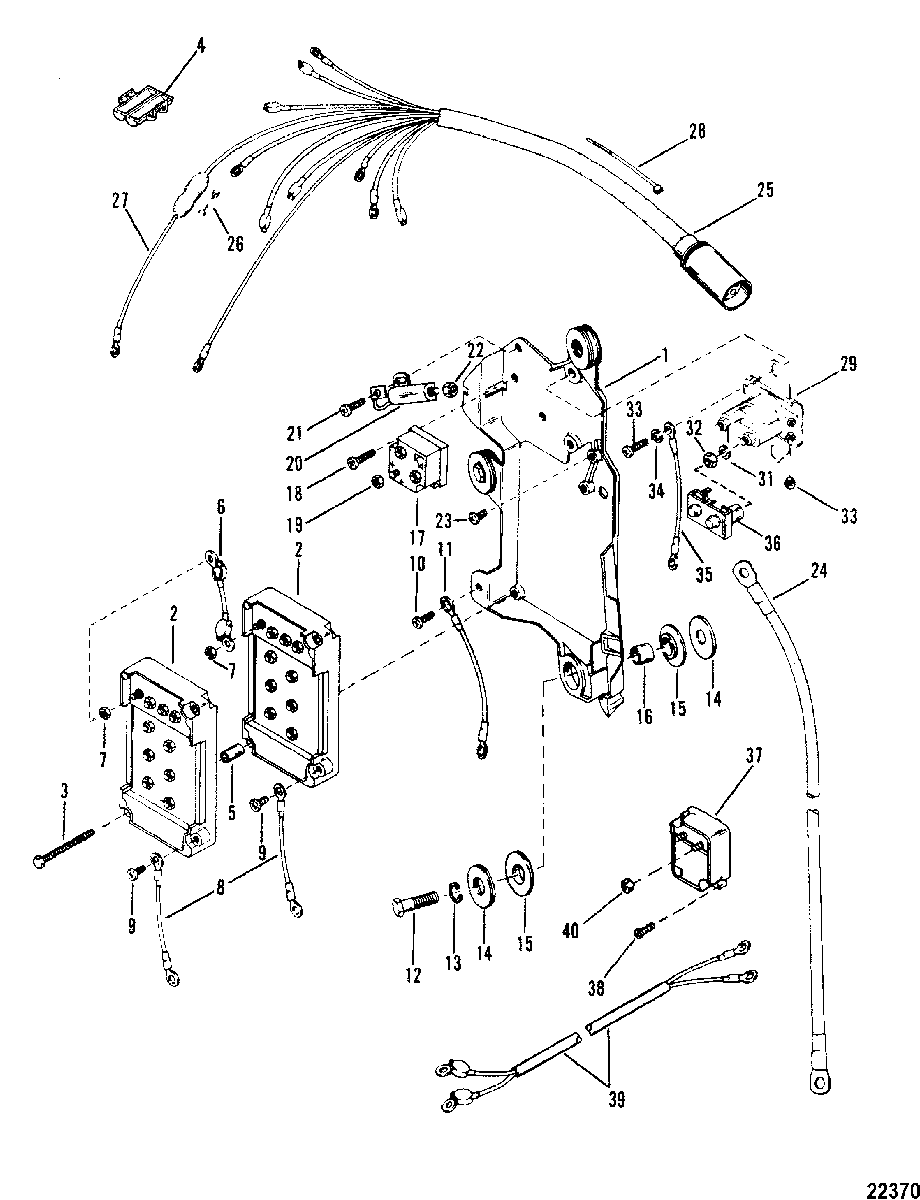

WIRING HARNESS, STARTER SOLENOID AND RECTIFIER для Mariner - MAGNUM II 0B242885 THRU 0C100860
-
№АртикулНазвание
-
1434292 PLATE, IGNITIONPLATE, IGNITION
-
2332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
310-13669 SCREW, (#12-24 x 2.00), SWITCH BOX TO IGNITION PLATESCREW, (#12-24 x 2.00), SWITCH BOX TO IGNITION PLATE
-
4134731 HOLDER, FuseHOLDER, Fuse
-
523-94453 BUSHING, SWITCH BOX SCREWBUSHING, SWITCH BOX SCREW
-
684-62310A2 CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOXCABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX
-
711-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
884-60871A10 WIRE ASSEMBLY, SWITCH BOXWIRE ASSEMBLY, SWITCH BOX
-
910-62568 SCREW, (#10-16 x .375), WIRE ATTACHINGSCREW, (#10-16 x .375), WIRE ATTACHING
-
1010-38055 SCREW, (.190-32 x .620), CABLE TO IGNITION PLATESCREW, (.190-32 x .620), CABLE TO IGNITION PLATE
-
1184-65999A3 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1210-60411 SCREW, (1.25), IGNITION PLATESCREW, (1.25), IGNITION PLATE
-
1313-26993 LOCKWASHER, (.312), IGNITION PLATE SCREWLOCKWASHER, (.312), IGNITION PLATE SCREW
-
1412-36042 WASHER, IGNITION PLATE SCREWWASHER, IGNITION PLATE SCREW
-
1512-67264 WASHER, (Rubber), IGNITION PLATE SCREWWASHER, (Rubber), IGNITION PLATE SCREW
-
1623-67268 BUSHING, IGNITION PLATE SCREWBUSHING, IGNITION PLATE SCREW
-
178M0058226 RECTIFIERRECTIFIER
-
1810-38055 SCREW, (.190-32 x .620), RECTIFIER TO IGNITION PLATESCREW, (.190-32 x .620), RECTIFIER TO IGNITION PLATE
-
1911-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALSNUT, (#10-32) Brass, RECTIFIER TERMINALS
-
2087-33386A3 SWITCH ASSEMLBYSWITCH ASSEMLBY
-
2110-38055 SCREW, (.190-32 x .620), MERCURY SWITCH TO IGNITION PLATESCREW, (.190-32 x .620), MERCURY SWITCH TO IGNITION PLATE
-
2211-45076 NUT, (#10-32) Brass, MERCURY SWITCH TERMINALNUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
-
2310-87926 SCREW, (#10-32 x .500), LEAD ATTACHINGSCREW, (#10-32 x .500), LEAD ATTACHING
-
2484-88439A14 CABLE ASSEMBLY, Battery - Positive, POSITIVECABLE ASSEMBLY, Battery - Positive, POSITIVE
-
2484-88439A2 CABLE ASSEMBLY, Battery - Negative, NEGATIVECABLE ASSEMBLY, Battery - Negative, NEGATIVE
-
2584-96220A4 HARNESS ASSEMBLY, ENGINEHARNESS ASSEMBLY, ENGINE
-
2688-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2784-95084A2 CABLE ASSEMBLY, FUSECABLE ASSEMBLY, FUSE
-
2854-816311T CLAMP, HARNESS AND CABLESCLAMP, HARNESS AND CABLES
-
2989-853654A1 SOLENOID, Starter
10-32 5/16-18 TERMINALSSOLENOID, Starter
10-32 5/16-18 TERMINALS -
3011-45076 NUT, (#10-32) Brass, SOLENOID TERMINALS
10-32 5/16-18 TERMINALSNUT, (#10-32) Brass, SOLENOID TERMINALS
10-32 5/16-18 TERMINALS -
3113-53166 LOCKWASHER, (.312), SOLENOID TERMINALS
10-32 5/16-18 TERMINALSLOCKWASHER, (.312), SOLENOID TERMINALS
10-32 5/16-18 TERMINALS -
3211-68292 NUT, (.312-18), SOLENOID TERMINALS
10-32 5/16-18 TERMINALSNUT, (.312-18), SOLENOID TERMINALS
10-32 5/16-18 TERMINALS -
3310-31716 SCREW, (.250-20 x .620), SOLENOID TO IGNITION PLATESCREW, (.250-20 x .620), SOLENOID TO IGNITION PLATE
-
3413-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TO IGNITION PLATE SCREWLOCKWASHER, (.250) Stainless Steel, SOLENOID TO IGNITION PLATE SCREW
-
3584-65999A2 CABLE ASSEMBLY, Black, UPPER MOUNTCABLE ASSEMBLY, Black, UPPER MOUNT
-
3685-97861 INSULATOR, SOLENOIDINSULATOR, SOLENOID
-
3788825A7 VOLTAGE REGUALTORVOLTAGE REGUALTOR
-
3810-48409 SCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATORSCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATOR
-
3984-13397A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
4011-45076 NUT, (#10-32) Brass, VOLTAGE REGULATORNUT, (#10-32) Brass, VOLTAGE REGULATOR
