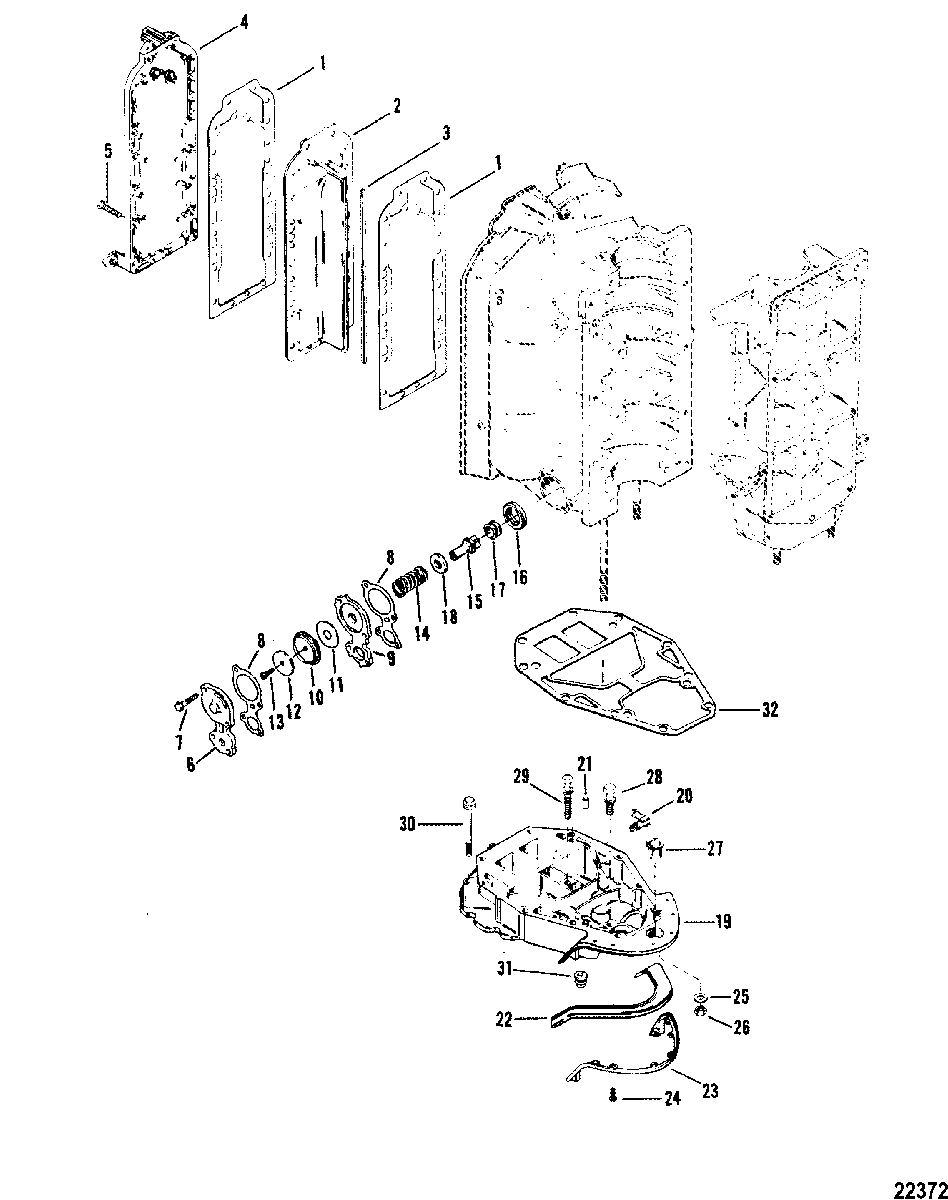

EXHAUST MANIFOLD AND EXHAUST PLATE для Mariner - MAGNUM II 0B242885 THRU 0C100860
-
№АртикулНазвание
-
127-904841 GASKET, DIVIDER PLATEGASKET, DIVIDER PLATE
-
299169A1 DIVIDER PLATEDIVIDER PLATE
-
326-814754 SEAL, DIVIDER PLATESEAL, DIVIDER PLATE
-
495067 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
510-74824 SCREW, (.312-18 x 1.250), COVER AND PLATE TO CYLINDER BLOCKSCREW, (.312-18 x 1.250), COVER AND PLATE TO CYLINDER BLOCK
-
614462A1 COVER, RELIEF VALVECOVER, RELIEF VALVE
-
710-74824 SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCKSCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK
-
827-78690002 GASKET, RELIEF VALVE PLATEGASKET, RELIEF VALVE PLATE
-
916497A1 PLATE, RELIEF VALVEPLATE, RELIEF VALVE
-
10144791 DIAPHRAGMDIAPHRAGM
-
1116496 DEFLECTOR, WaterDEFLECTOR, Water
-
1212-76451 WASHER, DIAPHRAGM SCREWWASHER, DIAPHRAGM SCREW
-
1310-69570 SCREW, (#10-16 x .750), DIAPHRAGM TO PLATESCREW, (#10-16 x .750), DIAPHRAGM TO PLATE
-
1424-64878 SPRING, (Black), COMPRESSION POPPET VALVESPRING, (Black), COMPRESSION POPPET VALVE
-
1514480 POPPET, VALVEPOPPET, VALVE
-
1665848 CARRIER, POPPET VALVECARRIER, POPPET VALVE
-
1725-64872 GROMMET, POPPET VALVEGROMMET, POPPET VALVE
-
1812-85303 WASHER, POPPET SPRINGWASHER, POPPET SPRING
-
1941944A5 PLATE ASSEMBLY, EXHAUSTPLATE ASSEMBLY, EXHAUST
-
2022-996642 ELBOW, EXHAUST PLATEELBOW, EXHAUST PLATE
-
2117-43044 PIN, Dowel, LOCATING - EXHAUST PLATEPIN, Dowel, LOCATING - EXHAUST PLATE
-
22707482 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
23680101 BRACKET, SEAL RETAININGBRACKET, SEAL RETAINING
-
2410-48408 SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATESCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE
-
2512-20553 WASHER, POWERHEAD STUDWASHER, POWERHEAD STUD
-
2611-69254 NUT, POWERHEAD STUDNUT, POWERHEAD STUD
-
2723-27132 BUSHING, EXHAUST PLATEBUSHING, EXHAUST PLATE
-
2810-66727 SCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHINGSCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHING
-
2910-68783 SCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHINGSCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHING
-
3010-898833 SCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHINGSCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHING
-
3125-12602002 GROMMET, EXHAUST PLATEGROMMET, EXHAUST PLATE
-
3227-991764 GASKET, EXHAUT PLATEGASKET, EXHAUT PLATE
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
