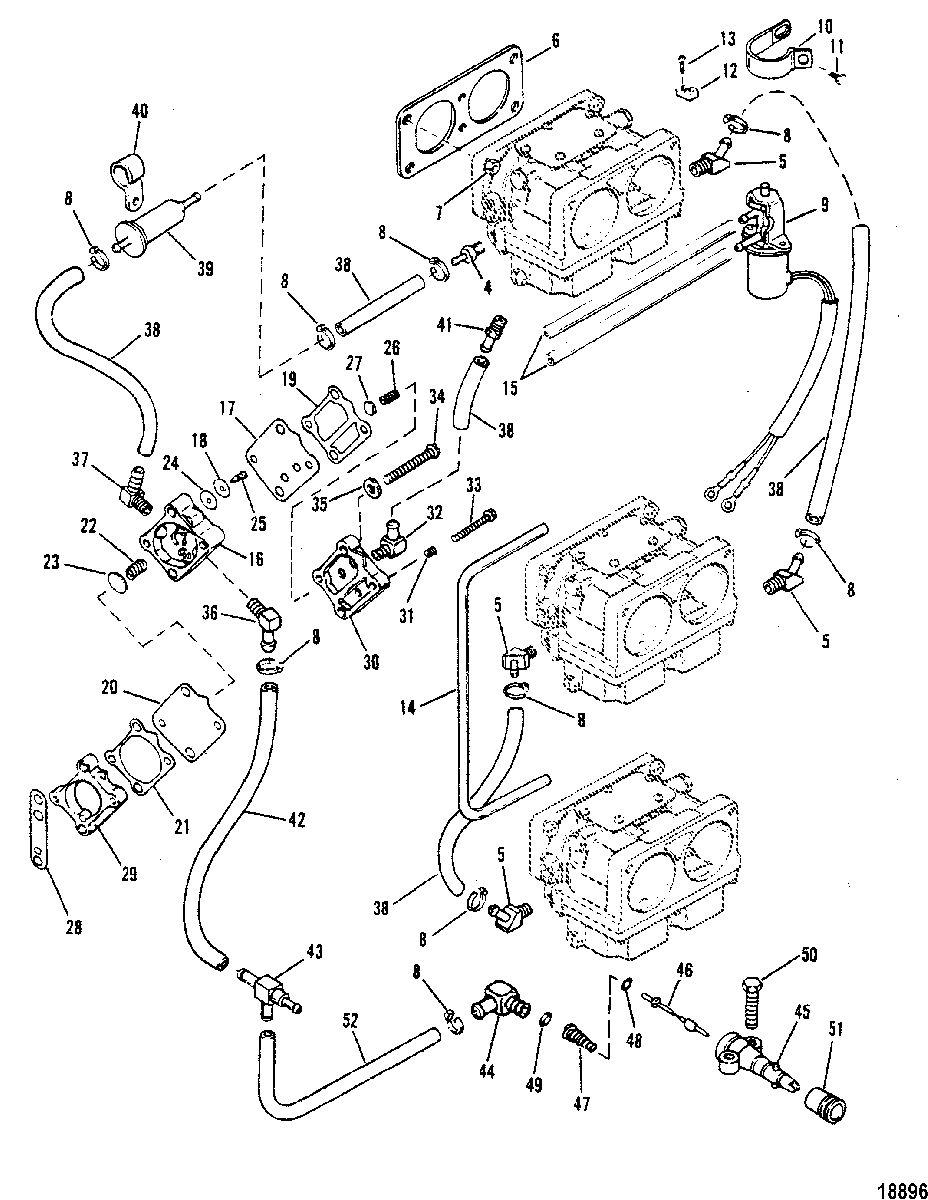

FUEL PUMP AND CARBURETOR для Mariner - MAGNUM II 0B242885 THRU 0C100860

№

Артикул

Название
1

3307-9671A1 CARBURETOR (TOP)

CARBURETOR (TOP)

0 ₽
2

3307-9671A2 CARBURETOR (CENTER)

CARBURETOR (CENTER)

0 ₽
3

3307-9671A3 CARBURETOR (BOTTOM)

CARBURETOR (BOTTOM)

0 ₽
4

1395-6232 FITTING, FUEL INLET (UPPER)

FITTING, FUEL INLET (UPPER)

0 ₽
5

22-70007 FITTING, 45 Degree, FUEL INLET

FITTING, 45 Degree, FUEL INLET

2 620 ₽
6

27-904301 GASKET, CARBURETOR

GASKET, CARBURETOR

170 ₽
7

11-20184 NUT, (1/4-28X7/32), CARBURETOR MOUNTING

NUT, (1/4-28X7/32), CARBURETOR MOUNTING

120 ₽
8

54-816311T CLAMP, FUEL HOSE TO CARBURETOR

CLAMP, FUEL HOSE TO CARBURETOR

40 ₽
9

42859A2 VALVE ASSEMBLY, Enrichner

VALVE ASSEMBLY, Enrichner

18 500 ₽
10

54-633001 CLAMP, ENRICHER VALVE

CLAMP, ENRICHER VALVE

1 020 ₽
11

10-73286 SCREW, (.250-20 x .500) Stainless Steel, VALVE CLAMP

SCREW, (.250-20 x .500) Stainless Steel, VALVE CLAMP

150 ₽
12

86-45915 TERMINAL BLOCK, REED BLOCK HOUSING

TERMINAL BLOCK, REED BLOCK HOUSING

210 ₽
13

10-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHING

SCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHING

0 ₽
14

32-892024122 TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (Cut to 7.75 Inches)

TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (Cut to 7.75 Inches)

4 230 ₽
15

32-9912688 TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (Cut to 4.25 Inches)

TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (Cut to 4.25 Inches)

2 630 ₽
16

15930A15 PUMP ASSEMBLY, Fuel

PUMP ASSEMBLY, Fuel

13 460 ₽
17

21-857005A1 DIAPHRAGM KIT

DIAPHRAGM KIT

3 420 ₽
18

NSS NOT SOLD SEPARATE, Check Valve-Rubber

NOT SOLD SEPARATE, Check Valve-Rubber

0 ₽
19

NSS NOT SOLD SEPARATE, Gasket-Boost

NOT SOLD SEPARATE, Gasket-Boost

0 ₽
20

NSS NOT SOLD SEPARATE, Diaphragm

NOT SOLD SEPARATE, Diaphragm

0 ₽
21

NSS NOT SOLD SEPARATE, Gasket-Pulse

NOT SOLD SEPARATE, Gasket-Pulse

0 ₽
22

NSS NOT SOLD SEPARATE, Spring

NOT SOLD SEPARATE, Spring

0 ₽
23

NSS NOT SOLD SEPARATE, Cap

NOT SOLD SEPARATE, Cap

0 ₽
24

NSS NOT SOLD SEPARATE, Check Vavle

NOT SOLD SEPARATE, Check Vavle

0 ₽
25

NSS NOT SOLD SEPARATE, Retainer

NOT SOLD SEPARATE, Retainer

0 ₽
26

NSS NOT SOLD SEPARATE, Spring

NOT SOLD SEPARATE, Spring

0 ₽
27

NSS NOT SOLD SEPARATE, Cap

NOT SOLD SEPARATE, Cap

0 ₽
28

27-987691 GASKET, BASE

GASKET, BASE

70 ₽
29

144303 BASE, FUEL PUMP

BASE, FUEL PUMP

1 290 ₽
30

987752 PLATE, FUEL PUMP

PLATE, FUEL PUMP

1 350 ₽
31

22-56800 PLUG, Pipe (.0625-27)

PLUG, Pipe (.0625-27)

490 ₽
32

22-19688 FITTING

FITTING

0 ₽
33

10-16452 SCREW, (#12-24 x 2.00), FUEL PUMP

SCREW, (#12-24 x 2.00), FUEL PUMP

290 ₽
34

10-4000310 SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE

SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE

140 ₽
35

12-4002314 WASHER, FUEL PUMP SCREW

WASHER, FUEL PUMP SCREW

170 ₽
36

22-14868 FITTING, FUEL PUMP (ELBOW)

FITTING, FUEL PUMP (ELBOW)

1 790 ₽
37

22-19688 FITTING, FUEL PUMP (ELBOW)

FITTING, FUEL PUMP (ELBOW)

0 ₽
38

32-8M0108355 LINE, (57.00 Inches Bulk)

LINE, (57.00 Inches Bulk)

5 260 ₽
39

35-816296Q03 FILTER, Fuel

FILTER, Fuel

1 400 ₽
40

54-15279 CLAMP, FUEL FILTER

CLAMP, FUEL FILTER

590 ₽
41

22-64705 FITTING, PULSE HOSE

FITTING, PULSE HOSE

710 ₽
42

32-8M0108349 TUBING

TUBING

6 440 ₽
43

22-424253 TEE

TEE

5 440 ₽
44

22-36221 ELBOW, FUEL LINE TO ADAPTOR

ELBOW, FUEL LINE TO ADAPTOR

0 ₽
45

30186 ADAPTOR, CHECK UNIT

ADAPTOR, CHECK UNIT

4 550 ₽
46

30185Q3 STEM, CHECK UNIT ADAPTOR

STEM, CHECK UNIT ADAPTOR

7 310 ₽
47

24-30189 SPRING, ADAPTOR STEM

SPRING, ADAPTOR STEM

220 ₽
48

25-16524 O-RING, ADAPTOR STEM

O-RING, ADAPTOR STEM

120 ₽
49

30188 WASHER, ADAPTOR

WASHER, ADAPTOR

120 ₽
50

10-69067 SCREW, (.250-20 x 1.375), ADAPTOR TO BOTTOM COWL

SCREW, (.250-20 x 1.375), ADAPTOR TO BOTTOM COWL

230 ₽
51

92037 SEAL, FUEL CONNECTOR

SEAL, FUEL CONNECTOR

0 ₽
52

32-8M0108349 TUBING

TUBING

6 440 ₽
-

27-11338A88 GASKET SET, Engine Overhaul

GASKET SET, Engine Overhaul

18 490 ₽
