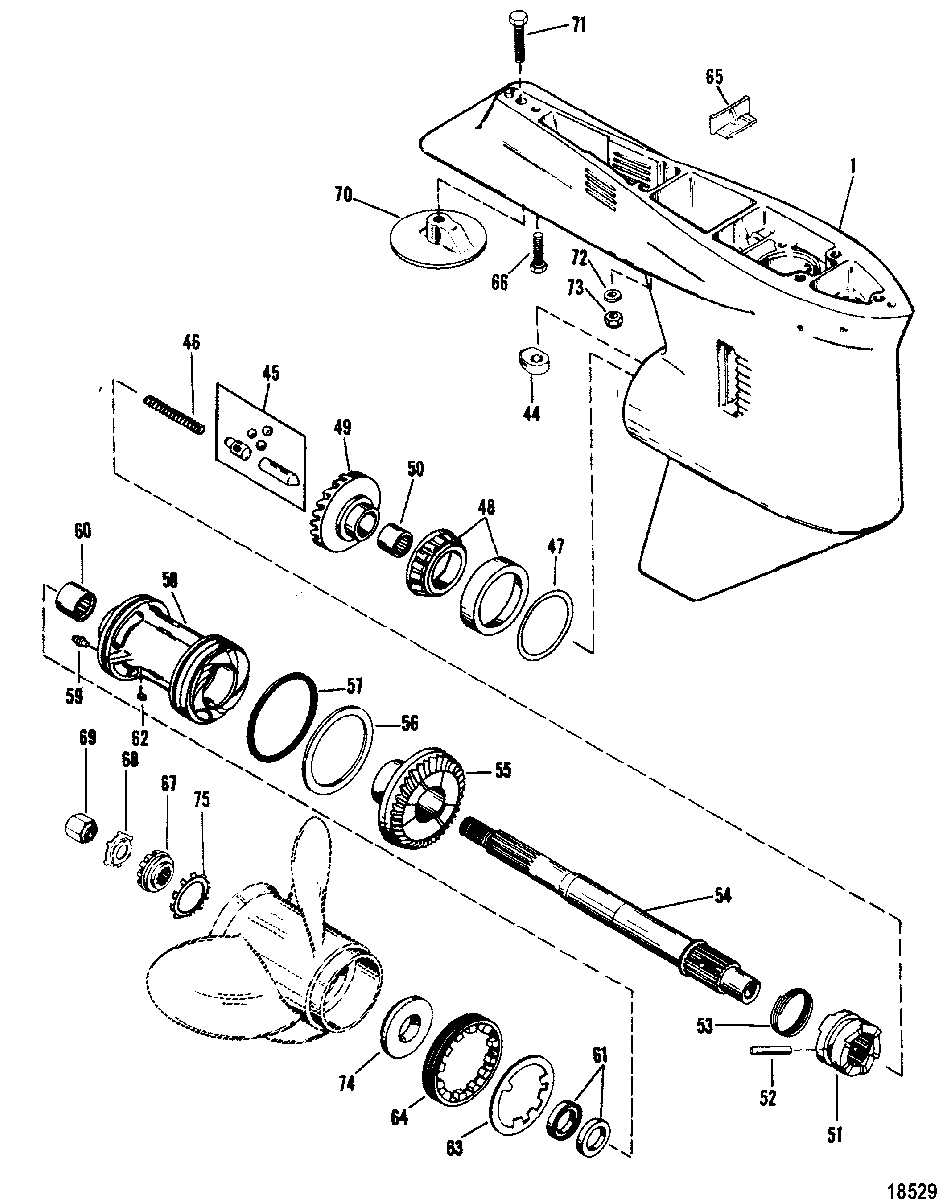

GEAR HOUSING(PROPELLER SHAFT)(CASTING #1655-9572C) для Mariner - MAGNUM II 0B242885 THRU 0C100860
-
№АртикулНазвание
-
-1674-814247T3 GEAR HOUSING ASSEMBLY (LONG) (BLACK)GEAR HOUSING ASSEMBLY (LONG) (BLACK)
-
-1674-814247T3 GEAR HOUSING ASSEMBLY (LONG) (GRAY)GEAR HOUSING ASSEMBLY (LONG) (GRAY)
-
11674-814247T8 GEAR HOUSING ASSEMBLY (BLACK)GEAR HOUSING ASSEMBLY (BLACK)
-
11674-814247T9 GEAR HOUSING ASSEMBLY (GRAY)GEAR HOUSING ASSEMBLY (GRAY)
-
44760394 CAM, Shift ControlCAM, Shift Control
-
45850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
4624-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
4715-8M0063266 SHIM SETSHIM SET
-
4831-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
4943-16279A2 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5031-30895T BEARING, Needle, FORWARD GEARBEARING, Needle, FORWARD GEAR
-
5152-822539T RATCHETRATCHET
-
5217-8M0100263 PIN, Cross, CLUTCHPIN, Cross, CLUTCH
-
5324-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
5444-12238T PROPELLER SHAFTPROPELLER SHAFT
-
55N.S.S. Not Sold Separate, Reverse Gear (PART OF 43-16279A2)Not Sold Separate, Reverse Gear (PART OF 43-16279A2)
-
5612-76358 THRUST WASHER, BEARING CARRIERTHRUST WASHER, BEARING CARRIER
-
5725-29976 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
5841529T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5922-98727 FITTING, GreaseFITTING, Grease
-
6031-30956T BEARING, Needle, BEARING CARRIERBEARING, Needle, BEARING CARRIER
-
6126-76868 SEALSEAL
-
6228-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6314-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
6452699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
658M0039169 FILLER BLOCKFILLER BLOCK
-
6610-30206 SCREW, (.375-16 x 1.00) Stainless SteelSCREW, (.375-16 x 1.00) Stainless Steel
-
6712-31211Q03 WASHER, SplinedWASHER, Splined
-
6814-816629Q TAB WASHERTAB WASHER
-
6911-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
7097-31640Q4 TRIM TABTRIM TAB
-
7110-15797 SCREW, ANODIC PLATESCREW, ANODIC PLATE
-
7212-45176 WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDSWASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
-
7311-34933 NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDSNUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
-
7413191Q01 THRUST WASHERTHRUST WASHER
-
7513-423511 LOCKWASHER, ToothedLOCKWASHER, Toothed
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
