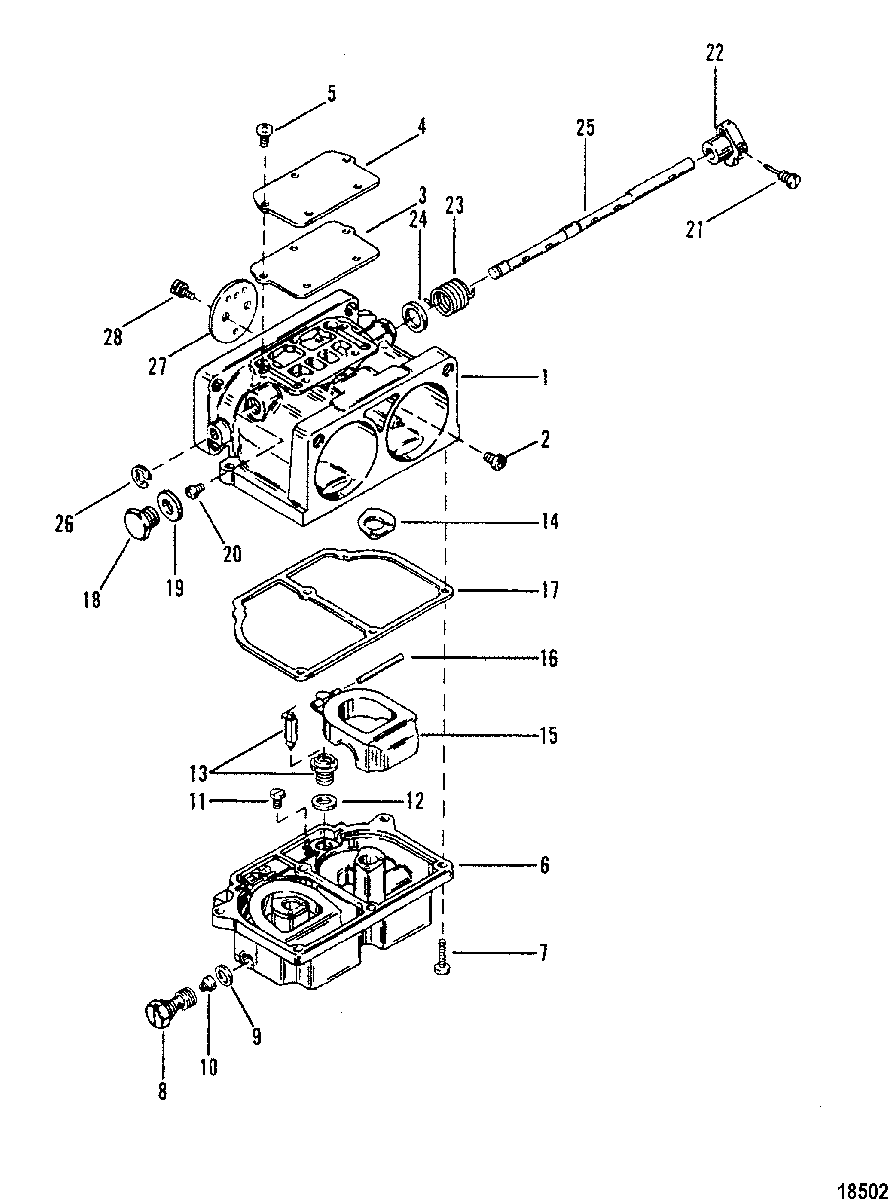

CARBURETOR ASSEMBLY для Mariner - MAGNUM II 0B242885 THRU 0C100860
-
№АртикулНазвание
-
13307-9671A1 CARBURETOR (TOP)CARBURETOR (TOP)
-
13307-9671A2 CARBURETOR (CENTER)CARBURETOR (CENTER)
-
13307-9671A3 CARBURETOR (BOTTOM)CARBURETOR (BOTTOM)
-
21399-3796 JET, (.076), BOWL VENTJET, (.076), BOWL VENT
-
3NSS NOT SOLD SEPARATE, Gasket-Cover PlateNOT SOLD SEPARATE, Gasket-Cover Plate
-
41395-6032 PLATE, COVERPLATE, COVER
-
5NSS NOT SOLD SEPARATE, Screw-Cover PlateNOT SOLD SEPARATE, Screw-Cover Plate
-
61395-7823 BOWL, Fuel (TOP)BOWL, Fuel (TOP)
-
61395-7822 BOWL, Fuel (CENTER/BOTTOM)BOWL, Fuel (CENTER/BOTTOM)
-
7NSS NOT SOLD SEPARATE, Screw-Fuel BowlNOT SOLD SEPARATE, Screw-Fuel Bowl
-
81395-6025 PLUG, MAIN JETPLUG, MAIN JET
-
9NSS NOT SOLD SEPARATE, Gasket-Main Jet RetainerNOT SOLD SEPARATE, Gasket-Main Jet Retainer
-
101399-3794 JET, (.074), MAIN FUELJET, (.074), MAIN FUEL
-
11NSS NOT SOLD SEPARATE, Screw-Float PinNOT SOLD SEPARATE, Screw-Float Pin
-
12NSS NOT SOLD SEPARATE, Gasket-Inlet Needle and SeatNOT SOLD SEPARATE, Gasket-Inlet Needle and Seat
-
131395-7824 NEEDLE/SEAT ASSEMBLY, InletNEEDLE/SEAT ASSEMBLY, Inlet
-
14NSS NOT SOLD SEPARATE, Gasket-Nozzle BossNOT SOLD SEPARATE, Gasket-Nozzle Boss
-
151395-9267 FLOATFLOAT
-
16NSS NOT SOLD SEPARATE, Pin-Float LeverNOT SOLD SEPARATE, Pin-Float Lever
-
17NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
181395-4541 SCREW, IDLE AIR BLEED JETSCREW, IDLE AIR BLEED JET
-
19NSS NOT SOLD SEPARATE, Gasket-Bleed Jet PlugNOT SOLD SEPARATE, Gasket-Bleed Jet Plug
-
201395-6359 JET, (.052), IDLE AIR BLEEDJET, (.052), IDLE AIR BLEED
-
211395-6027 SCREW, THROTTLE LEVERSCREW, THROTTLE LEVER
-
2267752 LEVER, THROTTLELEVER, THROTTLE
-
23NSS NOT SOLD SEPARATE, Spring-Throttle ReturnNOT SOLD SEPARATE, Spring-Throttle Return
-
241395-6031 SPACER, THROTTLE LEVERSPACER, THROTTLE LEVER
-
251395-6022 SHAFT, THROTTLESHAFT, THROTTLE
-
26NSS NOT SOLD SEPARATE, Ring-Retainer-Throttle ShaftNOT SOLD SEPARATE, Ring-Retainer-Throttle Shaft
-
271395-6023 VALVE, ThrottleVALVE, Throttle
-
28NSS NOT SOLD SEPARATE, Screw-Throttle ValveNOT SOLD SEPARATE, Screw-Throttle Valve
-
-1395-6452 GASKET KITGASKET KIT
-
--1395-8506 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
