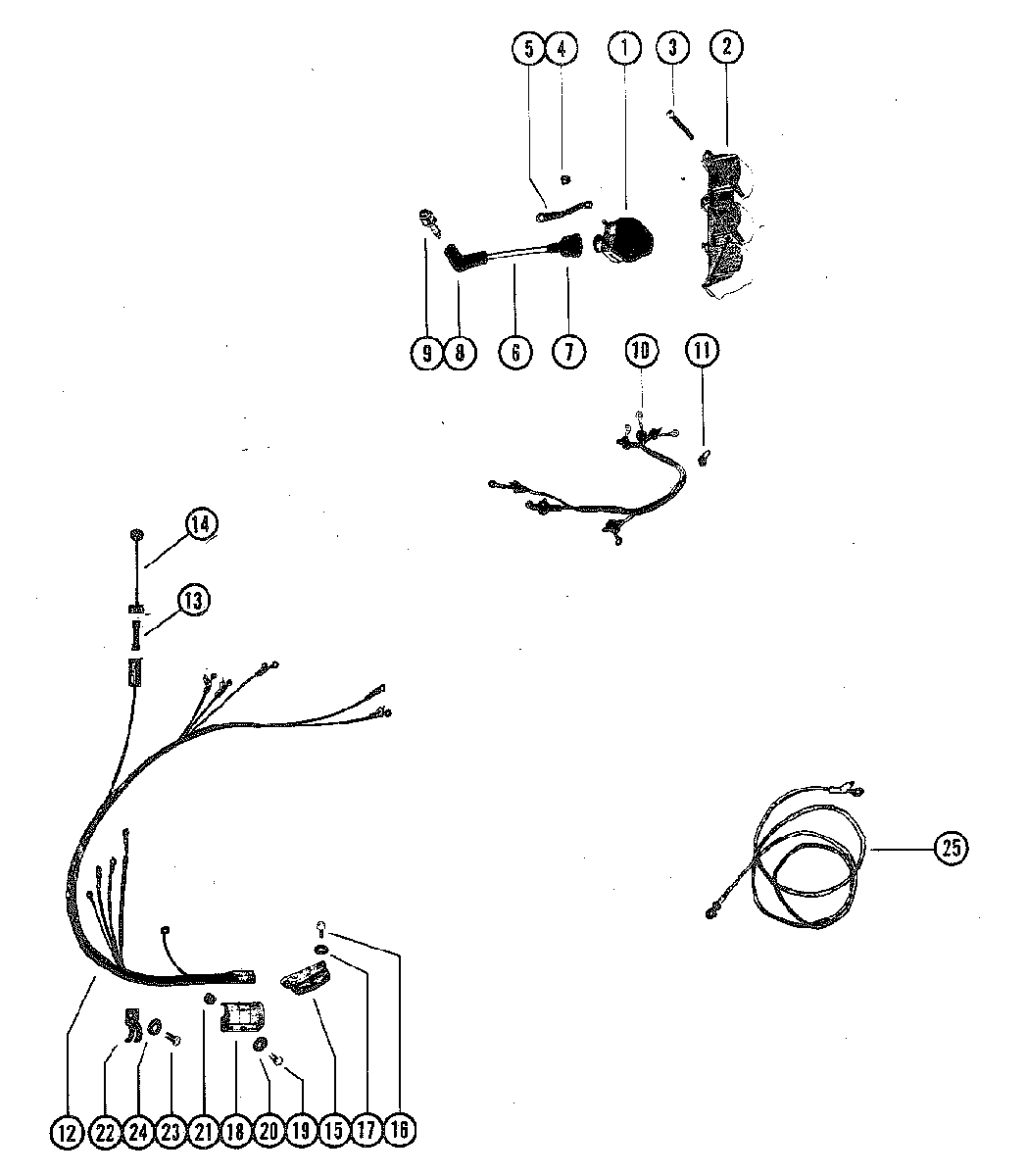

WIRING HARNESS AND IGNITION COIL для Mariner - 90 (6 CYL.) 7190903 THRU 7208847
-
№АртикулНазвание
-
1339-832757A4 IGNITION COILIGNITION COIL
-
243542 COVER, IGNITION COILCOVER, IGNITION COIL
-
310-88856 SCREW, IGNITION COIL COVER (2")SCREW, IGNITION COIL COVER (2")
-
411-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
584-60466A1 CABLE ASSEMBLY, IGNITION COIL (BLACK)CABLE ASSEMBLY, IGNITION COIL (BLACK)
-
684-813715A1 CABLE, HIGH TENSIONCABLE, HIGH TENSION
-
7332-2854T01 BOOT, COIL ENDBOOT, COIL END
-
885-63709A1 PROTECTOR, SPARK PLUG ENDPROTECTOR, SPARK PLUG END
-
933-97180Q SPARK PLUG (CHAMPION #L76-V)SPARK PLUG (CHAMPION #L76-V)
-
1084-85537A2 HARNESS, COIL TO SWITCH BOX (#2,4 AND 6)HARNESS, COIL TO SWITCH BOX (#2,4 AND 6)
-
1084-85537A1 HARNESS, COIL TO SWITCH BOX (#1,3 AND 5)HARNESS, COIL TO SWITCH BOX (#1,3 AND 5)
-
1154-63153 CLIP, HARNESS TO COIL COVERCLIP, HARNESS TO COIL COVER
-
1284-96188A4 WIRING HARNESS
UNITED STATES 6038185 AND BELOWWIRING HARNESS
UNITED STATES 6038185 AND BELOW -
1284-96188A4 WIRING HARNESS
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPWIRING HARNESS
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
1388-79091 FUSE
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPFUSE
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
1484-95084A2 WIRE, FUSE HOLDER
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPWIRE, FUSE HOLDER
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
1554-88608 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1610-28636 SCREW, WIRING HARNESS CLAMPSCREW, WIRING HARNESS CLAMP
-
1713-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
1889047 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
1910-24637 SCREW, WIRING HARNESS BRACKETSCREW, WIRING HARNESS BRACKET
-
2012-38833 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
2111-20110 NUT, BRACKET SCREWNUT, BRACKET SCREW
-
2288751 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2310-28636 SCREW, WIRING HARNESS CLAMPSCREW, WIRING HARNESS CLAMP
-
2412-20533 WASHER, CLAMP SCREWWASHER, CLAMP SCREW
-
2584-88439A3 BATTERY CABLE (POSITIVE)BATTERY CABLE (POSITIVE)
-
2584-88439A4 BATTERY CABLE (NEGATIVE)BATTERY CABLE (NEGATIVE)
