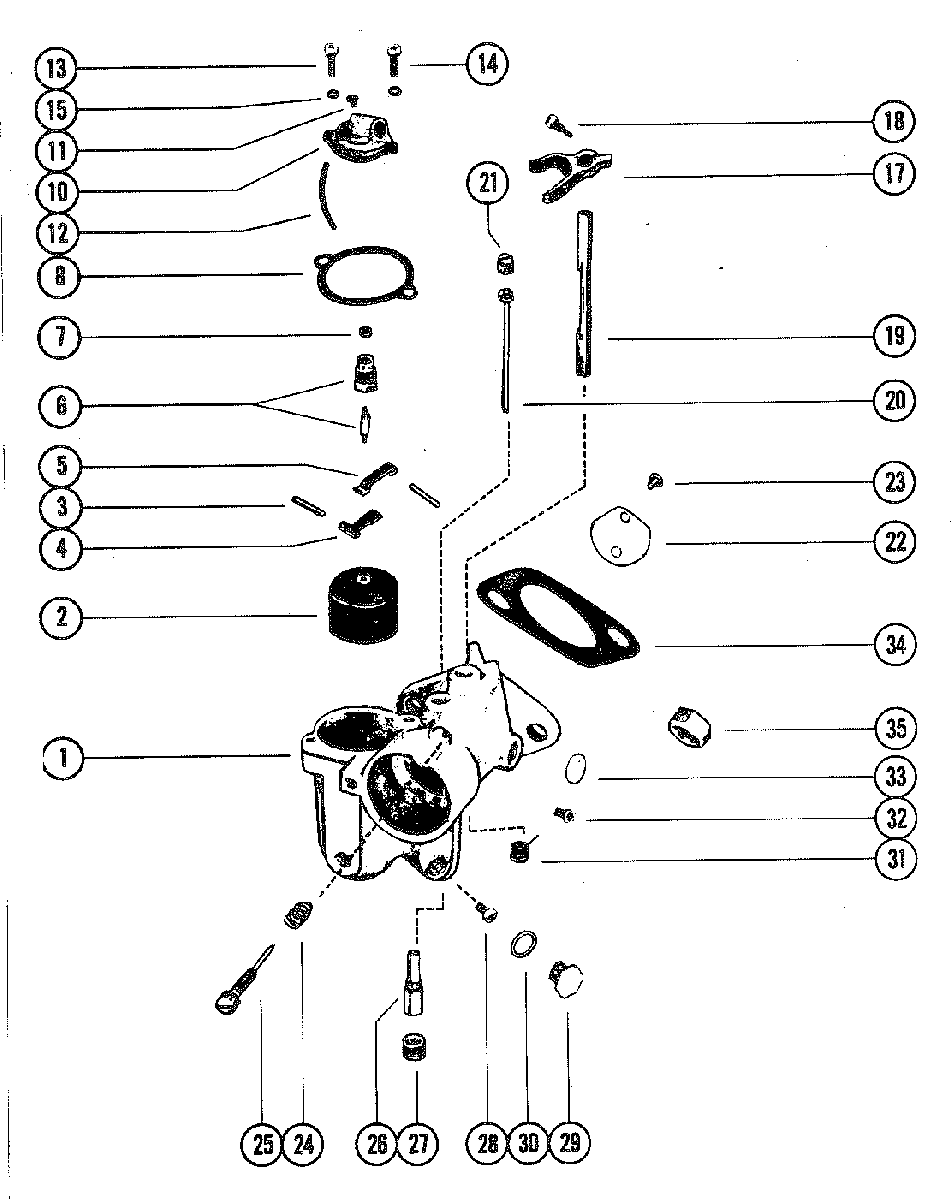

CARBURETOR ASSEMBLY для Mariner - 90 (6 CYL.) 7190903 THRU 7208847

№

Артикул

Название
1

1368-7469A6 CARBURETOR (TOP)-STAMPED WMK-30

CARBURETOR (TOP)-STAMPED WMK-30

0 ₽
1

1368-7469A8 CARBURETOR (CENTER/BOTTOM) STAMPED WMK-30

CARBURETOR (CENTER/BOTTOM) STAMPED WMK-30

0 ₽
1

1368-7469A14 CARBURETOR (TOP)-STAMPED WMK-35

CARBURETOR (TOP)-STAMPED WMK-35

0 ₽
1

1368-7469A16 CARBURETOR (CENTER/BOTTOM) -STAMPED WMK-35

CARBURETOR (CENTER/BOTTOM) -STAMPED WMK-35

0 ₽
1

1368-7469A14 CARBURETOR (TOP)-STAMPED WMK-39

CARBURETOR (TOP)-STAMPED WMK-39

0 ₽
1

1368-7469A16 CARBURETOR (CENTER/BOTTOM) -STAMPED WMK-39

CARBURETOR (CENTER/BOTTOM) -STAMPED WMK-39

0 ₽
2

1395-8673 FLOAT ASSEMBLY-STAMPED WMK-30

FLOAT ASSEMBLY-STAMPED WMK-30

1 490 ₽
2

1395-8673 FLOAT ASSEMBLY-STAMPED WMK-35

FLOAT ASSEMBLY-STAMPED WMK-35

1 490 ₽
2

1395-8673 FLOAT ASSEMBLY-STAMPED WMK-39

FLOAT ASSEMBLY-STAMPED WMK-39

1 490 ₽
3

90-8M0143356 PIN, FLOAT LEVER PINION

PIN, FLOAT LEVER PINION

0 ₽
4

90-8M0143356 LEVER, FLOAT (LOWER)

LEVER, FLOAT (LOWER)

0 ₽
5

90-8M0143356 LEVER, FLOAT (UPPER)

LEVER, FLOAT (UPPER)

0 ₽
6

1395-83181 INLET NEEDLE, SEAT/GASKET-STAMPED WMK-30

INLET NEEDLE, SEAT/GASKET-STAMPED WMK-30

1 130 ₽
6

1395-83181 INLET NEEDLE, SEAT/GASKET-STPD WMK-35/WMK-39

INLET NEEDLE, SEAT/GASKET-STPD WMK-35/WMK-39

1 130 ₽
7

90-8M0143356 GASKET, INLET SEAT

GASKET, INLET SEAT

0 ₽
8

90-8M0143356 GASKET, FLOAT BOWL COVER

GASKET, FLOAT BOWL COVER

0 ₽
10

1395-5680 COVER, FLOAT BOWL

COVER, FLOAT BOWL

0 ₽
11

1395-5733 JET, BOWL VENT (.092)

JET, BOWL VENT (.092)

610 ₽
12

32-892024122 HOSE, ECONOMIZER

HOSE, ECONOMIZER

4 230 ₽
13

10-52195 SCREW, FLOAT BOWL COVER

SCREW, FLOAT BOWL COVER

0 ₽
14

1395-4804 SCREW, FLOAT BOWL COVER

SCREW, FLOAT BOWL COVER

0 ₽
15

13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW

LOCKWASHER, FLOAT BOWL COVER SCREW

60 ₽
17

8146791 LEVER, THROTTLE (SEE NOTE BELOW)

LEVER, THROTTLE (SEE NOTE BELOW)

0 ₽
18

1395-6027 SCREW, THROTTLE STOP LEVER

SCREW, THROTTLE STOP LEVER

250 ₽
19

1395-7614 SHAFT, THROTTLE (TOP)

SHAFT, THROTTLE (TOP)

0 ₽
19

1395-7942 SHAFT, THROTTLE (CENTER/BOTTOM)

SHAFT, THROTTLE (CENTER/BOTTOM)

0 ₽
20

90-8M0143356 TUBE, IDLE

TUBE, IDLE

0 ₽
21

1395-4540 SCREW, BODY (IDLE TUBE)

SCREW, BODY (IDLE TUBE)

650 ₽
22

1395-7874 SHUTTER, THROTTLE

SHUTTER, THROTTLE

0 ₽
23

90-8M0143356 SCREW, THROTTLE SHUTTER

SCREW, THROTTLE SHUTTER

0 ₽
24

90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW

SPRING, IDLE ADJUSTMENT SCREW

0 ₽
25

90-8M0143356 SCREW, IDLE ADJUSTMENT

SCREW, IDLE ADJUSTMENT

0 ₽
26

90-8M0143356 NOZZLE, MAIN

NOZZLE, MAIN

0 ₽
27

1395-4542 SCREW, PLUG-MAIN NOZZLE

SCREW, PLUG-MAIN NOZZLE

0 ₽
28

1399-3794 JET, MAIN FUEL (.074)

JET, MAIN FUEL (.074)

600 ₽
28

1395-6207 JET, MAIN FUEL (.072)

JET, MAIN FUEL (.072)

710 ₽
28

1395-6030 JET, MAIN FUEL (.070)

JET, MAIN FUEL (.070)

590 ₽
28

1395-6029 JET, MAIN FUEL (.068)-STANDARD

JET, MAIN FUEL (.068)-STANDARD

590 ₽
29

1395-4541 SCREW, PLUG-MAIN FUEL JET CHANNEL

SCREW, PLUG-MAIN FUEL JET CHANNEL

1 180 ₽
30

90-8M0143356 GASKET, JET CHANNEL PLUG SCREW

GASKET, JET CHANNEL PLUG SCREW

0 ₽
31

90-8M0143356 SPRING, THOTTLE SHAFT RETURN

SPRING, THOTTLE SHAFT RETURN

0 ₽
32

1395-4543 SCREW, BODY CHANNEL

SCREW, BODY CHANNEL

0 ₽
33

90-8M0143356 WELCH PLUG, BODY CHANNEL

WELCH PLUG, BODY CHANNEL

0 ₽
33

1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)

GASKET AND PACKING SET (1 PER CARBURETOR)

640 ₽
33

1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)-WMK-30/WMK-35

REPAIR PARTS KIT (1 PER CARBURETOR)-WMK-30/WMK-35

6 790 ₽
33

1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)-WMK-39

REPAIR PARTS KIT (1 PER CARBURETOR)-WMK-39

6 790 ₽
34

27-481641 GASKET, CARBURETOR FLANGE

GASKET, CARBURETOR FLANGE

150 ₽
35

11-64809 NUT, CARBURETOR STUD

NUT, CARBURETOR STUD

180 ₽
