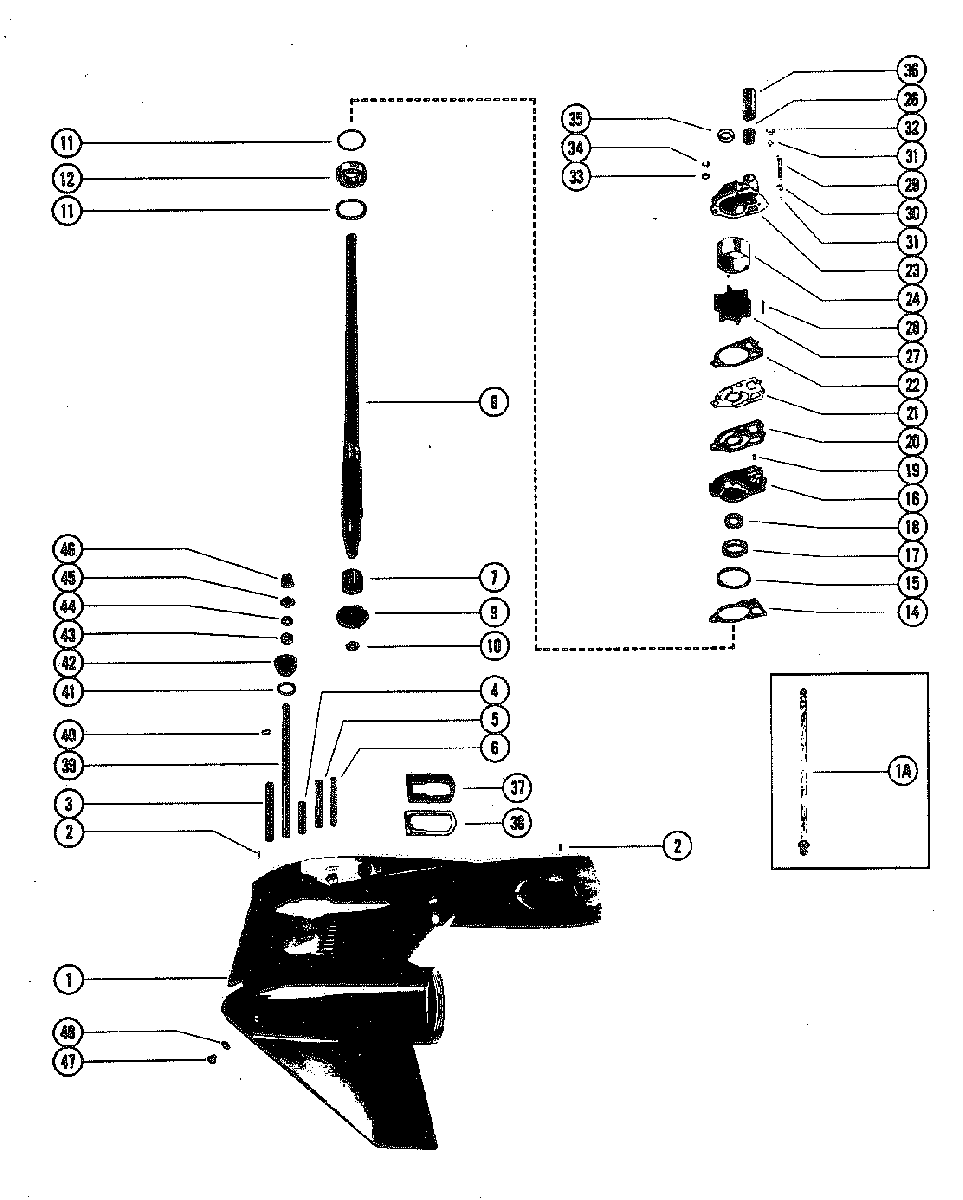

GEAR HOUSING (DRIVE SHAFT) для Mariner - 90 (6 CYL.) 7190903 THRU 7208847

№

Артикул

Название
-

1655-7333T42 GEAR HOUSING ASSEMBLY, COMPLETE

GEAR HOUSING ASSEMBLY, COMPLETE
1

1655-7333A43 GEAR HOUSING ASSEMBLY

GEAR HOUSING ASSEMBLY
1A

22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER

CONNECTOR ASSEMBLY, SPEEDOMETER
2

17-8M0084726 DOWEL PIN, GEAR HOUSING LOCATING

DOWEL PIN, GEAR HOUSING LOCATING
3

16-57921 STUD, GEAR HOUSING (4")

STUD, GEAR HOUSING (4")
4

16-8M0133358 STUD, GEAR HOUSING (2-1/16)

STUD, GEAR HOUSING (2-1/16)
5

16-8M0034463 STUD, WATER PUMP (3-3/8")

STUD, WATER PUMP (3-3/8")
6

16-69501 STUD, WATER PUMP (3-1/8")

STUD, WATER PUMP (3-1/8")
7

31-32898T ROLLER BEARING, DRIVE SHAFT

ROLLER BEARING, DRIVE SHAFT
8

45-42646 DRIVE SHAFT

DRIVE SHAFT

43-68548T3 PINION GEAR, DRIVE SHAFT

PINION GEAR, DRIVE SHAFT

Производитель

Mercury-Mercruiser

10

11-35921 NUT, PINION GEAR TO DRIVE SHAFT

NUT, PINION GEAR TO DRIVE SHAFT
11

23-70412 SPACER, BALL BEARING

SPACER, BALL BEARING
11

15-57007A1 SHIM, BALL BEARING

SHIM, BALL BEARING
12

31-69220T ROLLER BEARING, DRIVE SHAFT

ROLLER BEARING, DRIVE SHAFT
14

27-856704 GASKET, WATER PUMP

GASKET, WATER PUMP
15

25-33145 "O"RING, WATER PUMP

"O"RING, WATER PUMP
16

46-96146A5 WATER PUMP BASE ASSEMBLY

WATER PUMP BASE ASSEMBLY
17

26-94038 OIL SEAL, WATER PUMP

OIL SEAL, WATER PUMP
18

26-16977 OIL SEAL, WATER PUMP

OIL SEAL, WATER PUMP
19

17-8M0084627 DOWEL PIN, WATER PUMP

DOWEL PIN, WATER PUMP
20

27-8M0090319 GASKET, LOWER-WATER PUMP TO FACE PLATE

GASKET, LOWER-WATER PUMP TO FACE PLATE
21

324351 FACE PLATE

FACE PLATE
22

27-858524 GASKET, UPPER-FACE PLATE TO WATER PUMP

GASKET, UPPER-FACE PLATE TO WATER PUMP
23

46-96148T1 WATER PUMP BODY ASSEMBLY

WATER PUMP BODY ASSEMBLY
24

48752T INSERT, WATER PUMP

INSERT, WATER PUMP
26

26-38970 SEAL, RUBBER-WATER INLET TUBE

SEAL, RUBBER-WATER INLET TUBE
27

47-89984T4 IMPELLER, WATER PUMP

IMPELLER, WATER PUMP
28

28-8M0032834 KEY, IMPELLER DRIVE

KEY, IMPELLER DRIVE
29

10-30720 SCREW, WATER PUMP (1/4-20-HEX HEAD)

SCREW, WATER PUMP (1/4-20-HEX HEAD)
29

10-96411 SCREW, WATER PUMP (14-8-HEX WASHER HEAD)

SCREW, WATER PUMP (14-8-HEX WASHER HEAD)
30

13-26992 LOCKWASHER, WATER PUMP SCREW

LOCKWASHER, WATER PUMP SCREW
31

12-29245 WASHER, WATER PUMP SCREW AND STUD

WASHER, WATER PUMP SCREW AND STUD
32

11-35888 NUT, WATER PUMP SCREW

NUT, WATER PUMP SCREW
33

12-36001 WASHER, WATER PUMP STUD

WASHER, WATER PUMP STUD
34

11-82670911 NUT, WATER PUMP STUD

NUT, WATER PUMP STUD
35

25-30271 RING, RUBBER-DRIVE SHAFT

RING, RUBBER-DRIVE SHAFT
36

23-29804T SLEEVE, GUIDE-WATER INLET TUBE

SLEEVE, GUIDE-WATER INLET TUBE
37

37641001 SEAL, EXHAUST

SEAL, EXHAUST
38

38051 PLATE, SUPPORT-EXHAUST TUBE SEAL

PLATE, SUPPORT-EXHAUST TUBE SEAL
39

76062A1 SHAFT ASSEMBLY, SHIFT-LOWER

SHAFT ASSEMBLY, SHIFT-LOWER
40

53-29641 "E"RING, RETAINING-SHIFT SHAFT

"E"RING, RETAINING-SHIFT SHAFT
41

25-25439 "O"RING, SHIFT SHAFT BUSHING

"O"RING, SHIFT SHAFT BUSHING
42

23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT

BUSHING ASSEMBLY, SHIFT SHAFT
43

26-8164641 OIL SEAL, SHIFT SHAFT BUSHING

OIL SEAL, SHIFT SHAFT BUSHING
44

12-77674 WASHER, RUBBER-SHIFT SHAFT BUSHING

WASHER, RUBBER-SHIFT SHAFT BUSHING
45

78036 SPACER, LOWER
NOT USED WITH FULL POWER TRIM

SPACER, LOWER
NOT USED WITH FULL POWER TRIM
46

43308T1 CAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIM

CAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIM
47

10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE

SCREW, GREASE FILLER AND VENT HOLE
47

22-8M0058389 PLUG, DRAIN (MAGNETIC)

PLUG, DRAIN (MAGNETIC)
48

12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW

WASHER, GREASE FILLER AND VENT HOLE SCREW
