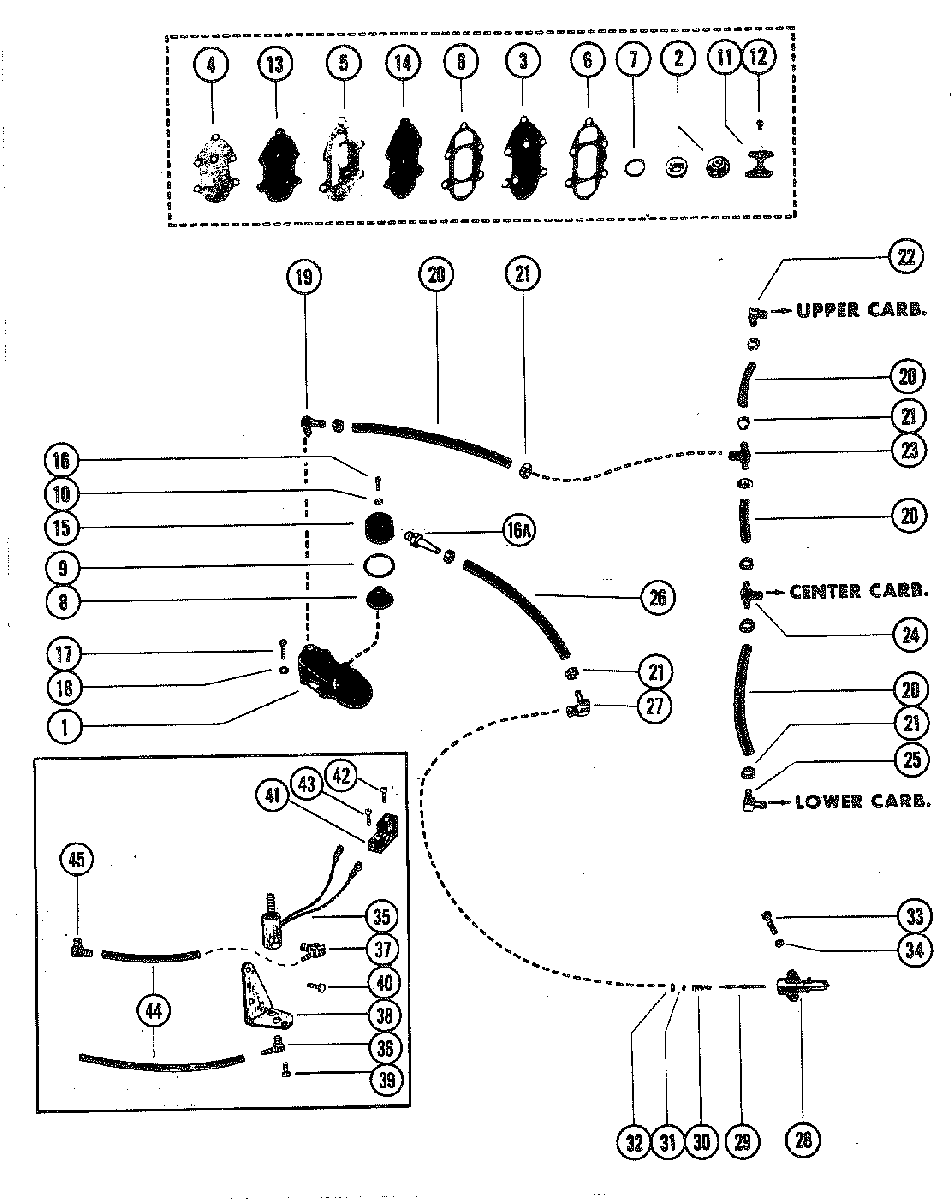

FUEL PUMP AND FUEL LINE ASSEMBLY для Mariner - 90 (6 CYL.) 7190903 THRU 7208847
-
№АртикулНазвание
-
113527A1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-8M0084277 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
389031A3 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
490-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
590-8M0143356 GASKET, PULSE CHAMBERGASKET, PULSE CHAMBER
-
690-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
790-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
835-59072 SCREEN, FUEL INLETSCREEN, FUEL INLET
-
925-35480 "O"RING, FUEL INLET COVER"O"RING, FUEL INLET COVER
-
1025-38933 GASKET, COVER SCREWGASKET, COVER SCREW
-
1123004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
1210-43725 SCREW, RETAINERSCREW, RETAINER
-
1386295 BASE, FUEL PUMPBASE, FUEL PUMP
-
14879901 PULSE CHAMBER, FUEL PUMPPULSE CHAMBER, FUEL PUMP
-
1535-91078A1 COVER, FUEL INLETCOVER, FUEL INLET
-
1610-89766 SCREW, FUEL FILTER COVER (5/8")SCREW, FUEL FILTER COVER (5/8")
-
16A22-64705 FITTING, INLET COVERFITTING, INLET COVER
-
1710-73013 SCREW, FUEL PUMP (1-1/2")SCREW, FUEL PUMP (1-1/2")
-
1813-26996 LOCKWASHER, FUEL PUMP SCREWLOCKWASHER, FUEL PUMP SCREW
-
1922-19688 FITTING, FUEL OUTLETFITTING, FUEL OUTLET
-
2032-8M0108355 FUEL LINE, FUEL PUMP TO CARBURETORFUEL LINE, FUEL PUMP TO CARBURETOR
-
2154-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
2222-19688 FITTING, ELBOW-UPPER CARBURETORFITTING, ELBOW-UPPER CARBURETOR
-
2322-73318 TEE, FUEL LINETEE, FUEL LINE
-
2422-64706001 FITTING, TEE-CENTER CARBURETORFITTING, TEE-CENTER CARBURETOR
-
2522-19688 FITTING, ELBOW-LOWER CARBURETORFITTING, ELBOW-LOWER CARBURETOR
-
2632-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (11")FUEL LINE, ADAPTOR TO FUEL PUMP (11")
-
2722-63981 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
2822833 ADAPTOR, CHECK UNIT (FUEL LINE)
-IDENTIFIED BY 73419 CASTING ON REF. #28ADAPTOR, CHECK UNIT (FUEL LINE)
-IDENTIFIED BY 73419 CASTING ON REF. #28 -
2923069 STEM, CHECK UNIT ADAPTOR
-IDENTIFIED BY 73419 CASTING ON REF. #28STEM, CHECK UNIT ADAPTOR
-IDENTIFIED BY 73419 CASTING ON REF. #28 -
3024-23067T SPRING, ADAPTOR STEM
-IDENTIFIED BY 73419 CASTING ON REF. #28SPRING, ADAPTOR STEM
-IDENTIFIED BY 73419 CASTING ON REF. #28 -
2830186 ADAPTOR, CHECK UNIT (FUEL LINE)
-IDENTIFIED BY 30186 CASTING ON REF. #28ADAPTOR, CHECK UNIT (FUEL LINE)
-IDENTIFIED BY 30186 CASTING ON REF. #28 -
2930185Q3 STEM, CHECK UNIT ADAPTOR
-IDENTIFIED BY 30186 CASTING ON REF. #28STEM, CHECK UNIT ADAPTOR
-IDENTIFIED BY 30186 CASTING ON REF. #28 -
3024-30189 SPRING, ADAPTOR STEM
-IDENTIFIED BY 30186 CASTING ON REF. #28SPRING, ADAPTOR STEM
-IDENTIFIED BY 30186 CASTING ON REF. #28 -
3125-16524 "O"RING, ADAPTOR STEM"O"RING, ADAPTOR STEM
-
3230188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3310-36154 SCREW, ADAPTOR TO BOTTOM COWL (1 3/8")SCREW, ADAPTOR TO BOTTOM COWL (1 3/8")
-
3411-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
3542859A2 VALVE, ENRICHER
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPVALVE, ENRICHER
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
3622-90275 CONNECTOR, ENRICHER VALVE (BOTTOM)
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPCONNECTOR, ENRICHER VALVE (BOTTOM)
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
3722-73817 CONNECTOR, ENRICHER VALVE (SIDE)
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPCONNECTOR, ENRICHER VALVE (SIDE)
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
3890345 BRACKET, ENRICHER VALVE
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPBRACKET, ENRICHER VALVE
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
3910-89075 SCREW, VALVE TO BRACKET
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPSCREW, VALVE TO BRACKET
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
4010-73286 SCREW, BRACKET TO REED BLOCK HOUSING (1/2")
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPSCREW, BRACKET TO REED BLOCK HOUSING (1/2")
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
4186-45915 TERMINAL BLOCK, REED BLOCK HOUSING
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPTERMINAL BLOCK, REED BLOCK HOUSING
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
4210-69079 SCREW, TERMINAL BLOCK
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPSCREW, TERMINAL BLOCK
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
4310-20411 SCREW, WIRE TO TERMINAL BLOCK
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPSCREW, WIRE TO TERMINAL BLOCK
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
4432-9912688 FUEL LINE, ENRICHER VALVE
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPFUEL LINE, ENRICHER VALVE
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
4522-90275 CONNECTOR, TOP CARBURETOR (90)CONNECTOR, TOP CARBURETOR (90)
