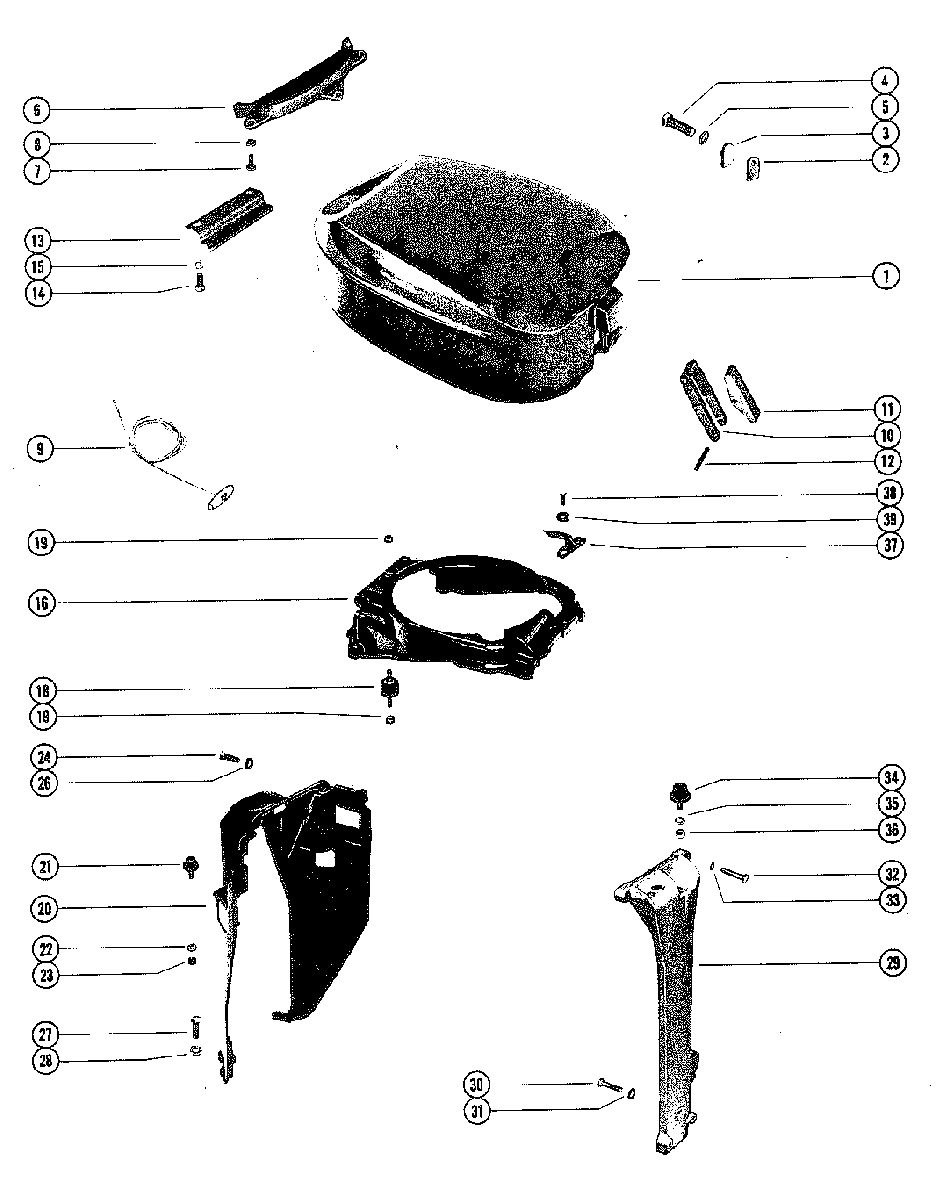

TOP COWL AND SUPPORT BRACKETS для Mariner - 90 (6 CYL.) 7190903 THRU 7208847
-
№АртикулНазвание
-
12162-6392T6 TOP COWL (WITHOUT DECALS)TOP COWL (WITHOUT DECALS)
-
276440 RETAINER, TOP COWLRETAINER, TOP COWL
-
376505 PAC, BUMPER-TOP COWL RETAINERPAC, BUMPER-TOP COWL RETAINER
-
410-25299 SCREW, RETAINER TO TOP COWLSCREW, RETAINER TO TOP COWL
-
513-39107 LOCKWASHER, RETAINER SCREWLOCKWASHER, RETAINER SCREW
-
676433 SHIELD, TOP COWL-REARSHIELD, TOP COWL-REAR
-
710-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
947341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
1052739 HINGE, COWL LATCH-TOP COWLHINGE, COWL LATCH-TOP COWL
-
1194918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1217-58998 ROLL PIN, COWL LATCH LEVER TO HINGEROLL PIN, COWL LATCH LEVER TO HINGE
-
1355455 HOOK, TOP COWL LATCH-REARHOOK, TOP COWL LATCH-REAR
-
1410-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
1513-26992 LOCKWASHER, REAR HOOK SCREWLOCKWASHER, REAR HOOK SCREW
-
1679897A4 FRAME, TOP COWL SUPPORTFRAME, TOP COWL SUPPORT
-
1890435 MOUNT, RUBBER-TOP COWL FRAMEMOUNT, RUBBER-TOP COWL FRAME
-
1846096 MOUNT, RUBBER-TOP COWL FRAME (HEAVY DUTY)MOUNT, RUBBER-TOP COWL FRAME (HEAVY DUTY)
-
1911-35888 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
2086472 BRACKET, TOP COWL SUPPORT-REARBRACKET, TOP COWL SUPPORT-REAR
-
2131014 MOUNT, RUBBER-REAR SUPPORT BRACKETMOUNT, RUBBER-REAR SUPPORT BRACKET
-
2213-26992 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
2311-29598 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
2410-37562 SCREW, REAR BRACKET TO FRAME (1")SCREW, REAR BRACKET TO FRAME (1")
-
2613-26993 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
2710-37562 SCREW, REAR BRACKET TO BOTTOM COWL (1")SCREW, REAR BRACKET TO BOTTOM COWL (1")
-
2813-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
2942706A1 BRACKET ASSEMBLY, TOP COWL-FRONTBRACKET ASSEMBLY, TOP COWL-FRONT
-
3010-60411 SCREW, FRONT BRACKET TO BOTTOM COWL (1-1/4")SCREW, FRONT BRACKET TO BOTTOM COWL (1-1/4")
-
3113-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
3210-60411 SCREW, FRONT BRACKET TO TOP COWL FRAME (1-1/2")SCREW, FRONT BRACKET TO TOP COWL FRAME (1-1/2")
-
3313-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
3437640 MOUNT, RUBBER-FRONT SUPPORT BRACKETMOUNT, RUBBER-FRONT SUPPORT BRACKET
-
3513-26993 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
3611-28770 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
3787991 POINTER, TIMINGPOINTER, TIMING
-
3810-28636 SCREW, TIMING POINTER (3/4")SCREW, TIMING POINTER (3/4")
-
3912-35462 WASHER, TIMING POINTER SCREWWASHER, TIMING POINTER SCREW
