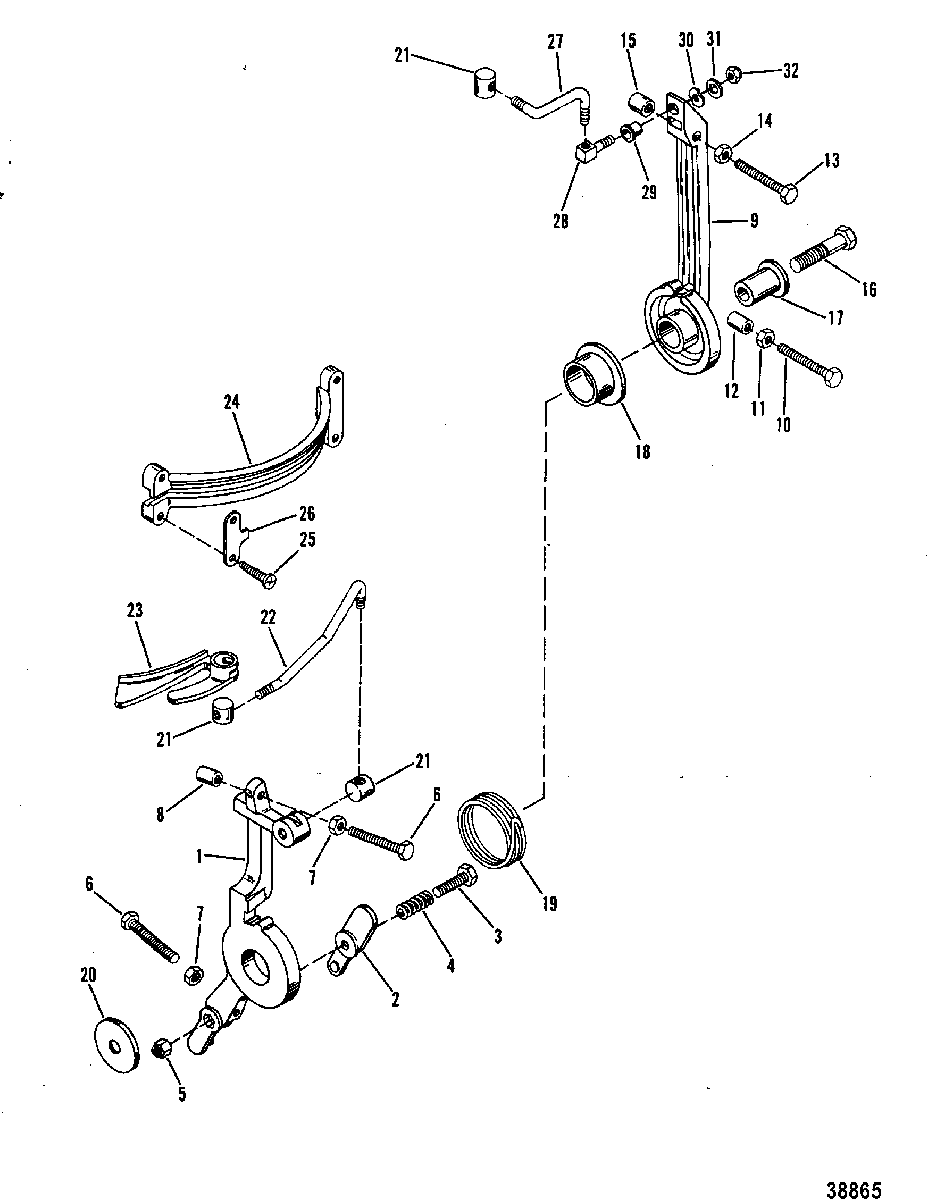

THROTTLE LEVER AND SPARK ADVANCE LEVER для Mariner - 75 (4 CYL.) 7208573 & Up
-
№АртикулНазвание
-
173416 LEVER, ThrottleLEVER, Throttle
-
273404 LATCH, THROTTLE LEVERLATCH, THROTTLE LEVER
-
310-59702 SCREW, (.250-28 x .875) Stainless SteelSCREW, (.250-28 x .875) Stainless Steel
-
424-20099 SPRING, LATCH SCREWSPRING, LATCH SCREW
-
511-36069 NUT, LATCH SCREWNUT, LATCH SCREW
-
610-69029 SCREW, ADJUSTING-THROTTLE LEVER (1-3/4")SCREW, ADJUSTING-THROTTLE LEVER (1-3/4")
-
711-29598 NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREWNUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
-
852023 CAP, NYLONG-ADJUSTING SCREWCAP, NYLONG-ADJUSTING SCREW
-
973414 ARM, SPARK ADVANCEARM, SPARK ADVANCE
-
1010-73656 SCREW, ADJUSTING-SPARK ADVANCE ARM (1-3/8")SCREW, ADJUSTING-SPARK ADVANCE ARM (1-3/8")
-
1111-68219 NUT, (#10-32) Stainless Steel, JAM-ADJUSTING SCREWNUT, (#10-32) Stainless Steel, JAM-ADJUSTING SCREW
-
1248039 CAP, NYLON-ADJUSTING SCREWCAP, NYLON-ADJUSTING SCREW
-
1310-67916 SCREW, ADJUSTING-APRK ADVANCE ARM (2")SCREW, ADJUSTING-APRK ADVANCE ARM (2")
-
1411-29598 NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREWNUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
-
1552023 CAP, NYLON-ADJUSTING SCREWCAP, NYLON-ADJUSTING SCREW
-
1610-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1723-55164 BUSHING, LEVER AND ARM SCREWBUSHING, LEVER AND ARM SCREW
-
1823-55171 BUSHING, FLANGE-LEVER AND ARM SCREWBUSHING, FLANGE-LEVER AND ARM SCREW
-
1924-73375 SPRING, RETURN-LEVER AND ARM SCREWSPRING, RETURN-LEVER AND ARM SCREW
-
2012-46765 WASHER, (.390 x 1.50 x .120), LEVER AND ARM SCREWWASHER, (.390 x 1.50 x .120), LEVER AND ARM SCREW
-
2160572 BARREL, NYLON-LEVER AND ARMBARREL, NYLON-LEVER AND ARM
-
2273374 LINK ROD, THROTTLELINK ROD, THROTTLE
-
2373432 CAM, ThrottleCAM, Throttle
-
2477001 HOUSING, THROTTLE CAMHOUSING, THROTTLE CAM
-
2510-69013 SCREW, (#10-16 x .880), HOUSING TO CRANKCASESCREW, (#10-16 x .880), HOUSING TO CRANKCASE
-
2677158 SPACER, THROTTLE CAM HOUSINGSPACER, THROTTLE CAM HOUSING
-
2777010 LINK ROD, SPARK ADVANCELINK ROD, SPARK ADVANCE
-
2876158A1 SWIVEL ASSEMBLY, LINK ROD TO ARMSWIVEL ASSEMBLY, LINK ROD TO ARM
-
2923-26856 BUSHING, NYLON-LINK ROD SWIVELBUSHING, NYLON-LINK ROD SWIVEL
-
3013-29402 WAVE WASHER, LINK ROD SWIVELWAVE WASHER, LINK ROD SWIVEL
-
3112-73288 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
3211-20110 NUT, (#10-32), LINK ROD SWIVELNUT, (#10-32), LINK ROD SWIVEL
