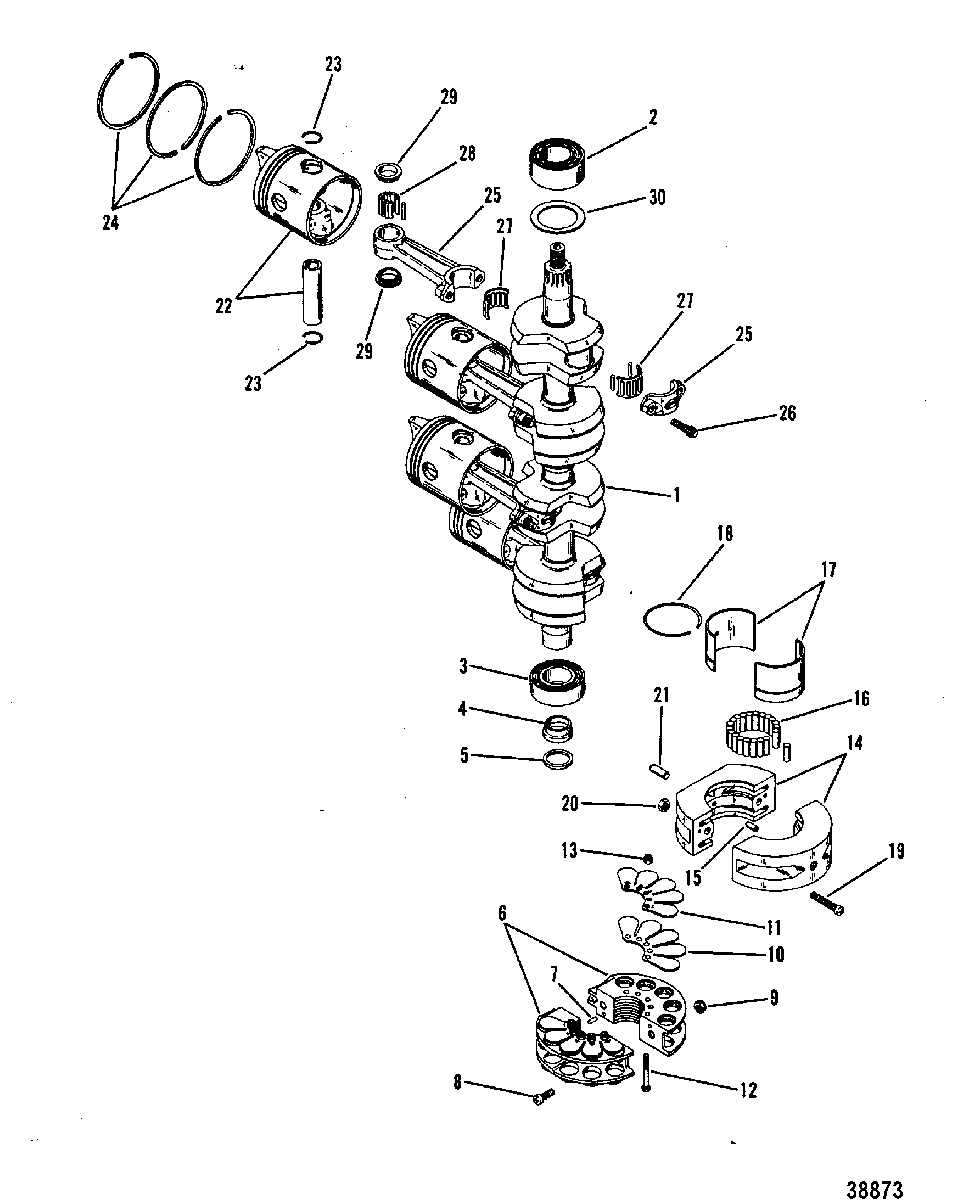

CRANKSHAFT, PISTON AND CONNECTING ROD для Mariner - 75 (4 CYL.) 7208573 & Up

  • №
    Артикул
    Название
  • 1
    440-9074A2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-62567T BEARING, Ball, UPPER
    BEARING, Ball, UPPER
  • 3
    30-63742T BEARING, Ball, LOWER
    BEARING, Ball, LOWER
  • 4
    54196A6 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 5
    65800 PACKING, CARRIER
    PACKING, CARRIER
  • 6
    540-5266T5 BEARING ASSEMBLY, Main (VALVE TYPE)
    BEARING ASSEMBLY, Main (VALVE TYPE)
  • 7
    17-20032 PIN, Dowel, MAIN BEARING
    PIN, Dowel, MAIN BEARING
  • 8
    10-45775 SCREW, (#12-28 x .560) , MAIN BEARING
    SCREW, (#12-28 x .560) , MAIN BEARING
  • 9
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 10
    34-56007A1 REED SET, MATCHED-MAIN BEARING
    REED SET, MATCHED-MAIN BEARING
  • 11
    34-56008 STOP, Reed, MAIN BEARING REED VALVES
    STOP, Reed, MAIN BEARING REED VALVES
  • 12
    10-62204 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 13
    11-53153 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 14
    535-5397A4 BEARING ASSEMBLY, Center Main
    BEARING ASSEMBLY, Center Main
  • 15
    17-20032 PIN, Dowel, CENTER MAIN BEARING
    PIN, Dowel, CENTER MAIN BEARING
  • 16
    29-714221 BEARING, Needle
    BEARING, Needle
  • 17
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 18
    53-26933 RING, Snap, OUTER RACE CLAMPING
    RING, Snap, OUTER RACE CLAMPING
  • 19
    10-22968 SCREW, (.250-28 x 1.25), CENTER MAIN BEARING CLAMPING
    SCREW, (.250-28 x 1.25), CENTER MAIN BEARING CLAMPING
  • 20
    11-20184 NUT, (1/4-28X7/32), MAIN BEARING CLAMPING SCREW
    NUT, (1/4-28X7/32), MAIN BEARING CLAMPING SCREW
  • 21
    17-47246 PIN, Dowel, STEPPED
    PIN, Dowel, STEPPED
  • 22
    774-9137A12 PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 22
    774-9137A13 PISTON ASSEMBLY
    (.015 O.S.)
    PISTON ASSEMBLY
    (.015 O.S.)
  • 22
    774-9137A14 PISTON ASSEMBLY
    (.030 O.S.)
    PISTON ASSEMBLY
    (.030 O.S.)
  • 23
    53-857196 RING, Lock
    RING, Lock
  • 24
    39-78816A12 RING
    (STANDARD)
    RING
    (STANDARD)
  • 24
    39-78811A12 RING SET, Piston - .015 Oversize
    RING SET, Piston - .015 Oversize
  • 24
    39-88392A12 RING SET, Piston - .030 Oversize
    RING SET, Piston - .030 Oversize
  • 25
    624-8101A3 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 26
    10-91012 SCREW, (.250-28 Special), CONNECTING ROD
    SCREW, (.250-28 Special), CONNECTING ROD
  • 27
    31-62596A1 BEARING ASSEMBLY, CRANKPIN
    BEARING ASSEMBLY, CRANKPIN
  • 28
    29-47270 BEARING, PISTON PIN
    BEARING, PISTON PIN
  • 29
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • 30
    15-38095A1 SHIM, UPPER BALL BEARING
    SHIM, UPPER BALL BEARING
  • -
    27-73645A87 GASKET SET
    GASKET SET
