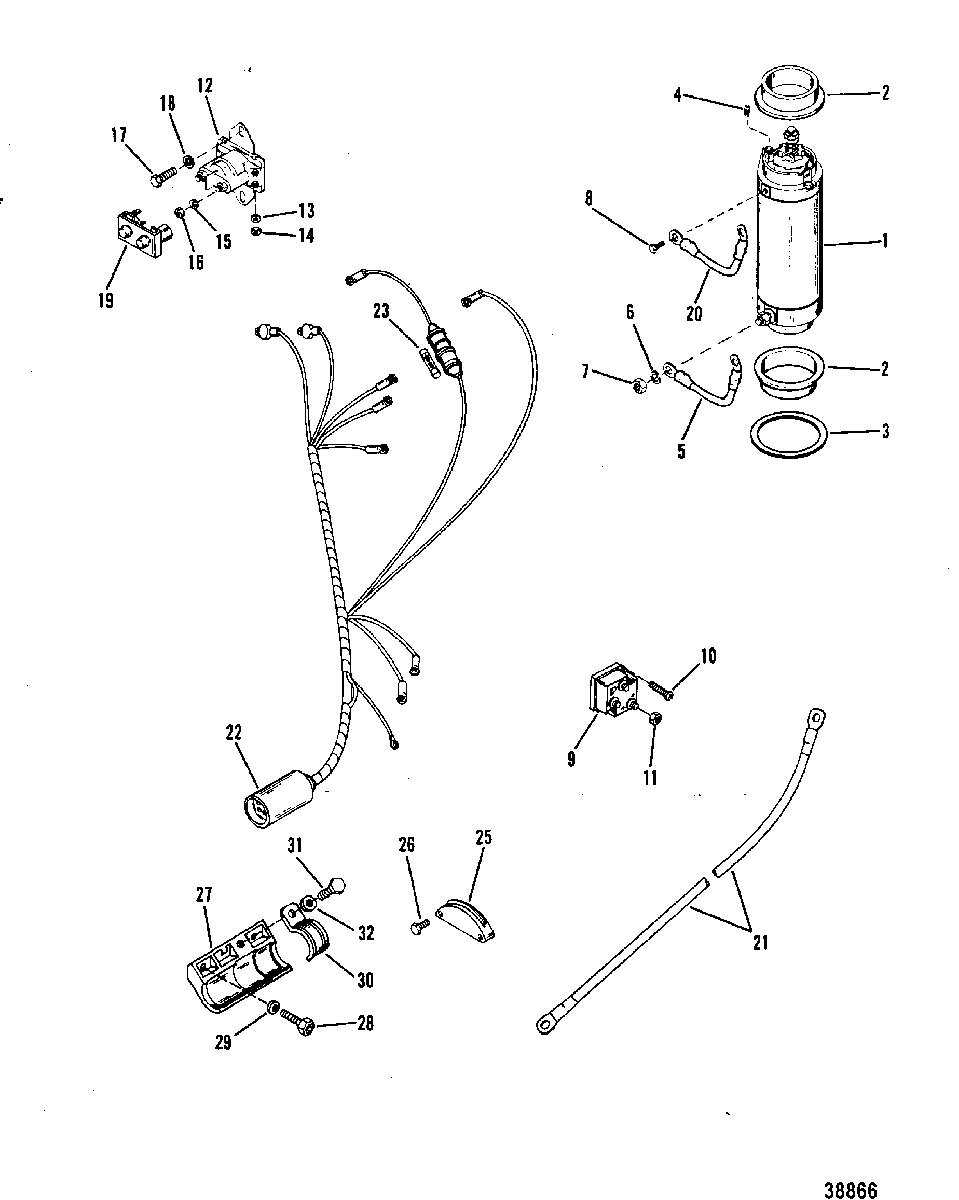

STARTER MOTOR AND WIRING HARNESS для Mariner - 75 (4 CYL.) 7208573 & Up

  • №
    Артикул
    Название
  • 1
    50-893891T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    23-8M0034918 COLLAR, RUBBER-STARTER MOTOR
    COLLAR, RUBBER-STARTER MOTOR
  • 3
    23-56774 SPACER, COLLAR TO BRACKET
    SPACER, COLLAR TO BRACKET
  • 4
    8M0043376 STOP, RUBBER-STARTER MOTOR
    STOP, RUBBER-STARTER MOTOR
  • 5
    84-93389A8 WIRE, MOTOR TO SOLENOID (YELLOW)
    WIRE, MOTOR TO SOLENOID (YELLOW)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
    LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
  • 7
    11-64015 NUT, (.250-20), STARTER MOTOR TERMINAL
    NUT, (.250-20), STARTER MOTOR TERMINAL
  • 8
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 9
    8M0058226 RECTIFIER
    RECTIFIER
  • 10
    10-37656 SCREW, (#10-32 x .620), RECTIFIER TO PLATE
    SCREW, (#10-32 x .620), RECTIFIER TO PLATE
  • 11
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINAL
    NUT, (#10-32) Brass, RECTIFIER TERMINAL
  • 12
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 13
    13-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
  • 14
    11-26419 NUT, (#8-32) Brass, SOLENOID TERMINAL
    NUT, (#8-32) Brass, SOLENOID TERMINAL
  • 15
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
  • 16
    11-94330 NUT, (.250-20) Brass, SOLENOID TERMINAL
    NUT, (.250-20) Brass, SOLENOID TERMINAL
  • 17
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
  • 19
    85-97861 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
  • 20
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, GROUND
    CABLE ASSEMBLY, (6.00 Inches) Black, GROUND
  • 21
    84-88439A3 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 21
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 22
    84-96233A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 23
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 25
    54-88608 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 26
    10-28636 SCREW, (.250-20 x .750), WIRING HARNESS CLAMP
    SCREW, (.250-20 x .750), WIRING HARNESS CLAMP
  • 27
    89047 BRACKET, WIRING HARNESS
    BRACKET, WIRING HARNESS
  • 28
    10-32228 SCREW, (#10-32 x .625), WIRING HARNESS BRACKET
    SCREW, (#10-32 x .625), WIRING HARNESS BRACKET
  • 29
    12-38833 WASHER, BRACKET SCREW
    WASHER, BRACKET SCREW
  • 30
    88751 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 31
    10-28636 SCREW, (.250-20 x .750), WIRING HARNESS CLAMP
    SCREW, (.250-20 x .750), WIRING HARNESS CLAMP
  • 32
    12-20533 WASHER, CLAMP SCREW
    WASHER, CLAMP SCREW
