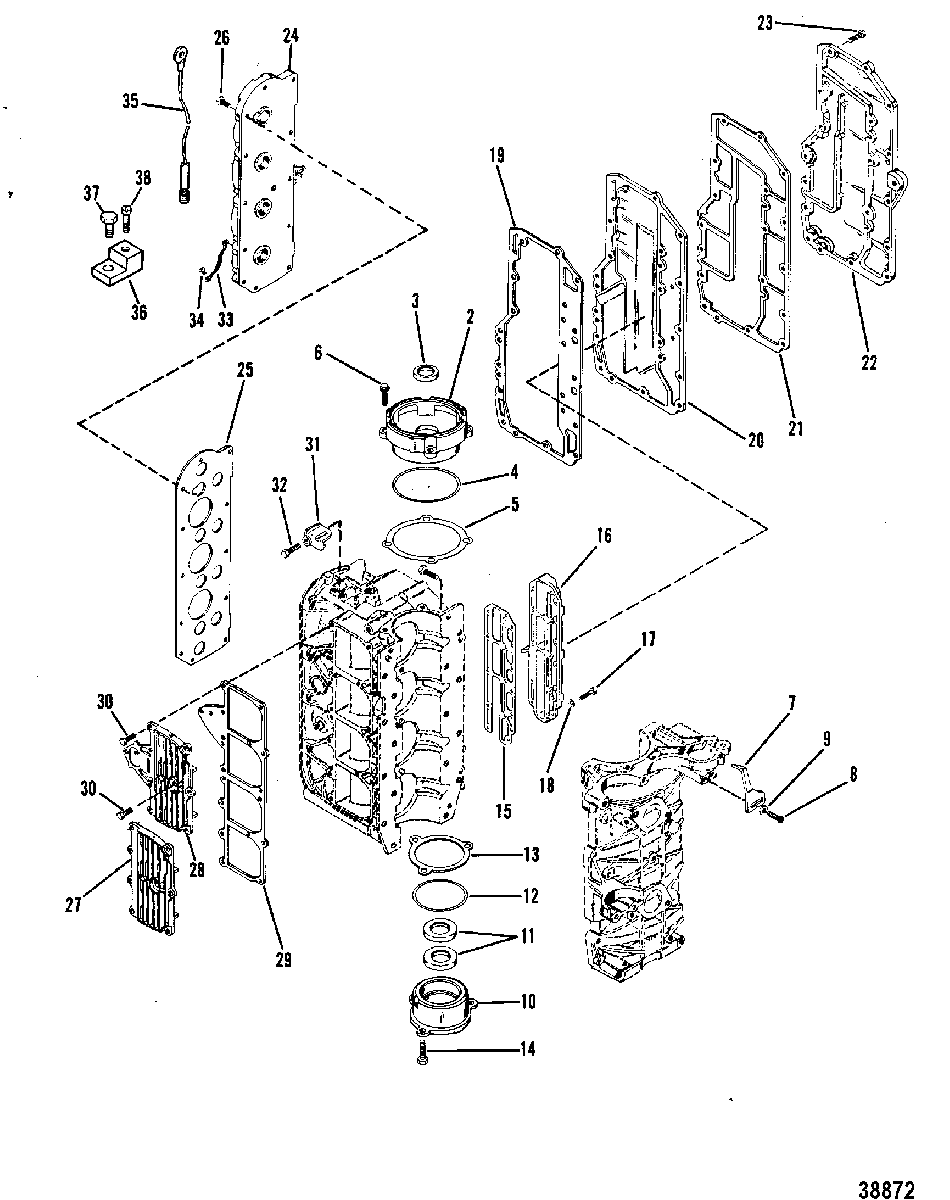

END CAPS, MANIFOLD AND EXHAUST COVER для Mariner - 75 (4 CYL.) 7208573 & Up

  • №
    Артикул
    Название
  • 2
    1161-5940A2 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 3
    26-41953 SEAL
    SEAL
  • 4
    25-47254 O-RING
    O-RING
  • 5
    15-73644A1 SHIM, END CAP TO CRANKCASE (.006-10)
    SHIM, END CAP TO CRANKCASE (.006-10)
  • 6
    10-812618 SCREW, UPPER END CAP (1")
    SCREW, UPPER END CAP (1")
  • 7
    43352 POINTER, TIMING
    POINTER, TIMING
  • 8
    10-65746 SCREW, (.250-20 x .75), TIMING POINTER (3/4")
    SCREW, (.250-20 x .75), TIMING POINTER (3/4")
  • 9
    12-20533 WASHER, TIMING POINTER SCREW
    WASHER, TIMING POINTER SCREW
  • 10
    1148-5410T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 11
    26-41953 SEAL
    SEAL
  • 12
    25-32546 O-RING
    O-RING
  • 13
    15-20085A1 SHIM SET, END CAP TO CRANKCASE (.005-10)
    SHIM SET, END CAP TO CRANKCASE (.005-10)
  • 14
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)
    SCREW AND LOCKWASHER, (.312-18 x 1.00)
  • 15
    27-73665 GASKET, WATER JACKET COVER
    GASKET, WATER JACKET COVER
  • 16
    76198 COVER, WATER JACKET-CYLINDER BLOCK
    COVER, WATER JACKET-CYLINDER BLOCK
  • 17
    10-53167T SCREW, (.312-18 x .880), WATER JACKET COVER
    SCREW, (.312-18 x .880), WATER JACKET COVER
  • 18
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, WATER JACKET COVER SCREW
    WASHER, (.323 x .563 x .063) Stainless Steel, WATER JACKET COVER SCREW
  • 19
    27-854981 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 20
    73436 PLATE, BAFFLE
    PLATE, BAFFLE
  • 21
    27-854961 GASKET, BAFFLE PLATE TO EXHAUST COVER
    GASKET, BAFFLE PLATE TO EXHAUST COVER
  • 22
    78277A1 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 23
    10-53576 SCREW, (.312-18 x 1.125), MANIFOLD COVER
    SCREW, (.312-18 x 1.125), MANIFOLD COVER
  • 24
    1021-8340 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 25
    27-961711 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 26
    10-76630 SCREW, CYLINDER BLOCK COVER (1")
    SCREW, CYLINDER BLOCK COVER (1")
  • 27
    733201 COVER, TRANSFER PORT-TOP
    (TRIANGLE FUEL PUMP)
    COVER, TRANSFER PORT-TOP
    (TRIANGLE FUEL PUMP)
  • 27
    14429A1 COVER, TRANSFER PORT-TOP
    (SQUARE FUEL PUMP)
    COVER, TRANSFER PORT-TOP
    (SQUARE FUEL PUMP)
  • 28
    87872 COVER, TRANSFER PORT-BOTTOM
    COVER, TRANSFER PORT-BOTTOM
  • 29
    27-73645 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 30
    10-49668 SCREW, (.250-20 x .750), TRANSFER PORT COVER
    SCREW, (.250-20 x .750), TRANSFER PORT COVER
  • 31
    37440 BRACKET, MOUNT SUPPORT-CYLINDER BLOCK
    BRACKET, MOUNT SUPPORT-CYLINDER BLOCK
  • 32
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 33
    46933A3 STRAP ASEMBLY, Ground
    EXHAUST COVER SCREW
    STRAP ASEMBLY, Ground
    EXHAUST COVER SCREW
  • 34
    10-62568 SCREW, (#10-16 x .375), GROUND STRAP
    SCREW, (#10-16 x .375), GROUND STRAP
  • 35
    87-96829A1 SWITCH ASSEMBLY, Temperature
    SWITCH ASSEMBLY, Temperature
  • 36
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 37
    10-62568 SCREW, (#10-16 x .375), TERMINAL BLOCK
    SCREW, (#10-16 x .375), TERMINAL BLOCK
  • 38
    10-72169 SCREW, (#10-24 x .50), TERMINAL BLOCK
    SCREW, (#10-24 x .50), TERMINAL BLOCK
  • -
    27-73645A87 GASKET SET
    GASKET SET
