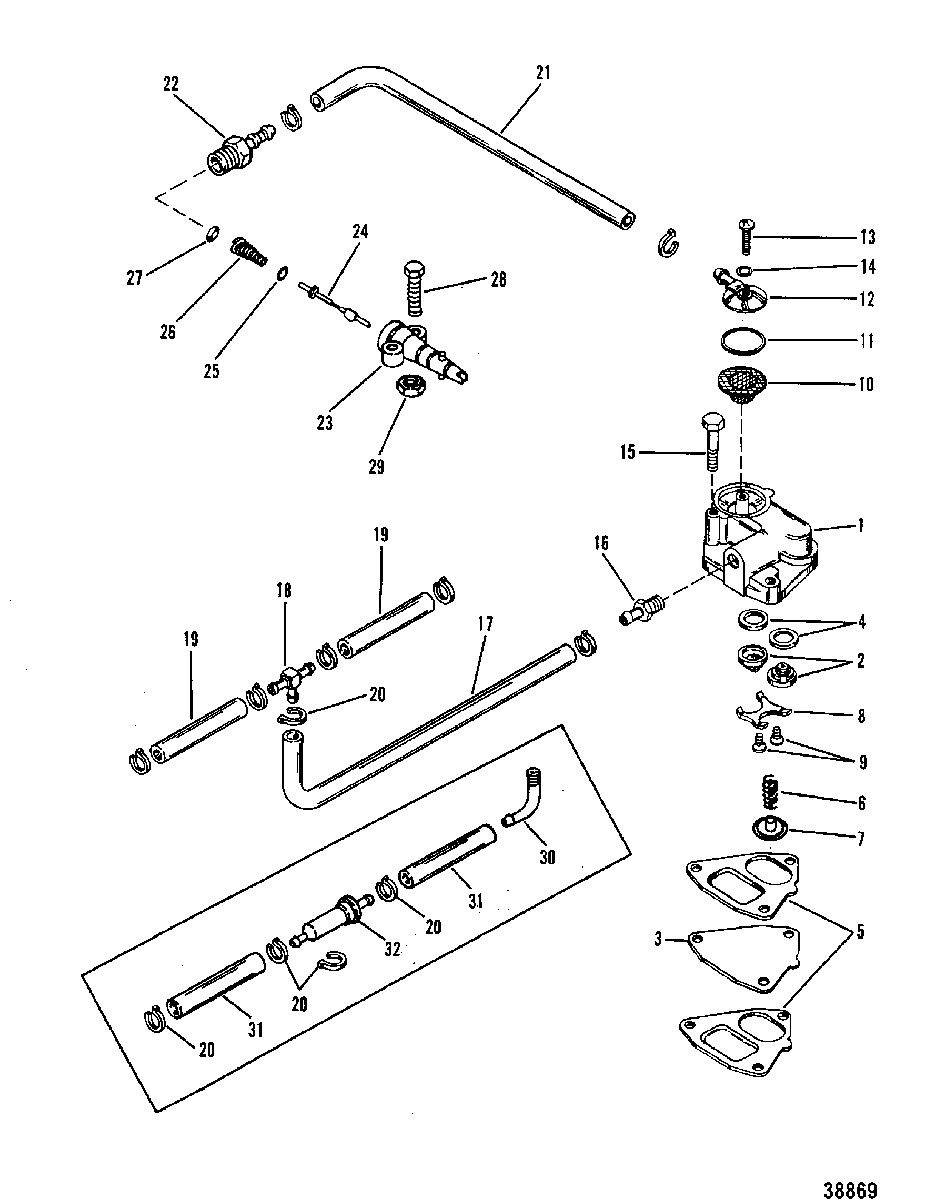

FUEL PUMP AND FUEL LINES(TRIANGLE FUEL PUMP) для Mariner - 75 (4 CYL.) 7208573 & Up

  • №
    Артикул
    Название
  • 1
    73434A5 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-8M0084276 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    55278A5 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 4
    NSS NOT SOLD SEPARATE, GASKET-CHECK VALVE
    NOT SOLD SEPARATE, GASKET-CHECK VALVE
  • 5
    NSS NOT SOLD SEPARATE, GASKET-FUEL PUMP
    NOT SOLD SEPARATE, GASKET-FUEL PUMP
  • 6
    24-86207 SPRING
    SPRING
  • 7
    86252 CAP
    CAP
  • 8
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 9
    10-43725 SCREW, (#6-32 x .380)
    SCREW, (#6-32 x .380)
  • 10
    35-73532 FILTER, Fuel
    FILTER, Fuel
  • 11
    25-35480 O-RING, (1.237 x .103), COVER TO FUEL PUMP
    O-RING, (1.237 x .103), COVER TO FUEL PUMP
  • 12
    35-14805A2 COVER, FUEL FILTER
    COVER, FUEL FILTER
  • 13
    10-37370 SCREW, (#10-32 x .580), COVER TO FUEL PUMP
    SCREW, (#10-32 x .580), COVER TO FUEL PUMP
  • 14
    27-25848 GASKET, COVER SCREW
    GASKET, COVER SCREW
  • 15
    10-70939 SCREW
    (1-7/8")
    SCREW
    (1-7/8")
  • 15
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 16
    22-64705 FITTING, FUEL PUMP
    W/O INLINE FILTER
    FITTING, FUEL PUMP
    W/O INLINE FILTER
  • 17
    32-8M0108355 LINE, (57.00 Inches Bulk), TEE TO FUEL PUMP(11")
    W/O INLINE FILTER
    LINE, (57.00 Inches Bulk), TEE TO FUEL PUMP(11")
    W/O INLINE FILTER
  • 18
    22-73318 TEE, Plastic, FUEL LINE
    TEE, Plastic, FUEL LINE
  • 19
    32-8M0108355 LINE, (57.00 Inches Bulk) (CUT TO 3 INCHES)
    LINE, (57.00 Inches Bulk) (CUT TO 3 INCHES)
  • 20
    54-816311T CLAMP, FUEL LINE
    CLAMP, FUEL LINE
  • 21
    32-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (15")
    LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (15")
  • 22
    22-63187 FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
    FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
  • 23
    30186 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 24
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 25
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 26
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 27
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 28
    10-36154 SCREW, (.250-28 x 1.380)
    SCREW, (.250-28 x 1.380)
  • 29
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 30
    22-19688 FITTING (90 DEG. )
    WITH INLINE FILTER
    FITTING (90 DEG. )
    WITH INLINE FILTER
  • 31
    32-8M0108355 LINE, (57.00 Inches Bulk)
    WITH INLINE FILTER
    LINE, (57.00 Inches Bulk)
    WITH INLINE FILTER
  • 32
    35-816296Q03 FILTER, Fuel
    WITH INLINE FILTER
    FILTER, Fuel
    WITH INLINE FILTER
  • -
    27-73645A87 GASKET SET
    GASKET SET
