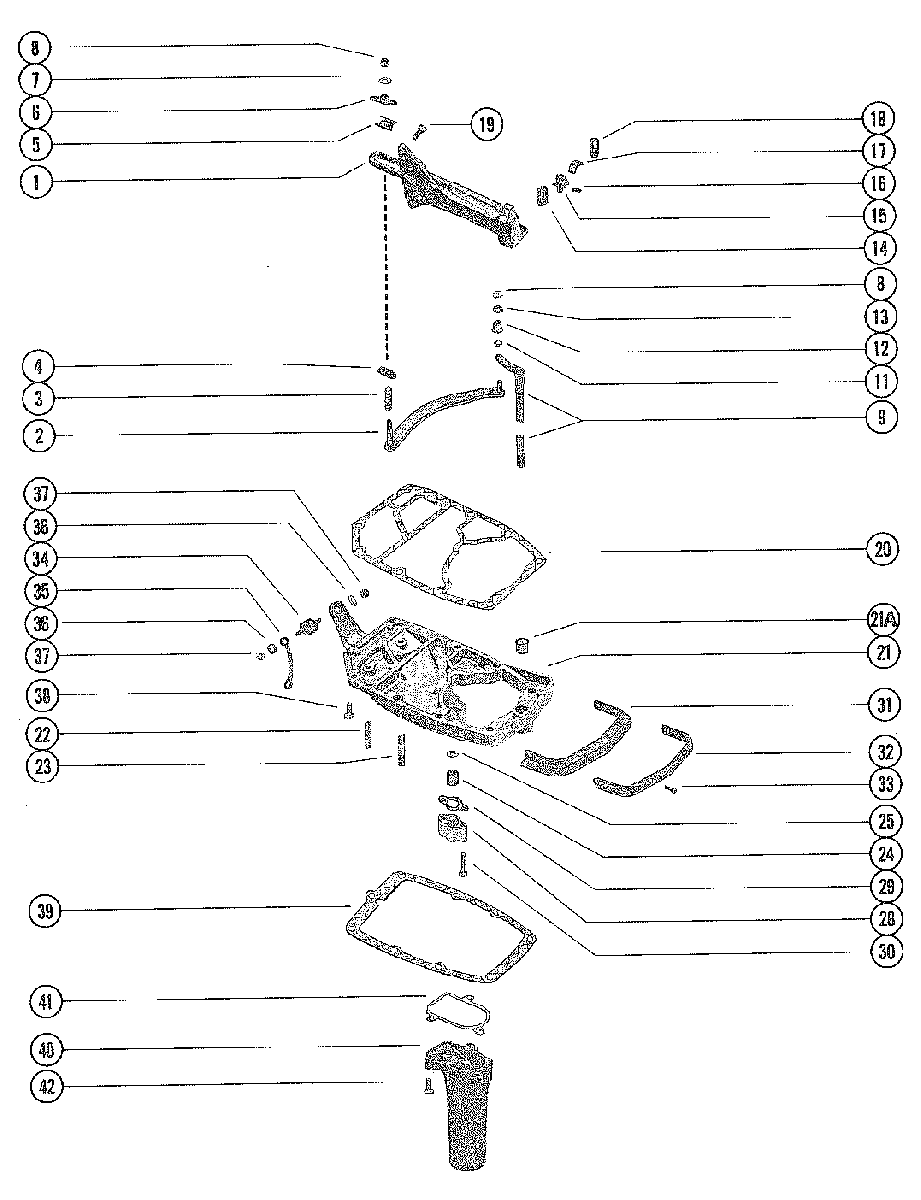

SHIFT LINKAGE AND EXHAUST PLATE для Mariner - 70 5361993 THRU 5702219
-
№АртикулНазвание
-
1814283A2 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
260283A1 LINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKETLINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKET
-
324-20099 SPRING, LINK TO ANCHOR BRACKETSPRING, LINK TO ANCHOR BRACKET
-
437896 GUIDE BLOCK, LINKGUIDE BLOCK, LINK
-
552100 WEAR PLATE, NYLON - LINKWEAR PLATE, NYLON - LINK
-
68M0036768 LATCH, LINK TO ANCHOR BRACKETLATCH, LINK TO ANCHOR BRACKET
-
712-69056 WASHER, LINK LATCHWASHER, LINK LATCH
-
811-36069 NUT, LINK ATTACHINGNUT, LINK ATTACHING
-
975355A30 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
975355A32 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
1113-29720 WASHER, WAVE - SHIFT SHAFT TO LINKWASHER, WAVE - SHIFT SHAFT TO LINK
-
1223-26600 BUSHING, NYLON - SHIFT SHAFT TO LINKBUSHING, NYLON - SHIFT SHAFT TO LINK
-
1312-35462 WASHER, LINK - SHIFT SHAFT ENDWASHER, LINK - SHIFT SHAFT END
-
1439519 CUP, RETAINER- ANCHOR BRACKETCUP, RETAINER- ANCHOR BRACKET
-
1587609A1 LEVER, NYLON - SHIFT CABLE LOCKINGLEVER, NYLON - SHIFT CABLE LOCKING
-
1617-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
1787609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
1839667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
1910-69101 SCREW, ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8")SCREW, ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8")
-
2027-884511 GASKET, POWERHEAD TO EXHAUST PLATEGASKET, POWERHEAD TO EXHAUST PLATE
-
2179618A3 EXHAUST PLATE ASSEMBLYEXHAUST PLATE ASSEMBLY
-
21A23-27132 BUSHING, NYLON - EXHAUST PLATEBUSHING, NYLON - EXHAUST PLATE
-
2216-8M0034449 STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")
-
2316-68166 STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")
-
2426-38452 SEAL, WATER INLET TUBESEAL, WATER INLET TUBE
-
2512-38453 WASHER, NYLON - WATER INLET TUBE SEALWASHER, NYLON - WATER INLET TUBE SEAL
-
2879799 HOUSING, WATER INLET TUBE SEALHOUSING, WATER INLET TUBE SEAL
-
2927-797971 GASKET, HOUSINGGASKET, HOUSING
-
3010-79798 SCREW, HOUSING TO EXHAUST PLATESCREW, HOUSING TO EXHAUST PLATE
-
3160307 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
3260306 STRIP, RETAINING - EXHAUST PLATE SEALSTRIP, RETAINING - EXHAUST PLATE SEAL
-
3310-62568 SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")
-
3490435 MOUNT, RUBBER - EXHAUST PLATE TO REAR COWL SUPPORTMOUNT, RUBBER - EXHAUST PLATE TO REAR COWL SUPPORT
-
3549651A1 GROUND STRIP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORTGROUND STRIP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORT
-
3612-69057 WASHER, RUBBER MOUNT ATTACHINGWASHER, RUBBER MOUNT ATTACHING
-
3711-8267089 NUT, RUBBER MOUNT TO EXHAUST PLATENUT, RUBBER MOUNT TO EXHAUST PLATE
-
3810-68918 SCREW, EXHAUST PLATE TO CYLINDER BLOCK (1")SCREW, EXHAUST PLATE TO CYLINDER BLOCK (1")
-
3810-28668 SCREW, EXHAUST TO CYLINDER BLOCK (7/8")SCREW, EXHAUST TO CYLINDER BLOCK (7/8")
-
3927-385011 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
4042718 EXHAUST TUBE, ADAPTOREXHAUST TUBE, ADAPTOR
-
4127-602801 GASKET, EXHAUST TUBE TO EXHAUST PLATEGASKET, EXHAUST TUBE TO EXHAUST PLATE
-
4210-28636 SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")
